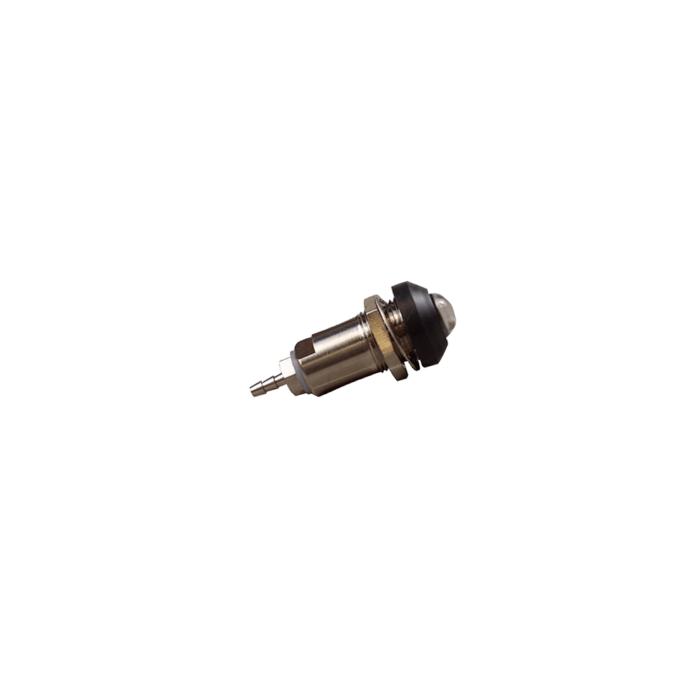

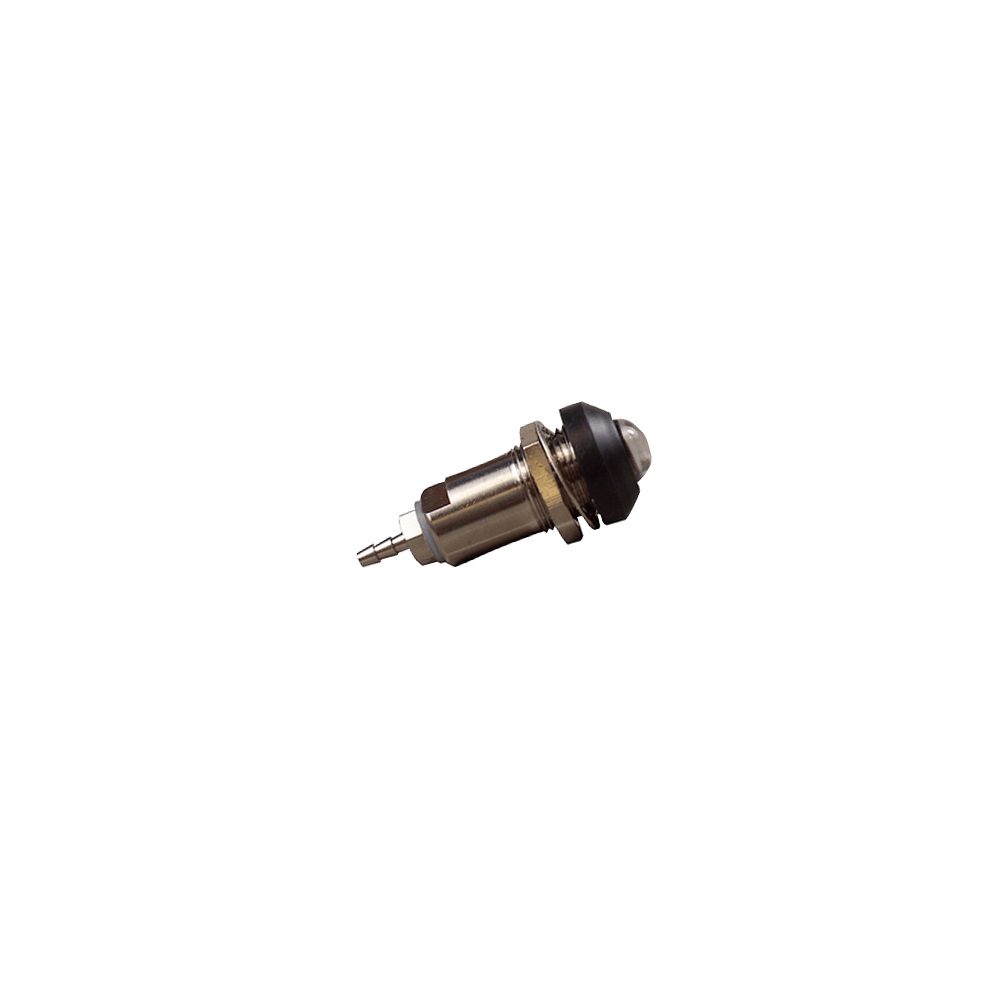

MPI Series – Pressure Indicator

Description

Panel-mountable compact indicator light used to monitor the presence of air pressure. The light will be clear in the absence of pressure, it will be bright when activated by approximately 10 psi. The inlet port size is 1/8” NPT or 1/16” Barb.  The body can be Electroless Nickel-Plated Brass or Aluminum alloy. The panel mount hole is 0.500” and the maximum panel thickness is 0.250”. The panel mount threads are 15/32-32. Maximum operating pressure is 125 psi and the maximum temperature is 140˚ F. The display light is available in red or green and the panel mount bezel is available in black, white, or gray. It is supplied with one Electroless Nickel-Plated panel nut.
