Description

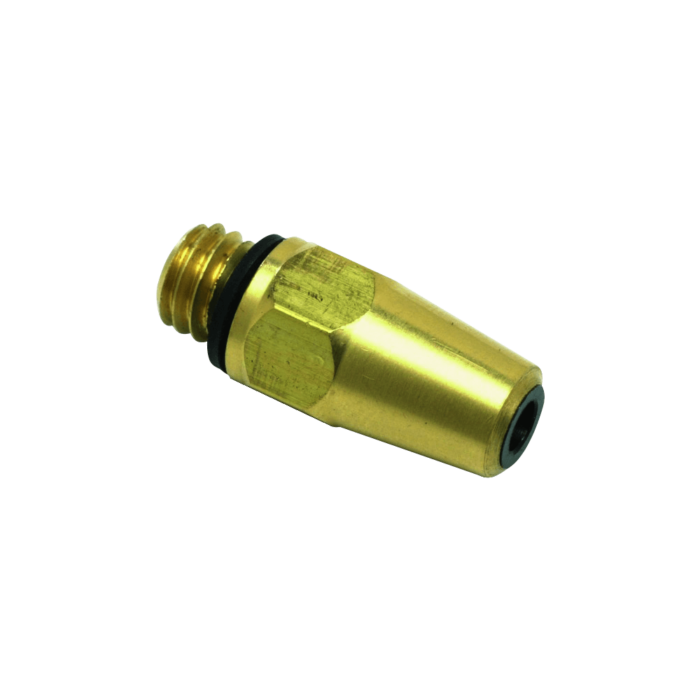

Single pin 5/32” bore pressure indicator made of Brass. When the white pin is extended, the indicator is on. This is a direct mount with male threads of 10-32 UNF and requires a 1/8” NPT mounting hole. The maximum input pressure is 150 psi and is recommended for air only. The minimum actuation pressure is approximately 12 psi. The hex is 1/4″.  40-micron filtration is recommended.




SKUDESCRIPTION
PITC-10 10-32 Male Brass Pressure Indicator
