Description

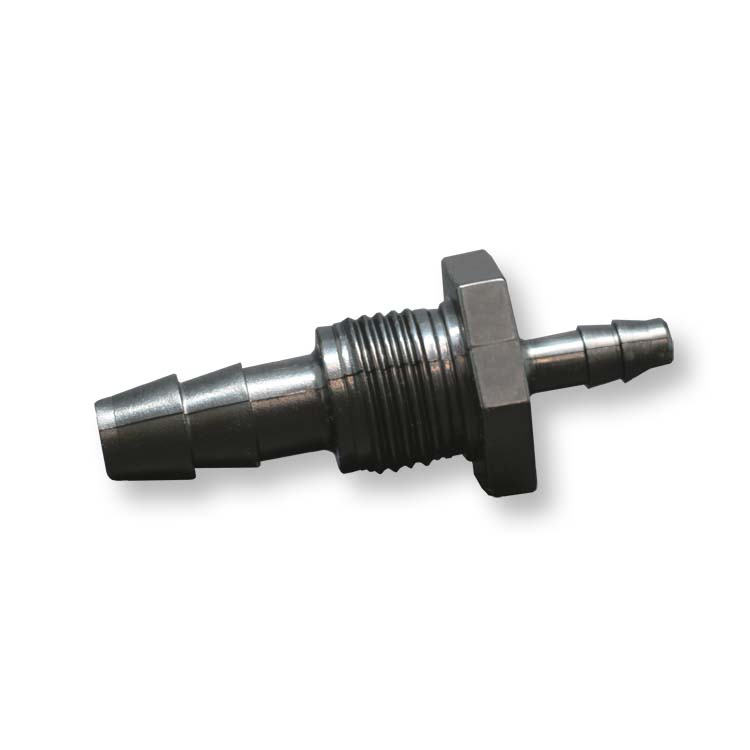

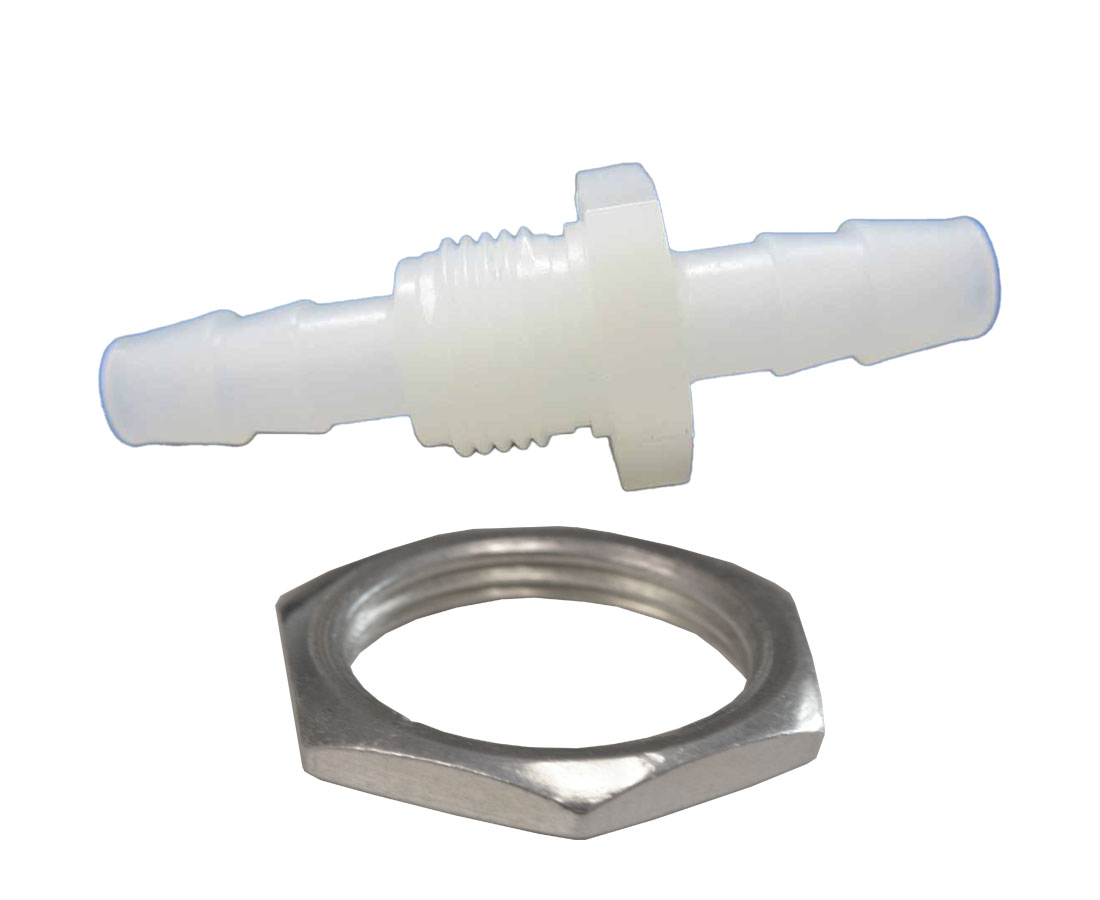

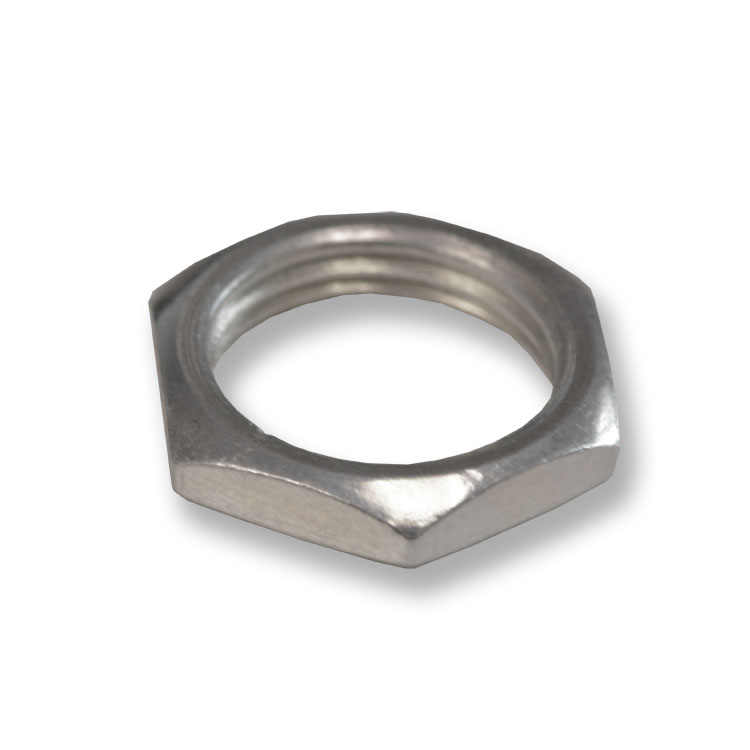

The BHUDC Series Bulkheads are Manufactured by Pneuline Supply, Inc. in-house and offer a unique flatted side for a Greenlee D punch, thus avoiding the possibility for the Bulkhead to turn. Bulkheads are assigned sizes from the outside of the panel to the inside. Available in 1/8 inch, 1/4 inch, and 3/8 inch Hose Barb sizes, or any combination. The 3/8 inch panel fitting does not have a flatted side. Also, the materials available are Natural Nylon, Black Nylon, Polypropylene, PVDF, and Acetal. Zinc-plated nuts are available for Nylon bulkheads, and Nylon nuts are available for all other bulkheads.
| SKU | Description |
|---|---|
| BHUDC-2B2B-BN | 1/8 inch Barb by 1/8 inch Barb Black Nylon Bulkhead |
| BHUDC-2B2B-N | 1/8 inch Barb by 1/8 inch Barb Nylon Bulkhead |
| BHUDC-2B4B-BN | 1/8 inch Barb by 1/4 inch Barb Black Nylon Bulkhead |
| BHUDC-2B4B-N | 1/8 inch Barb by 1/4 inch Barb Nylon Bulkhead |
| BHUDC-2B4B-NK | 1/8 inch Barb by 1/4 inch Barb PVDF Bulkhead |
| BHUDC-4B170-PP | 1/4 inch Barb by .170 Barb Nylon Bulkhead |
| BHUDC-4B4B-BK-PP | 1/4 inch by 1/4 inch Black Polypropylene Bulkhead |
| BHUDC-4B4B-BN | 1/4 inch by 1/4 inch Black Nylon Bulkhead |
| BHUDC-4B4B-BNK-N | 1/4 inch ID by 1/4 inch ID Black Nylon Bulkhead |
| BHUDC-4B4B-N | 1/4 inch Barb by 1/4 inch Barb Nylon Bulkhead |
| BHUDC-4B4B-NK | 1/4 inch Barb by 1/4 inch Barb PVDF Bulkhead |
| BHUDC-4B4B-PP | 1/4 inch Barb Natural Polypropylene Bulkhead |
| BHUDC-4B6B-BN | 1/4 inch Barb by 3/8 inch Barb Black Nylon Bulkhead |
| BHUDC-4B6B-N | 1/4 inch Barb by 3/8 inch Barb Nylon Bulkhead |
| BHUDC-4B6B-PP | 1/4 inch Barb by 3/8 inch Barb Polypropylene Bulkhead |
| BHUDC-6B170B | 3/8 inch Barb by .170 Barb Bulkhead |
| BHUDC-6B170B-N | 3/8 inch Barb by .170 Barb Nylon Bulkhead |
| BHUDC-6B6B-AC | 3/8 inch Barb by 3/8 inch Barb Acetal Bulkhead |
| BHUDC-6B6B-BN | 3/8 inch Barb by 3/8 inch Barb Black Nylon Bulkhead |
| BHUDC-6B6B-N | 3/8 inch Barb Nylon Bulkhead |
| BHUDC-6B6B-PP | 3/8 inch Barb by 3/8 inch Barb Polypropylene Bulkhead |
