Reducing and Equal Barbed Bulkhead
PC-IG Series- Bulkhead
Description

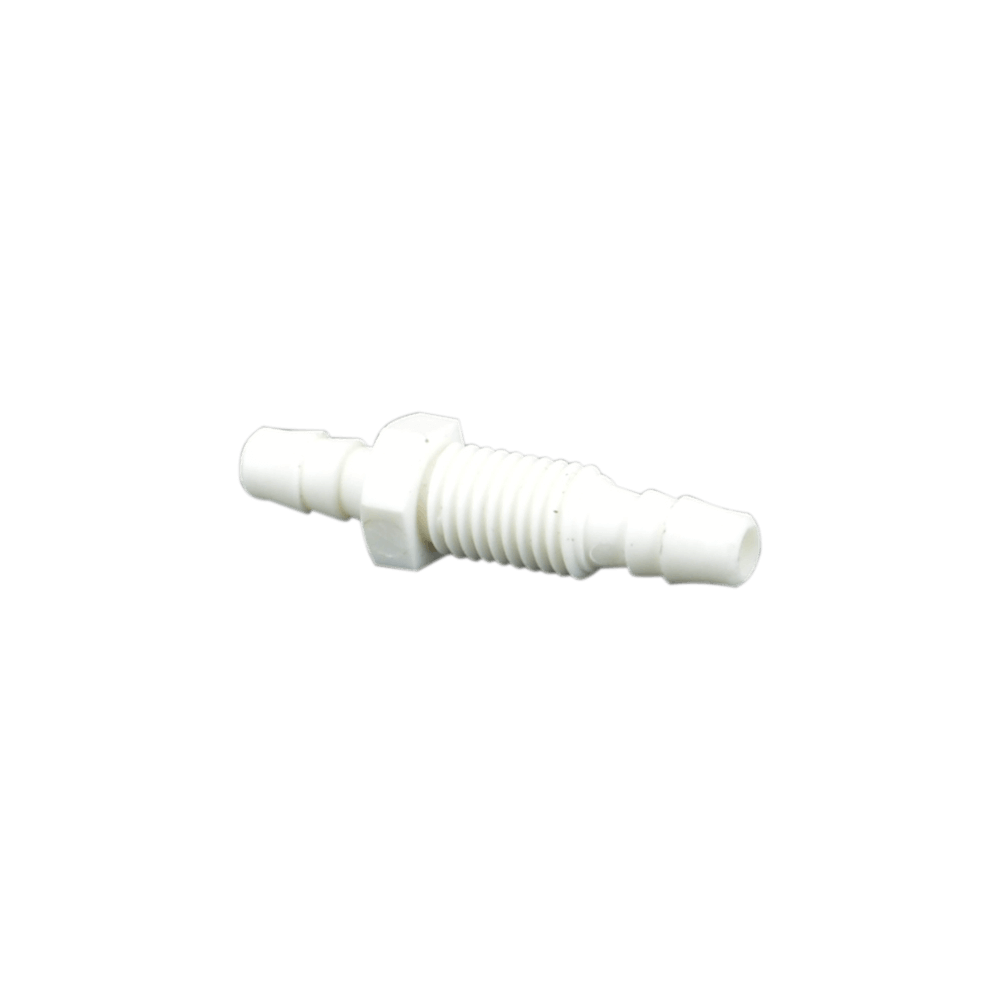

The PC-IG Series is a reducing and equal bulkhead made of Black and White Nylon and Gray Polypropylene. Barb sizes are 1/16”, 1/8”, and .170” ID tubing. In addition, the external threads for panel mounting are 1/4-28” and a nut is supplied. The maximum supply pressure is 125 psi and the working temperature ranges are -50˚ F to 180˚ F for Nylon and -40˚ F to 200˚ F for Polypropylene.
| SKU | DESCRIPTION |
|---|---|
| PC-IG-170B-BN | .170 Barb Black Nylon Bulkhead |
| PC-IG-170B-GYP | .170 Barb Gray Polypropylene Bulkhead |
| PC-IG-170B-WN | .170 Barb White Nylon Bulkhead |
| PC-IG-170BX1B-BN | .170 BY .062 Barb Black Nylon Bulkhead |
| PC-IG-170BX1B-GYP | .170 BY .062 Barb Gray Polypropylene Bulkhead |
| PC-IG-170X1B-WN | .170 BY .062 Barb White Nylon Bulkhead |
| PC-IG-1B-BN | .062 Barb Black Nylon Bulkhead |
| PC-IG-1B-GYP | .062 Barb Gray Polypropylene Bulkhead |
| PC-IG-1B-WN | .062 Barb White Nylon Bulkhead |
| PC-IG-2B-BN | .125 Barb Black Nylon Bulkhead |
| PC-IG-2B-GYP | .125 Barb Gray Polypropylene Bulkhead |
| PC-IG-2B-WN | .125 Barb White Nylon Bulkhead |
| PC-IG-2BX1B-BN | .125 BY .062 Barb Black Nylon Bulkhead |
| PC-IG-2BX1B-GYP | .125 BY .062 Barb Gray Polypropylene Bulkhead |
