Description

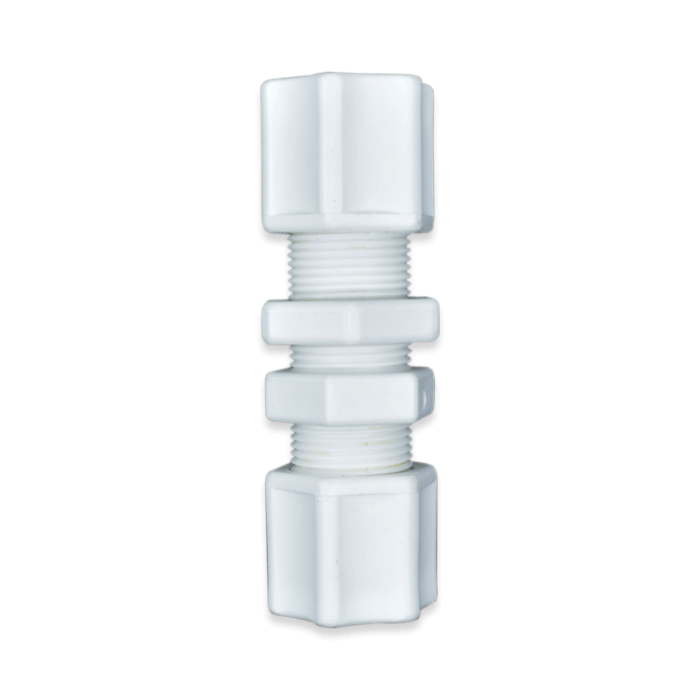

The CB Series Compression Bulkheads allow Air or Fluid lines to be passed through walls for a clean connection for use with tubing ranges of 1/4 inch to 7/8 inch Outside Diameter in tanks and service lines. Available in NSF approved Glass-Filled White Polypropylene, FDA and NSF approved Acetal (POM) for use with hot water applications, FDA and NSF approved Nylon and UV resistant FDA and NSF-rated PVDF. Provided with Poly gripper (except for 1/8 inch units) for us up to 220 psi.
| SKU | Description |
|---|---|
| CB-12-GFPP | 1/2 inch OD Glass-Filled Polypropylene Bulkhead |
| CB-12-KO | 1/2 inch OD PVDF Bulkhead |
| CB-12-PG | 1/2 inch OD Polypropylene Bulkhead with Gripper |
| CB-14-GFPP | 1/4 inch OD Glass-Filled Polypropylene Bulkhead |
| CB-14-K | 1/4 inch OD PVDF Bulkhead |
| CB-14-PG | 1/4 inch OD Polypropylene Bulkhead with Gripper |
| CB-1814R-AC | 1/4 inch Short with 1/8 Cap Acetal Bulkhead |
| CB-1814R-GFPP | 1/4 inch Short with 1/8 Cap Polypropylene Bulkhead |
| CB-1814R-K | 1/4 inch Short with 1/8 Cap PVDF Bulkhead |
| CB-1814R-NN | 1/4 inch Short with 1/8 Cap Natural Nylon Bulkhead |
| CB-34-AC | 3/4 inch OD Acetal Bulkhead |
| CB-34-GFPP | 3/4 inch OD Glass-Filled Polypropylene Bulkhead |
| CB-34-K | 3/4 inch OD PVDF Bulkhead |
| CB-34-NN | 3/4 inch OD Natural Nylon Bulkhead |
| CB-34-PG | 3/4 inch OD Glass-Filled Polypropylene Bulkhead with Gripper |
| CB-38-GFPP | 3/8 inch OD Glass-Filled Polypropylene Bulkhead |
| CB-38-K | 3/8 inch OD PVDF Bulkhead |
| CB-38-PG | 3/8 inch OD Polypropylene Bulkhead with Gripper |
| CB-516-GFPP | 5/16 inch OD Glass-Filled Polypropylene Bulkhead |
| CB-516-K | 5/16 inch OD PVDF Bulkhead |
| CB-516-PG | 5/16 inch OD Polypropylene Bulkhead with Gripper |
| CB-78-AC | 7/8 inch OD Acetal Bulkhead |
| CB-78-GFPP | 7/8 inch OD Glass-Filled Polypropylene Bulkhead |
| CB-78-K | 7/8 inch OD PVDF Bulkhead |
| CB-78-NN | 7/8 inch OD Natural Nylon Bulkhead |
| CB-78-PG | 7/8 inch OD Polypropylene Bulkhead with Gripper |
