Description

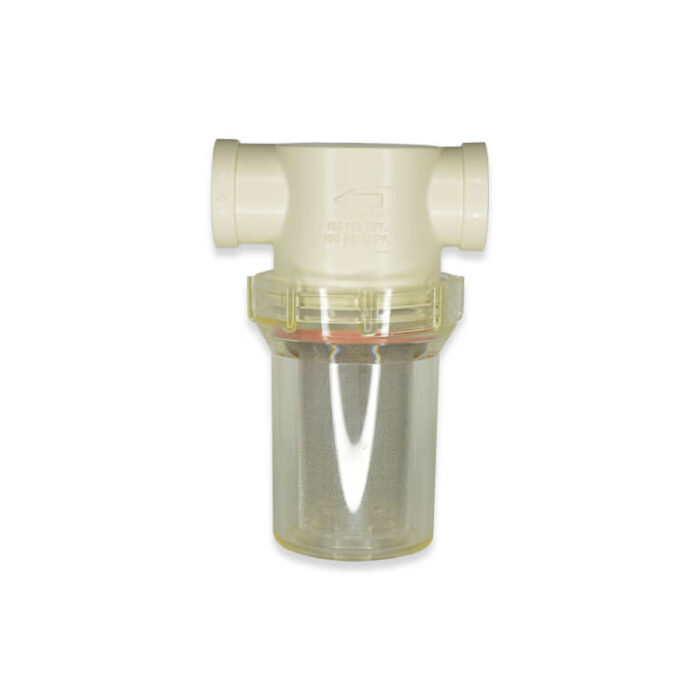

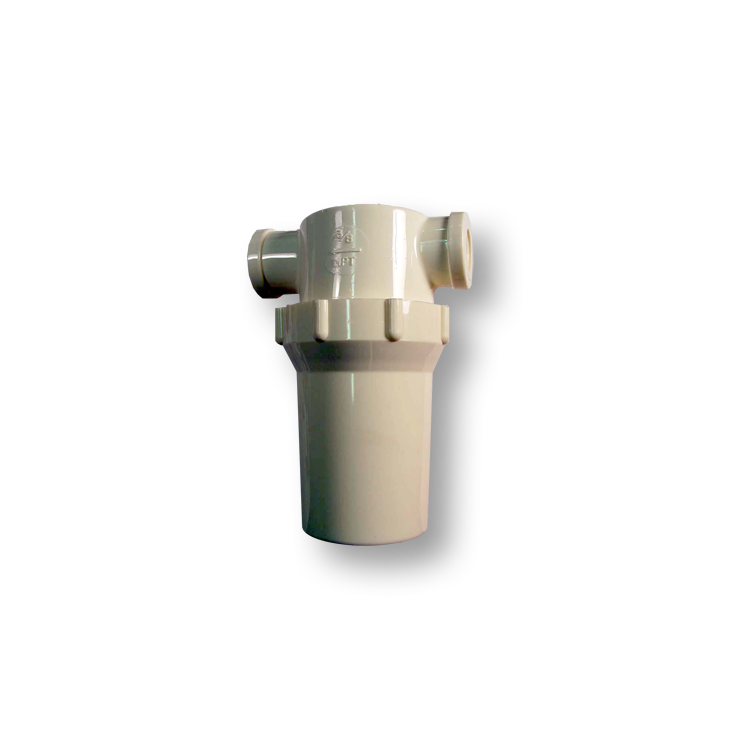

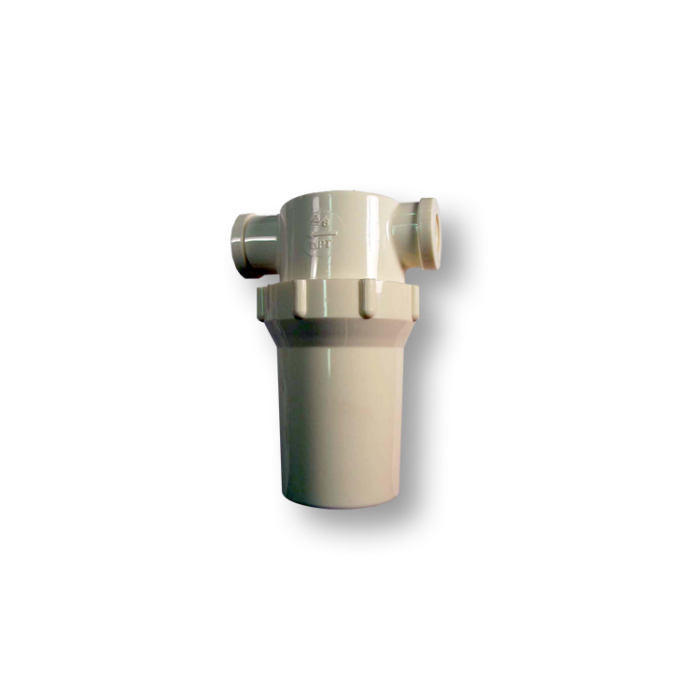

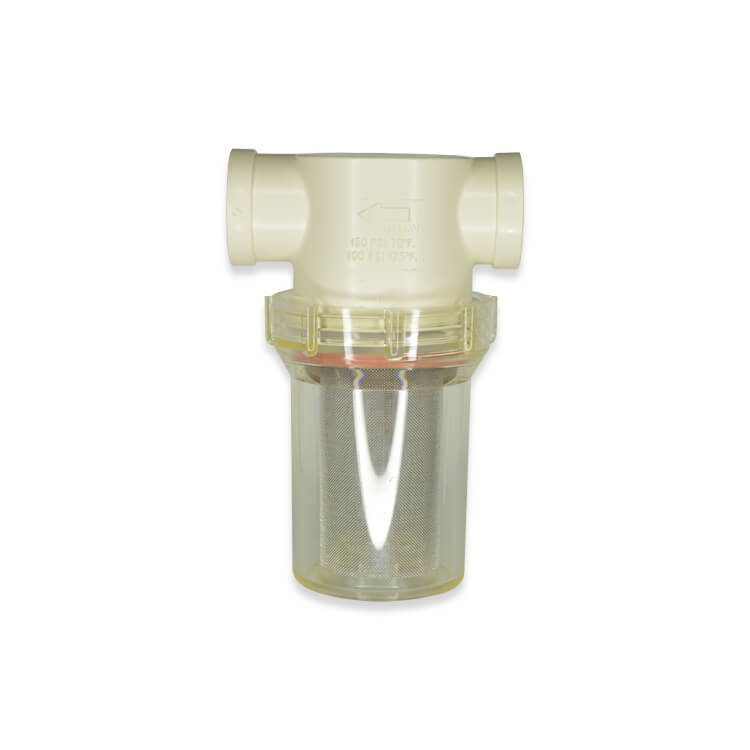

The SF Series are plastic Bowl Filters that are 5.35 inches tall. These bowl filters have a standard configuration of a Nylon top and a clear Nylon bowl, an EPDM gasket, and your selection of a mesh screen. Optional screens are 20, 40, 80, 100, and 250 mesh 303 Stainless Steel and a 90-micron polyethylene filter. Available female NPT thread sizes are 3/8 inch, 1/2 inch, 3/4 inch, and 1 inch. Used in agriculture, dental, medical, and semi-conductor and vacuum applications for water and chemicals. Not for potable water.
| SKU | Description |
|---|---|
| SF-12F-NNC-B-10 | 3/4 inch Female Nylon Clear Bowl 10 Micron |
| SF-12F-NNC-E-40 | 3/4 inch Female Nylon Clear Bowl EPDM-40 |
| SF-12F-PP-E-80 | 3/4 inch Female Polypropylene E 80 Mesh Filter |
| SF-1F-NNC-E-20 | 1 inch F Nylon Clear Bowl EPDM-20 |
| SF-1F-NNC-E-40 | 1 inch Female Nylon Clear Bowl EPDM-40 |
| SF-38F-NC-E-80 | 3/8 inch FNPT Nylon Clear Bowl EPDM-80 |
| SF-6F-NNC-B-10 | 3/8 inch Female Filter Nylon Clear Bowl 10 Micron |
| SF-6F-NNC-E-40 | 3/8 inch Female Nylon Clear Bowl EPDM-40 |
| SF-6F-NNC-E-70PE | 3/8 inch Female Nylon Clear Bowl EPDM 70 Micron |
| SF-6F-NNC-E-80 | 3/8 inch Female Nylon Clear Bowl EPDM 80 Mesh |
| SF-8F-NNC-E-40 | 1/2 inch Female Nylon Clear Bowl EPDM-40 |
| SF-8F-PC-E-40 | 1/2 inch Female Polypropylene Clear Bowl E 40 Mesh Filter |
| SF-8F-PP-E-20 | 1/2 inch Female Polypropylene E 20 Mesh Filter |
