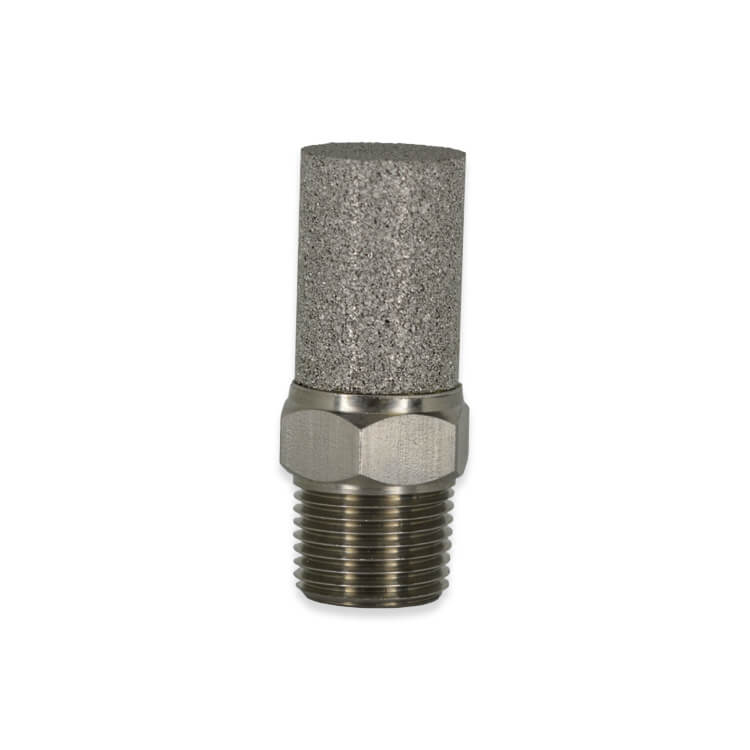

Threaded Hex Nut Muffler
VTS Series
Description
This Muffler is made with a 303 Stainless Steel body which makes it resistant to atmospheric corrosion, sterilization solutions, and a wide variety of inorganic chemicals. It has a standard male pipe thread of 10-32” UNF threads and 1/8”, 1/4″, 3/8”, 1/2″, 3/4″ and 1” NPT threads. The maximum operating pressure is 300 psi and the operating temperature range is 35˚ F to 392˚ F. It is equipped with a 316 Stainless Steel 70-micron filter screen. The Muffler can be used for gasoline, several chemical solutions, oil and air exhaust as well as intake filtering.
| SKU | DESCRIPTION |
|---|---|
| VTS-10-70 | 10-32 UNF 70 Micron Stainless Steel Muffler |
| VTS-2-70 | 1/8 MNPT 70 Micron Stainless Steel Muffler |
