Description

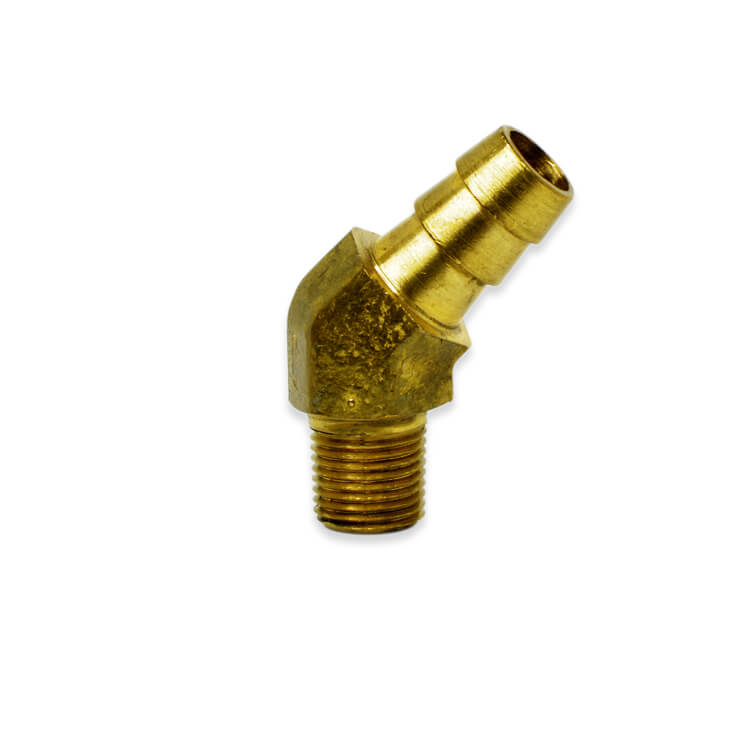

The BHME45 Series is a Forged Brass multi-barbed 45° Elbow with male NPT threads. Flow can be equal or reduced. The temperature range is -40˚ F to 160˚ F and the working pressure is 150 psi. Furthermore, the Barstock is optional for the sizes shown below.
| SKU | Description |
|---|---|
| BHME45-2M6B | 1/8 inch MNPT by 3/8 inch Brass Multi-Barbed 45 Degree Elbow Adapter |
| BHME45-2M4B | 1/8 inch MNPT by 1/4 inch Brass Multi-Barbed 45 Degree Elbow Adapter |
| BHME45-4M4B | 1/4 inch MNPT by 1/4 inch Brass Multi-Barbed 45 Degree Elbow Adapter |
| BHME45-4M4B-B | 1/4 inch MNPT by 1/4 inch Brass Multi-Barbed 45 Degree Barstock Elbow Adapter |
| BHME45-4M6B | 1/4 inch MNPT by 3/8 inch Brass Multi-Barbed 45 Degree Elbow Adapter |
| BHME45-4M8B | 1/4 inch MNPT by 1/2 inch Brass Multi-Barbed 45 Degree Elbow Adapter |
| BHME45-6M6B | 3/8 inch MNPT by 3/8 inch Brass Multi-Barbed 45 Degree Elbow Adapter |
| BHME-456M8B | 3/8 inch MNPT by 1/2 inch Brass Multi-Barbed 45 Degree Elbow Adapter |
| BHME-456M10B | 3/8 inch MNPT by 5/8 inch Brass Multi-Barbed 45 Degree Elbow Adapter |
