Description

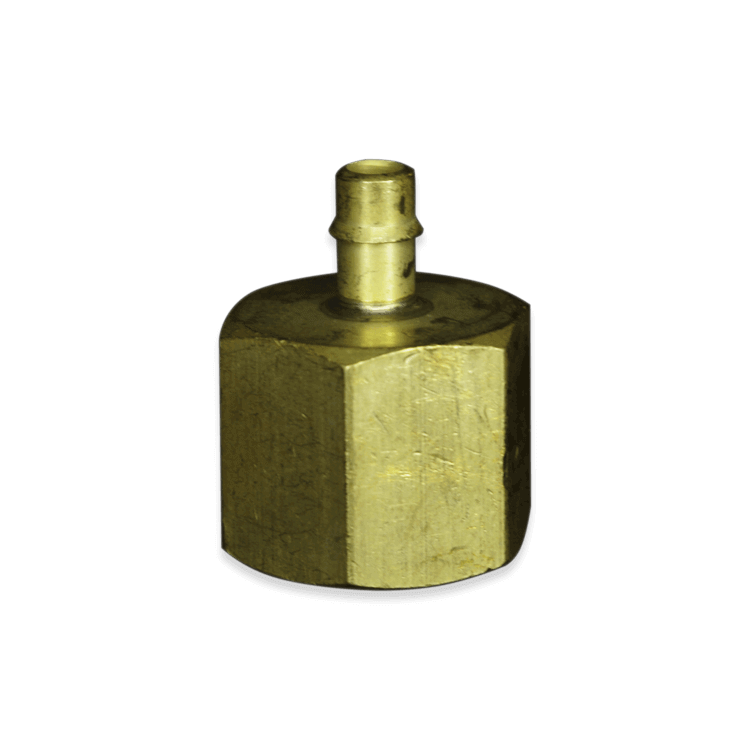

The FA Series is Brass Female NPT by bite-style barb, in sizes ranging from 1/16 inch to 3/8 inch FNPT threads and 3/64 inch to 3/8 inch Barbs. Also available in Nickel Plate, 303 Stainless Steel, and 316 Stainless Steel.
For UNF and SAE Female Threads see FAU Series.
| Description | SKU | SKU | SKU | SKU | Description |
|---|---|---|---|---|---|
| Female National Pipe Thread by Barb, Brass | FNPT by Barb Brass | Female National Pipe Thread by Barb, Nickel plated Brass | Female National Pipe Thread by Barb, 303 SS | Female National Pipe Thread by Barb, 316 SS | Female National Pipe Thread by Barb, Nickel plated |
| 1/16 FNPT by 3/64 Barb | FA-1F364B | FA-1F364B-NP | FA-1F364B-303 | FA-1F364B-SS | 1/16 FNPT by 3/64 Barb |
| 1/16 FNPT by 1/16 Barb | FA-1F1B | FA-1F1B-NP | FA-1F1B-303 | FA-1F1B-SS | 1/16 FNPT by 1/16 Barb |
| 1/16 FNPT by 5/52 Barb, 2MM | FA-1F564B | FA-1F564B-NP | FA-1F564B-303 | FA-1F564B-SS | 1/16 FNPT by 5/52 Barb, 2MM |
| 1/16 FNPT by 3/32 Barb | FA-1F332B | FA-1F332B-NP | FA-1F332B | FA-1F332B-SS | 1/16 FNPT by 3/32 Barb |
| 1/16 FNPT by 1/8 Barb | FA-1F2B | FA-1F2B-NP | FA-1F2B | FA-1F2B-SS | 1/16 FNPT by 1/8 Barb |
| 1/16 FNPT by 5/32 Barb, 4MM | FA-1F532B | FA-1F532B-NP | FA-1F532B | FA-1F532B-SS | 1/16 FNPT by 5/32 Barb, 4MM |
| 1/16 FNPT by .170 Barb | FA-1F170B | FA-1F170B-NP | FA-1F170B | FA-1F170B-SS | 1/16 FNPT by .170 Barb |
| 1/16 FNPT by 3/16 Barb | FA-1F3B | FA-1F3B-NP | FA-1F3B | FA-1F3B-SS | 1/16 FNPT by 3/16 Barb |
| 1/16 FNPT by 7/32 Barb | FA-1F732B | FA-1F732B-NP | FA-1F732B | FA-1F732B-SS | 1/16 FNPT by 7/32 Barb |
| 1/16 FNPT by 15/64 Barb, 6MM | FA-1F1564B | FA-1F1564B-NP | FA-1F1564B | FA-1F1564B-SS | 1/16 FNPT by 15/64 Barb, 6MM |
| 1/16 FNPT by 1/4 Barb | FA-1F4B | FA-1F4B-NP | FA-1F4B | FA-1F4B-SS | 1/16 FNPT by 1/4 Barb |
| 1/16 FNPT by 5/16 Barb, 8MM | FA-1F516B | FA-1F516B-NP | FA-1F516B | FA-1F516B | 1/16 FNPT by 5/16 Barb, 8MM |
| 1/16 FNPT by 3/8 Barb | FA-1F6B | FA-1F6B-NP | FA-1F6B | FA-1F6B | 1/16 FNPT by 3/8 Barb |
| 1/8 inch FNPT by .Barb | FA-2F078B | FA-2F078B | FA-2F078B | FA-2F078B | 1/8 inch FNPT by .Barb |
| 1/8 FNPT by 3/64 Barb | FA-2F364B | FA-2F364B | FA-2F364B | FA-2F364B | 1/8 FNPT by 3/64 Barb |
| 1/8 inch FNPT by 1/16 Barb | FA-2F1B | FA-2F1B | FA-2F1B | FA-2F1B | 1/8 inch FNPT by 1/16 Barb |
| 1/8 FNPT by 5/64 Barb, 2MM | FA-2F564B | FA-2F564B | FA-2F564B | FA-2F564B | 1/8 FNPT by 5/64 Barb, 2MM |
| 1/8 inch FNPT by 3/32 inch Barb | FA-2F332B | FA-2F332B | FA-2F332B | FA-2F332B | 1/8 inch FNPT by 3/32 inch Barb |
| 1/8 inch FNPT by 1/8 Barb | FA-2F2B | FA-2F2B | FA-2F2B | FA-2F2B | 1/8 inch FNPT by 1/8 Barb |
| 1/8 inch FNPT by 5/32 inch Barb, 4MM | FA-2F532B | FA-2F532B | FA-2F532B | FA-2F532B | 1/8 inch FNPT by 5/32 inch Barb, 4MM |
| 1/8 inch FNPT by .170 Barb | FA-2F170B | FA-2F170B | FA-2F170B | FA-2F170B | 1/8 inch FNPT by .170 Barb |
| 1/8 inch FNPT by 3/16 inch Barb Brass | FA-2F3B | FA-2F3B | FA-2F3B | FA-2F3B | 1/8 inch FNPT by 3/16 inch Barb Brass |
| 1/8 inch FNPT by 7/32 Barb | FA-2F732B | FA-2F732B | FA-2F732B | FA-2F732B | 1/8 inch FNPT by 7/32 Barb |
| 1/8 FNPT by 15/64 Barb, 6MM | FA-2F1564B | FA-2F1564B | FA-2F1564B | FA-2F1564B | 1/8 FNPT by 15/64 Barb, 6MM |
| 1/8 inch FNPT by 1/4 Barb | FA-2F4B | FA-2F4B | FA-2F4B | FA-2F4B | 1/8 inch FNPT by 1/4 Barb |
| 1/8 inch FNPT by 5/16 Barb, 8MM | FA-2F5B | FA-2F5B | FA-2F5B | FA-2F5B | 1/8 inch FNPT by 5/16 Barb, 8MM |
| 1/8 inch FNPT by 3/8 Barb | FA-2F6B | FA-2F6B | FA-2F6B | FA-2F6B | 1/8 inch FNPT by 3/8 Barb |
| 1/4 FNPT by 3/64 Barb | FA-4F364B | FA-4F364B | FA-4F364B | FA-4F364B | 1/4 FNPT by 3/64 Barb |
| 1/4 inch FNPT by 1/16 Barb | FA-4F1B | FA-4F1B | FA-4F1B | FA-4F1B | 1/4 inch FNPT by 1/16 Barb |
| 1/4 inch FNPT by 5/64 Barb, 2MM | FA-4F564B | FA-4F564B | FA-4F564B | FA-4F564B | 1/4 inch FNPT by 5/64 Barb, 2MM |
| 1/4 inch FNPT by 1/8 Barb | FA-4F2B | FA-4F2B | FA-4F2B | FA-4F2B | 1/4 inch FNPT by 1/8 Barb |
| 1/4 FNPT by 5/32 Barb, 4MM | FA-4F532B | FA-4F532B | FA-4F532B | FA-4F532B | 1/4 FNPT by 5/32 Barb, 4MM |
| 1/4 inch FNPT by by .170 Barb | FA-4F170B | FA-4F170B | FA-4F170B | FA-4F170B | 1/4 inch FNPT by by .170 Barb |
| 1/4 inch FNPT by 3/16 Barb | FA-4F3B | FA-4F3B | FA-4F3B | FA-4F3B | 1/4 inch FNPT by 3/16 Barb |
| 1/4 inch FNPT by 7/32 Barb | FA-4F732B | FA-4F732B | FA-4F732B | FA-4F732B | 1/4 inch FNPT by 7/32 Barb |
| 1/4 FNPT by 15/64 Barb, 6MM | FA-4F1564B | FA-4F1564B | FA-4F1564B | FA-4F1564B | 1/4 FNPT by 15/64 Barb, 6MM |
| 1/4 inch FNPT by 1/4 Barb | FA-4F4B | FA-4F4B | FA-4F4B | FA-4F4B | 1/4 inch FNPT by 1/4 Barb |
| 1/4 FNPT by 5/16 Barb, 8MM | FA-4F5B | FA-4F5B | FA-4F5B | FA-4F5B | 1/4 FNPT by 5/16 Barb, 8MM |
| 1/4 inch FNPT by 3/8 Barb | FA-4F6B | FA-4F6B | FA-4F6B | FA-4F6B | 1/4 inch FNPT by 3/8 Barb |
| 3/8 FNPT by 3/64 Barb | FA-6F364B | FA-6F364B | FA-6F364B | FA-6F364B | 3/8 FNPT by 3/64 Barb |
| 3/8 inch FNPT by 1/16 Barb | FA-6F1B | FA-6F1B | FA-6F1B | FA-6F1B | 3/8 inch FNPT by 1/16 Barb |
| 3/8 inch FNPT by 5/64 Barb, 2MM | FA-6F564B | FA-6F564B | FA-6F564B | FA-6F564B | 3/8 inch FNPT by 5/64 Barb, 2MM |
| 3/8 inch FNPT by 3/32 Barb | FA-6F332B | FA-6F332B | FA-6F332B | FA-6F332B | 3/8 inch FNPT by 3/32 Barb |
| 3/8 inch FNPT by 1/8 Barb | FA-6F2B | FA-6F2B | FA-6F2B | FA-6F2B | 3/8 inch FNPT by 1/8 Barb |
| 3/8 inch FNPT by 5/32 Barb, 4MM | FA-6F532B | FA-6F532B | FA-6F532B | FA-6F532B | 3/8 inch FNPT by 5/32 Barb, 4MM |
| 3/8 inch FNPT by .170 Barb | FA-6F170B | FA-6F170B | FA-6F170B | FA-6F170B | 3/8 inch FNPT by .170 Barb |
| 3/8 inch FNPT by 3/16 Barb | FA-6F3B | FA-6F3B | FA-6F3B | FA-6F3B | 3/8 inch FNPT by 3/16 Barb |
| 3/8 FNPT by 7/32 Barb | FA-6F732B | FA-6F732B | FA-6F732B | FA-6F732B | 3/8 FNPT by 7/32 Barb |
| 3/8 FNPT by 15/64 Barb, 6MM | FA-6F1564B | FA-6F1564B | FA-6F1564B | FA-6F1564B | 3/8 FNPT by 15/64 Barb, 6MM |
| 3/8 inch FNPT by 1/4 Barb | FA-6F4B | FA-6F4B | FA-6F4B | FA-6F4B | 3/8 inch FNPT by 1/4 Barb |
| 3/8 inch FNPT by 5/16 Barb, 8MM | FA-6F5B | FA-6F5B | FA-6F5B | FA-6F5B | 3/8 inch FNPT by 5/16 Barb, 8MM |
| 3/8 FNPT by 3/8 Barb | FA-6F6B | FA-6F6B | FA-6F6B | FA-6F6B | 3/8 FNPT by 3/8 Barb |
