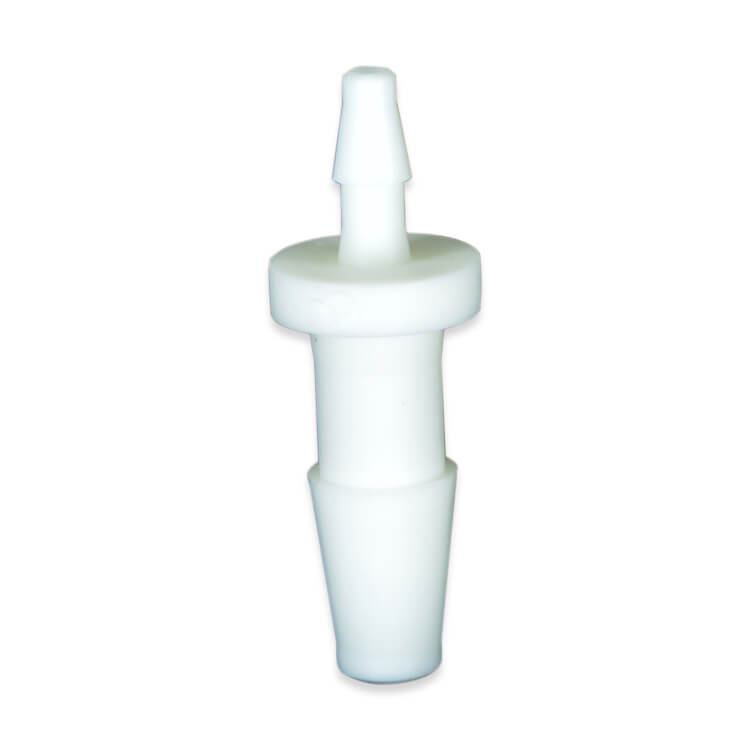

Single Barb Connector and Reducer (No Parting Line)
C-O Series
Description
The C-O Series are original single barbed straight and reducing connectors. These parts have no parting line on the barb. Tubing can be started on the barb before any expansion begins. Also, it will expand the tubing by 43% when completely inserted. Available materials are White Nylon and Natural Polypropylene. In addition, straight barb sizes are 1/16 inch, 3/32 inch, 1/8 inch, 5/32 inch, 3/16 inch, and 1/4 inch. Reducing barb sizes come in combinations ranging from 1/16 inch to 3/8 inch (listed below).
| SKU | Description |
|---|---|
| C-O-2B1B | 1/8 Barb to 1/16 Barb Reducing Connector |
| C-O-332B1B | 3/32 Barb to 1/16 Barb Reducing Connector |
| C-O-332B-2B | 3/32 Barb to 1/8 Barb Reducing Connector |
| C-O-3B1B | 3/16 Barb to 1/16 Barb Reducing Connector |
| C-O-3B2B | 3/16 Barb to 1/8 Barb Reducing Connector |
| C-O-3B332B | 3/16 Barb to 3/32 Barb Reducing Connector |
| C-O-3B532B | 3/16 Barb by 5/32 Barb Reducing Connector |
| C-O-4B2B | 1/4 Barb to 1/8 Barb Reducing Connector |
| C-O-4B3B | 1/4 Barb to 3/16 Barb Reducing Connector |
| C-O-4B532B | 1/4 Barb to 5/32 Barb Reducing Connector |
| C-O-532B1B | 5/32 Barb to 1/16 Barb Reducing Connector |
| C-O-532B2B | 5/32 Barb to 1/8 Barb Reducing Connector |
| C-O-532B332B | 5/32 Barb to 3/32 Barb Reducing Connector |
| C-O-1B | 1/16 Barb Connector |
| C-O-2B | 1/8 Barb Connector |
| C-O-332B | 3/32 Barb Connector |
| C-O-3B | 3/16 Barb Connector |
| C-O-4B | 1/4 Barb Connector |
| C-O-532B | 5/32 Barb Connector |
