Single Barb Connectors and Reducers
CNR Series
Categories: Plastic Barbed Fittings, Plastic Single Barb
Tags: Black Glass-Filled Nylon, C-R, CR-R, Gray PVDF, Natural Nylon, Natural Polypropylene, Natural PVDF, NSF Listed High-Density Polyethylene, Plastic, Reducing Connector, Single Barbed, Single Barbed Straight Connector, Straight Connector, White Polypropylene
Description

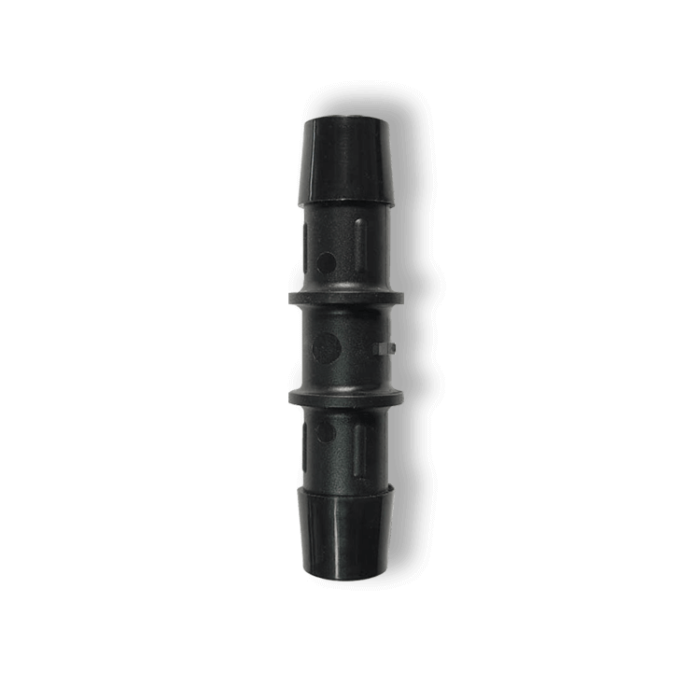

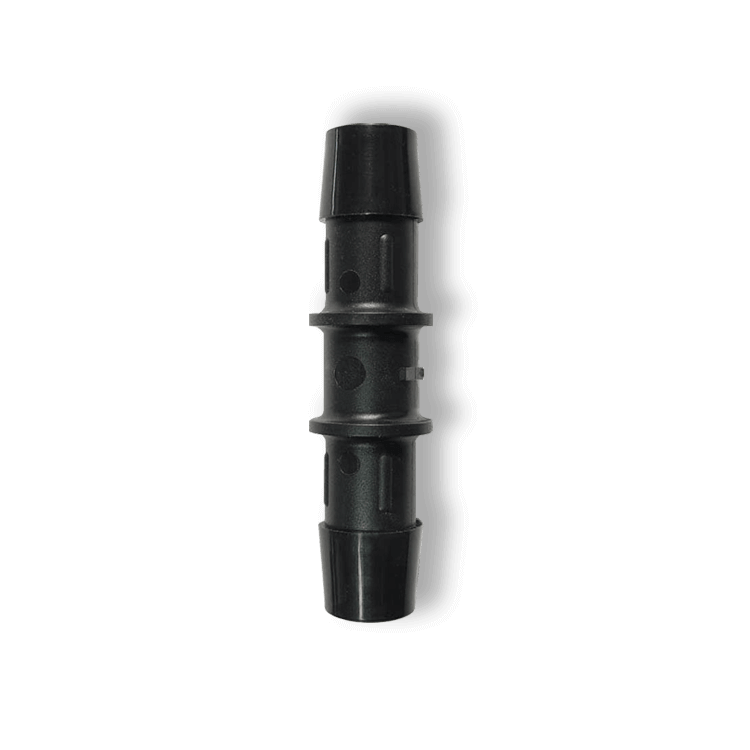

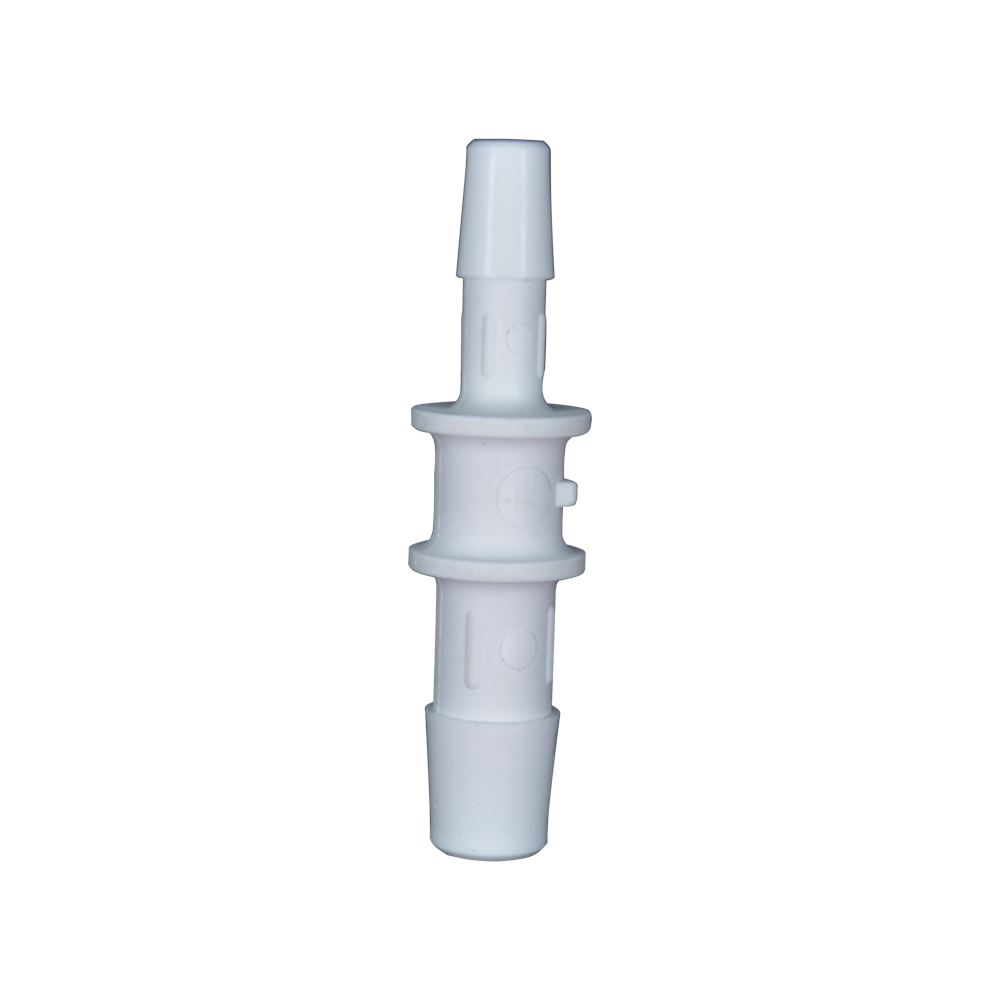

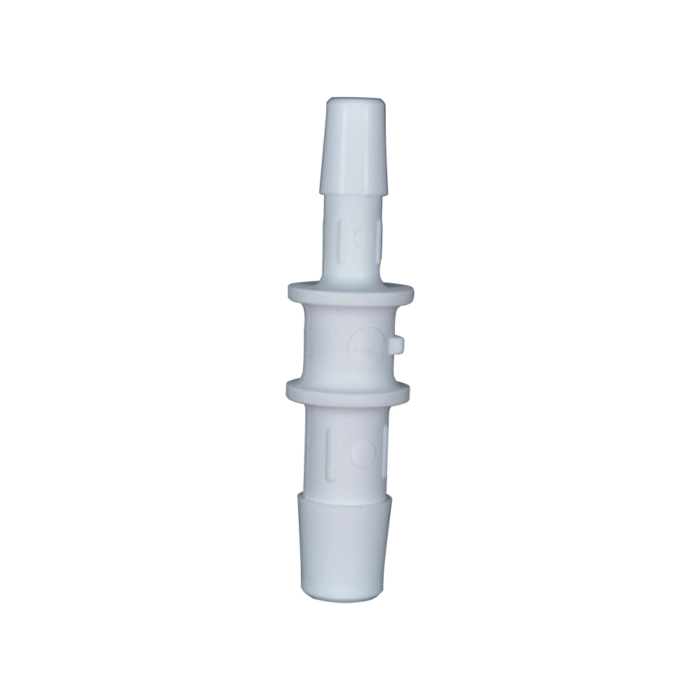

The CNR Series is a series of single barbed straight and reducing connectors. Available materials are Black Glass-Filled and Natural Nylon, White and Natural Polypropylene, Gray and Natural PVDF, and NSF 51/61 listed High-Density Polyethylene. Furthermore, the equal barb sizes include 3/32 inch, 5/32 inch, 3/16 inch, 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, and 1 inch. Reducing barb sizes come in combinations of 1/16 inch, 3/32 inch, 1/8 inch, 5/32 inch, 3/16 inch, 1/4 inch, 5/16 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, and 1 inch.
SKU | Description |
---|---|
CNR-332B1B | 3/32 Single Barb by 1/16 Single Barb Reducer |
CNR-3B2B | 3/16 Single Barb by 1/8 Single Barb Reducer |
CNR-4B2B | 1/4 Single Barb by 1/8 Single Barb Reducer |
CNR-4B332B | 1/4 Single Barb by 3/32 Single Barb Reducer |
CNR-4B3B | 1/4 Single Barb by 1/8 Single Barb Reducer |
CNR-4B532B | 1/4 Single Barb by 5/32 Single Barb Reducer |
CNR-5B4B | 5/16 Single Barb by 1/4 Single Barb Reducer |
CNR-6B4B | 3/8 Single Barb by 1/4 Single Barb Reducer |
CNR-6B5B | 3/8 Single Barb by 5/16 Single Barb Reducer |
CNR-8B4B | 1/2 Single Barb by 1/4 Single Barb Reducer |
CNR-8B5B | 1/2 Single Barb by 5/16 Single Barb Reducer |
CNR-8B6B | 1/2 Single Barb by 3/8 Single Barb Reducer |
CNR-10B4B | 5/8 Single Barb by 1/4 Single Barb Reducer |
CNR-10B5B | 5/8 Single Barb by 5/16 Single Barb Reducer |
CNR-10B6B | 5/8 Single Barb by 3/8 Single Barb Reducer |
CNR-10B8B | 5/8 Single Barb by 1/2 Single Barb Reducer |
CNR-12B10B | 3/4 Single Barb by 5/8 Single Barb Reducer |
CNR-12B6B | 3/4 Single Barb by 3/8 Single Barb Reducer |
CNR-12B8B | 3/4 Single Barb by 1/2 Single Barb Reducer |
CNR-16B10B | 1 inch Single Barb by 5/8 Single Barb Reducer |
CNR-16B12B | 1 inch Single Barb by 3/4 Single Barb Reducer |
CNR-16B8B | 1 inch Single Barb by 1/2 Single Barb Reducer |
CNR-332B | 3/32 Standard Single Barb Connector |
CNR-3B | 3/16 Standard Single Barb Connector |
CNR-4B | 1/4 Standard Single Barb Connector |
CNR-532B | 5/32 Standard Single Barb Connector |
CNR-6B | 3/8 Standard Single Barb Connector |
CNR-8B | 1/2 Standard Single Barb Connector |
CNR-10B | 5/8 Standard Single Barb Connector |
CNR-12B | 3/4 Standard Single Barb Connector |
CNR-16B | 1 inch Standard Single Barb Connector |
