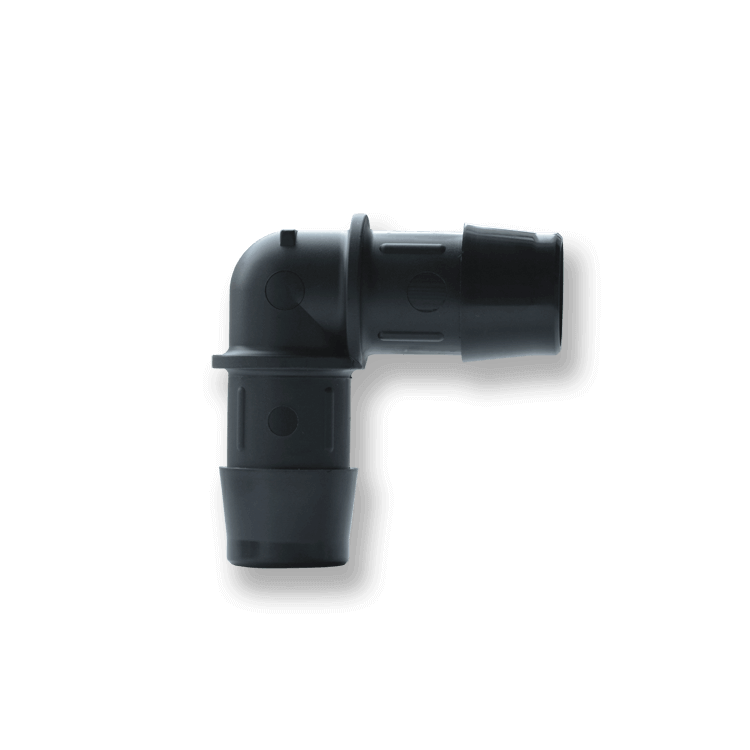

Standard Single Barb Elbow Connector
L-R Connector Series
Description
The L-R Series is a standard, single barbed Elbow connector made of Natural and Black Nylon, Gray PVDF, and NSF 51/61 certified Polyethylene. It is also available in high-density Polyethylene, Natural and White Polypropylene, and Glass-Filled Black Nylon. This elbow is available in equal barbs as well as in a reducing configuration. Equal barb sizes are 1/8 inch, 3/32 inch, 3/16 inch, 1/4 inch, 5/32 inch, 5/16 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, and 1 inch. Reducing sizes are 5/16 inch by 1/4 inch and 1/2 inch by 3/8 inch.
| SKU | Description |
|---|---|
| L-R-2B | 1/8 Barb Elbow |
| L-R-332B | 3/32 Barb Elbow |
| L-R-3B | 3/16 Barb Elbow |
| L-R-4B | 1/4 Barb Elbow |
| L-R-532B | 5/32 Barb Elbow |
| L-R-5B | 5/16 Barb Elbow |
| L-R-6B | 3/8 Barb Elbow |
| L-R-8B | 1/2 Barb Elbow |
| L-R-10B | 5/8 Barb Elbow |
| L-R-12B | 3/4 Barb Elbow |
| L-R-16B | 1 inch Barb Elbow |
| L-R-5B4B | 5/16 by 1/4 Barb Elbow Reducer |
| L-R-8B6B | 1/2 by 3/8 Barb Elbow Reducer |
