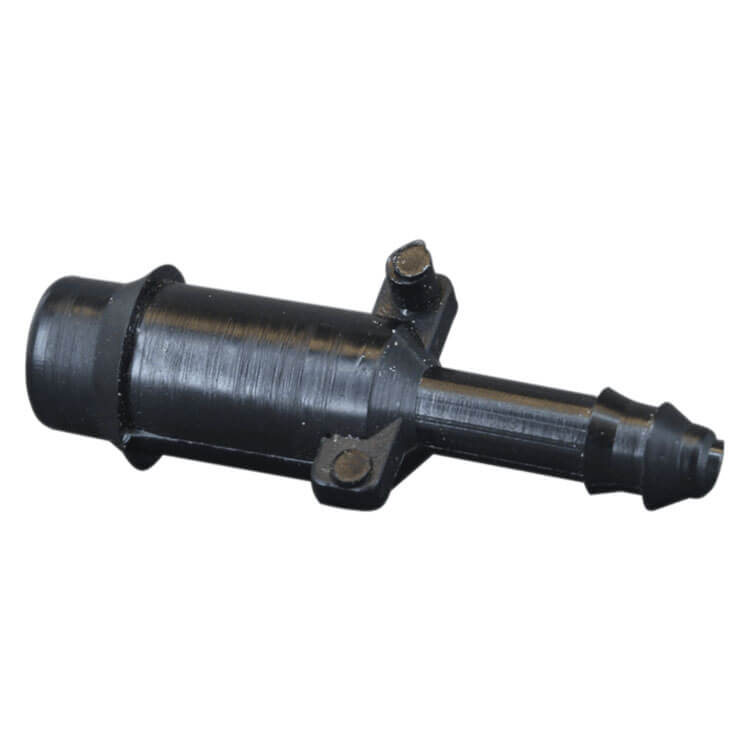

Straight Vacuum Connector
VC-S Series
Description
The VC-S Series are straight vacuum connectors in equal and reducing styles. It is made of Natural or Black Nylon 6/6. Equal barb sizes are 1/8 inch, 3/16 inch, 1/4 inch, 5/16 inch, 3/8 inch, 1/2 inch, and 5/8 inch. In addition, reducing barb sizes are 3/16 inch by 5/32 inch, 1/4 inch by 1/8 inch, 1/4 inch by 3/16 inch, 5/16 inch by 1/4 inch, and 3/8 inch by 1/4 inch. The working temperature range is -20° F to 212° F. These connectors are used for air, liquid, and vapor applications.
| SKU | Description |
|---|---|
| VC-S-2B | 1/8 Barb Vacuum Connector |
| VC-S-3B | 3/16 Barb Vacuum Connector |
| VC-S-4B | 1/4 Barb Vacuum Connector |
| VC-S-5B | 5/16 Barb Vacuum Connector |
| VC-S-6B | 3/8 Barb Vacuum Connector |
| VC-S-8B | 1/2 Barb Vacuum Connector |
| VC-S-10B | 5/8 Barb Vacuum Connector |
| VC-S-3B532BB | 3/16 Barb by 5/32 Barb Vacuum Reducer |
| VC-S-4B2B | 1/4 Barb by 1/8 Barb Vacuum Reducer |
| VC-S-4B3B | 1/4 Barb by 3/16 Barb Vacuum Reducer |
| VC-S-5B4B | 5/16 Barb by 1/4 Barb Vacuum Reducer |
| VC-S-6B4B | 3/8 Barb by 1/4 Barb Vacuum Reducer |
