Description

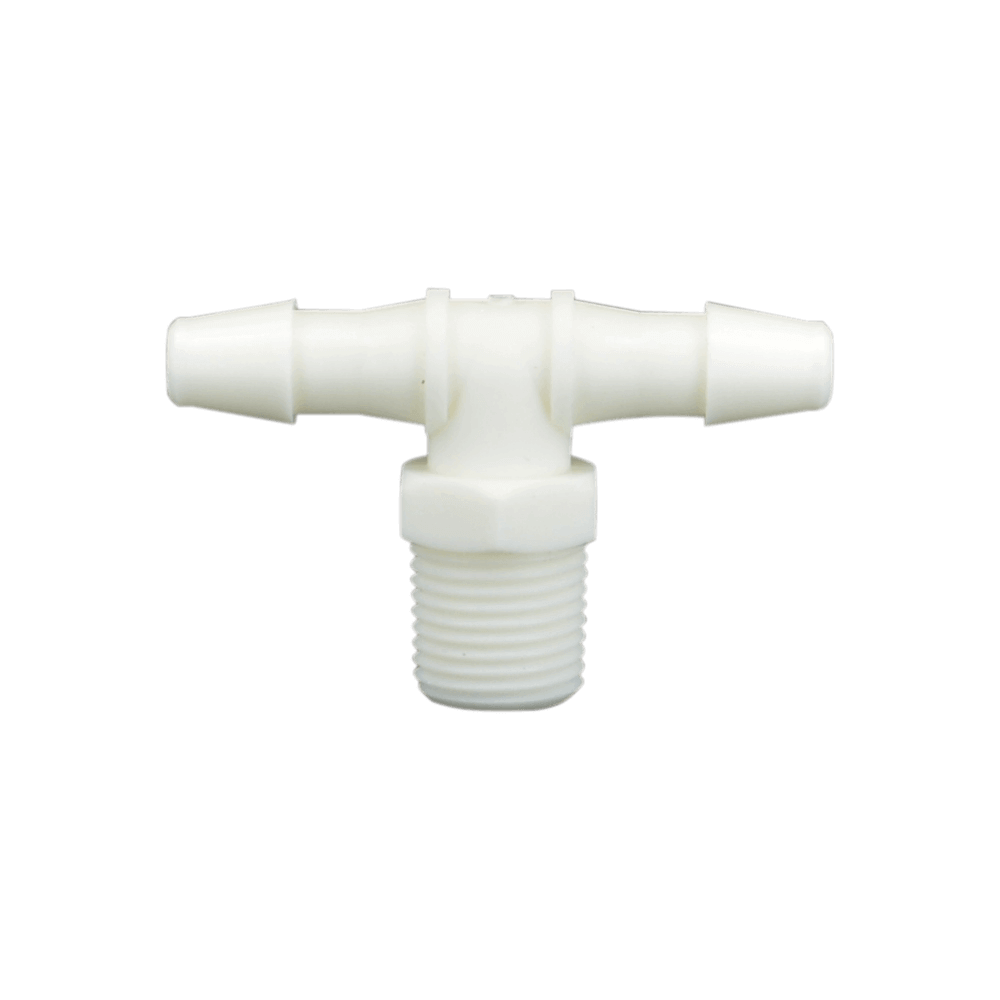

The AT-S Series is an Adapter Tee available in black and white Nylon, black Polypropylene, and PVDF. There are straight male 10-32 UNF threads, male 1/8” NPT threads, and tapered 10-32 UNF threads. The barb sizes are 1/16” 3/32”, 1/8”, 3/16”, and 1/4″.
| SKU | DESCRIPTION |
|---|---|
| AT-S-101B | 10-32 Male UNF by 1/16 Barb Adapter Tee |
| AT-S-102B | 10-32 Male UNF by 1/8 Barb Adapter Tee |
| AT-S-10T1B | 10-32 Taper by 1/16 Adapter Tee |
| AT-S-10T2B | 10-32 Taper by 1/8 Barb Adapter Tee |
| AT-S-10T332B | 10-32 Taper by 3/32 Barb Adapter Tee |
| AT-S-102B | 10-32 Male UNF by 1/8 inch Barb Adapter Tee |
| AT-S-2M3B | 1/8 MNPT by 3/16 Barb Adapter Tee |
