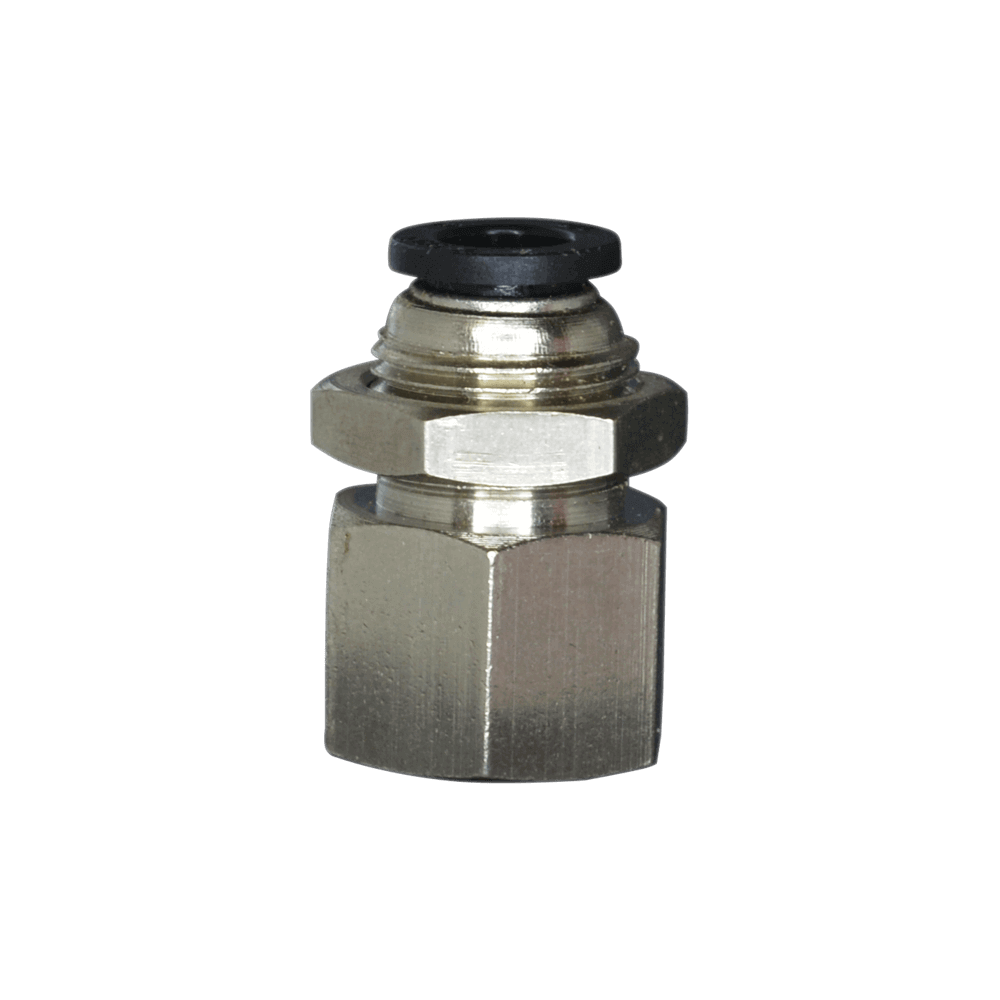

Push-To-Connect Female Union Bulkhead Fitting
PBFC Bulkhead Series
Category: PBT Push To Connects
Tags: Brass, Bulkhead, Fitting, Metal, Push-To-Connect, Union
Description
Push-to-connect female Bulkhead Union fitting with female NPT and BSPT threads. It is made of nickel-plated brass with PBT resin. The working pressure is 150 psi and the temperature range is 32° F to 140° F. It can be used with compressed air and inert gases.
SKU | DESCRIPTION |
---|---|
PBFC-2F-14P | 1/8 FNPT by 1/4 PBT Push-to-Connect Bulkhead |
PBFC-2F-316P | 1/8 FNPT by 3/16 PBT Push-to-Connect Bulkhead |
PBFC-2F-516P | 1/8 FNPT by 5/16 PBT Push-to-Connect Bulkhead |
PBFC-2F-532P | 1/8 FNPT by 5/32 PBT Push-to-Connect Bulkhead |
PBFC-4F-14P | 1/4 FNPT by 1/4 PBT Push-to-Connect Bulkhead |
PBFC-4F-316P | 1/4 FNPT by 3/16 PBT Push-to-Connect Bulkhead |
PBFC-4F-38P | 1/4 FNPT by 3/8 PBT Push-to-Connect Bulkhead |
PBFC-4F-516P | 1/4 FNPT by 5/16 PBT Push-to-Connect Bulkhead |
PBFC-4G6MM-P | 1/4 Female BSPT by 6mm PBT Push-to-Connect Bulkhead |
PBFC-4G8MM-P | 1/4 Female BSPT by 8mm PBT Push-to-Connect Bulkhead |
PBFC-4R6MM-P | 1/4 Female BSPT by 6mm PBT Push-to-Connect Bulkhead |
PBFC-4R8MM-P | 1/4 Female BSPT by 8mm PBT Push-to-Connect Bulkhead |
PBFC-6F-516P | 3/8 FNPT by 5/16 PBT Push-to-Connect Bulkhead |
PBFC-6F-6P | 3/8 FNPT by 3/8 PBT Push-to-Connect Bulkhead |
PBFC-6F-8P | 3/8 FNPT by 1/2 PBT Push-to-Connect Bulkhead |
PBFC-6G6MM-P | 3/8 Female BSPT by 6mm PBT Push-to-Connect Bulkhead |
