Description

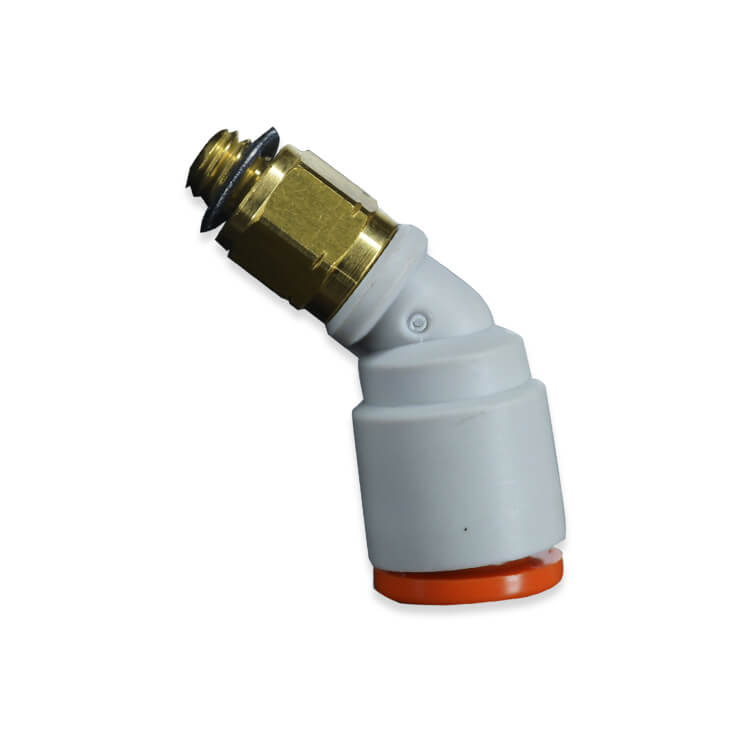

The PEM45 Series is a male push-to-connect fitting configured with a 45˚ elbow. The working pressure is 150 psi and the temperature range is 32˚ F to 140˚ F. Also, the metal body material is Nickel-plated Brass and the resin is PBT. This product is intended for use with compressed air and inert gases.
| SKU | DESCRIPTION |
|---|---|
| PEM45-10U18P | PEM45 10-32 Male UNF by 1/8 OD PBT Elbow |
| PEM45-10U316P | PEM45 10-32 Male UNF by 3/16 OD PBT Elbow |
| PEM45-10U14P | PEM45 10-32 Male UNF by 1/4 OD PBT Elbow |
| PEM45-10U532P | PEM45 10-32 Male UNF by 5/32 OD PBT Elbow |
| PEM45-2M18P | PEM45 1/8 MNPT by 1/8 OD PBT Elbow |
| PEM45-2M316P | PEM45 1/8 MNPT by 3/16 OD PBT Elbow |
| PEM45-2M14P | PEM45 1/8 MNPT by 1/4 OD PBT Elbow |
| PEM45-2M516P | PEM45 1/8 MNPT by 5/16 OD PBT Elbow |
| PEM45-2M532P | PEM45 1/8 MNPT by 5/32 OD PBT Elbow |
| PEM45-2M38P | PEM45 1/8 MNPT by 3/8 OD PBT Elbow |
| PEM45-4M14P | PEM45 1/4 MNPT by 1/4 OD PBT Elbow |
| PEM45-4M516P | PEM45 1/4 MNPT by 5/16 OD PBT Elbow |
| PEM45-4M38P | PEM45 1/4 MNPT by 3/8 OD PBT Elbow |
| PEM45-4M12P | PEM45 1/4 MNPT by 1/2 OD PBT Elbow |
| PEM45-6M14P | PEM45 3/8 MNPT by 1/4 OD PBT Elbow |
| PEM45-6M516P | PEM45 3/8 MNPT by 5/16 OD PBT Elbow |
| PEM45-6M38P | PEM45 3/8 MNPT by 3/8 OD PBT Elbow |
| PEM45-6M12P | PEM45 3/8 MNPT by 1/2 OD PBT Elbow |
| PEM45-8M14P | PEM45 1/2 MNPT by 1/4 OD PBT Elbow |
| PEM45-8M38P | PEM45 1/2 MNPT by 3/8 OD PBT Elbow |
| PEM45-8M12P | PEM45 1/2 MNPT by 1/2 OD PBT Elbow |
