Description

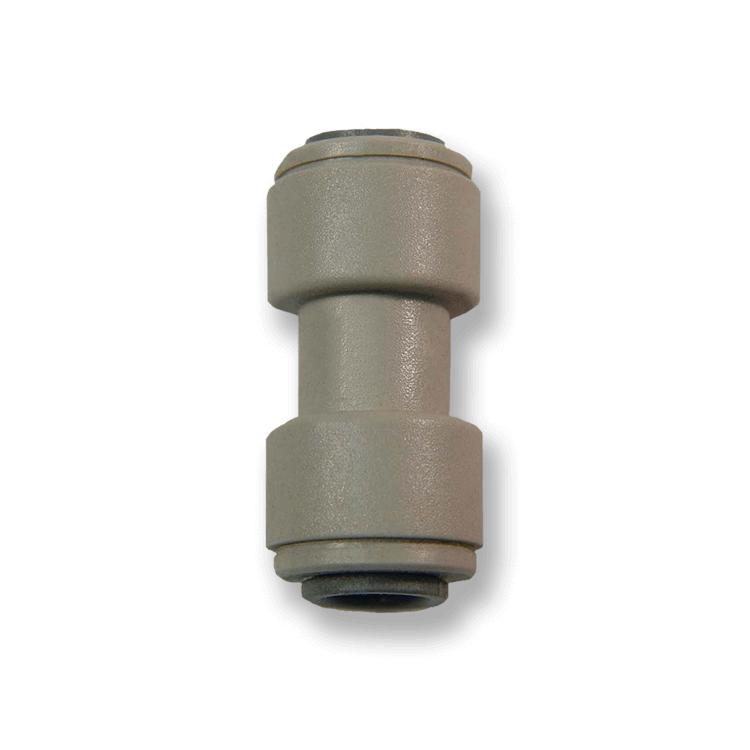

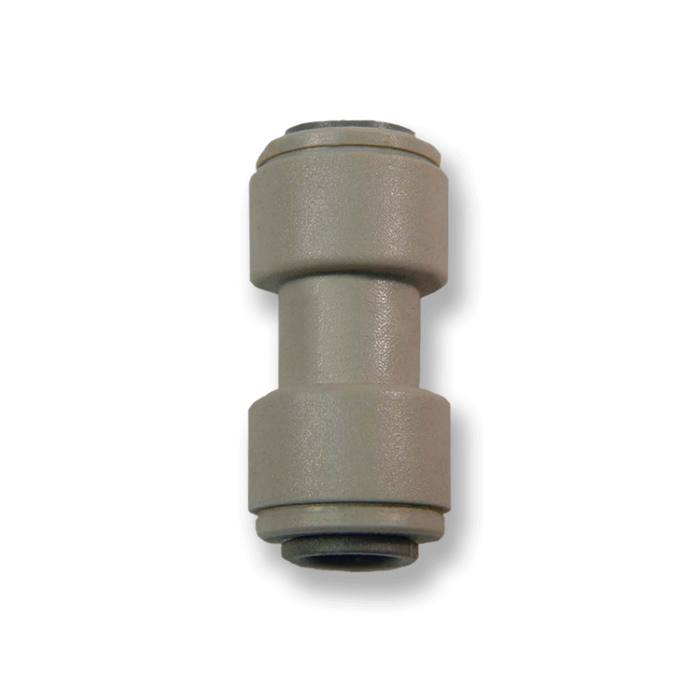

Push-to-Connect Straight Fittings connectors available in Acetal, Polypropylene, and Kynar® used to join tubing of Polyethylene, Brass, or Copper. Sizes range from 5/32 inch OD to 1/2 inch OD including reducing sizes. Gray or White Acetal are NSF and FDA-approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.
| SKU | Description |
|---|---|
| PC-3 | 3/16 OD Equal Connector |
| PC-4 | 1/4 OD Equal Connector |
| PC-5 | 5/16 OD Equal Connector |
| PC-532 | 5/32 OD Equal Connector |
| PC-6 | 3/8 OD Equal Connector |
| PC-8 | 1/2 OD Equal Connector |
| PC-4-3 | 1/4 OD by 3/16 OD Reducer Connector |
| PC-5-532 | 5/16 OD by 5/32 OD Reducer Connector |
| PC-5-3 | 5/16 OD by 3/16 OD Reducer Connector |
| PC-5-4 | 5/16 OD by 1/4 OD Reducer Connector |
| PC-6-3 | 3/8 OD by 3/16 OD Reducer Connector |
| PC-6-4 | 3/8 OD by 1/4 OD Reducer Connector |
| PC-6-5 | 3/8 OD by 5/16 OD Reducer Connector |
| PC-8-5 | 1/2 OD by 5/16 OD Reducer Connector |
