Description

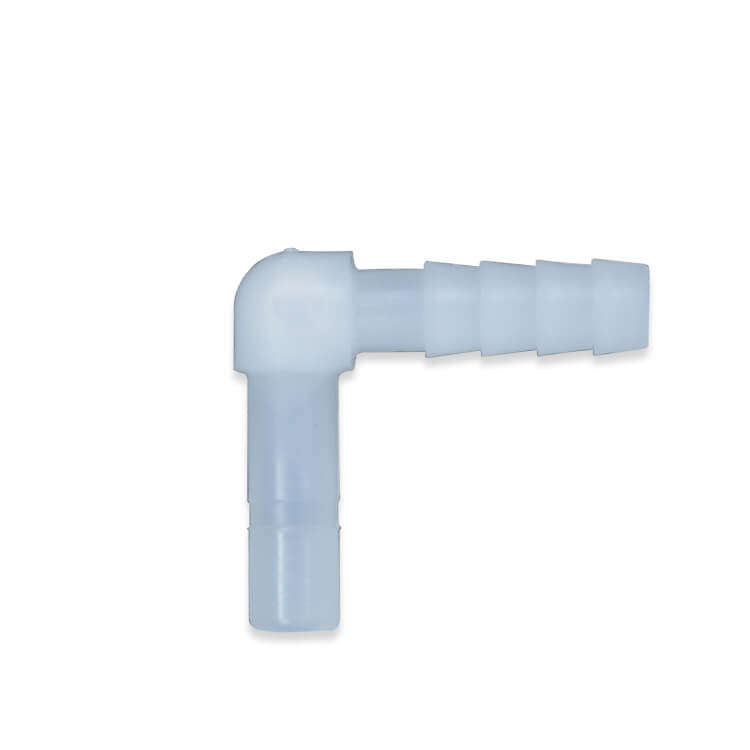

The PEB Series Stem connector to Elbow Barbed Fittings comes in Acetal, Polypropylene, and Kynar® which can be added to a Push-to-Connect connector to terminate in a barbed connection for use with Polyethylene, Vinyl, or braided Vinyl tubing. Stem sizes range from 1/2 inch to 1/4 inch reducing to a 1/4 inch Barbed Fitting. Gray or White Acetal are NSF and FDA-approved and have Buna seals for air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.
| SKU | Description |
|---|---|
| PEB-4 | 1/4 OD Stem by 1/4 Barb Elbow |
| PEB-4S5 | 1/4 OD Stem by 5/16 Barb Elbow |
| PEB-5 | 5/16 OD Stem by 5/16 Barb Elbow |
| PEB-5S4 | 5/16 OD Stem by 1/4 Barb Elbow |
| PEB-5S5 | 5/16 OD Stem by 5/16 Barb Elbow |
| PEB-6 | 3/8 OD Stem by 3/8 Barb Elbow |
| PEB-6S4 | 3/8 OD Stem by 1/4 Barb Elbow |
| PEB-6S5 | 3/8 OD Stem by 5/16 Barb Elbow |
