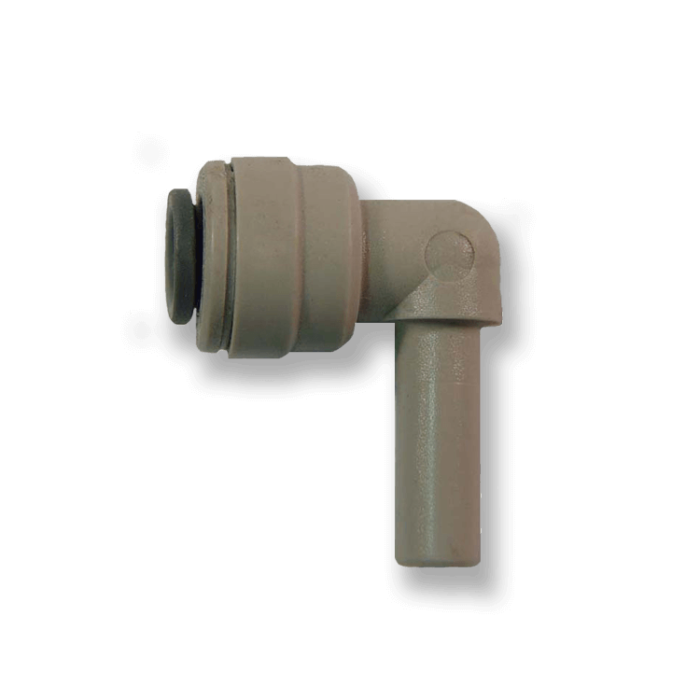

Push-to-Connect Elbow Stem Connector
SPE Series
Description
Push-to-Connect Elbow to Stem Swivel connectors available in Acetal, Polypropylene, and Kynar® can be added to any push-in connector to create a 90-degree connection. Stem sizes range from 1/2 inch to 5/32 inch OD. Push-in sizes of 1/2 inch to 5/32 inch. Use with Polyethylene, Brass, or Copper tubing. Gray or White Acetal are NSF and FDA-approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.
| SKU | Description |
|---|---|
| SPE-3 | 3/16 Stem by 3/16 OD Elbow PBT |
| SPE-4 | 1/4 Stem by 1/4 OD Elbow PBT |
| SPE-4-6 | 1/4 Stem by 3/16 OD Elbow PBT |
| SPE-5 | 5/16 Stem by 5/16 OD Elbow PBT |
| SPE-532 | 5/32 Stem by 5/32 OD Elbow PBT |
| SPE-6 | 3/8 Stem by 3/8 OD Elbow PBT |
| SPE-6-3 | 3/8 Stem by 3/16 OD Elbow PBT |
| SPE-6-4 | 3/8 Stem by 1/4 OD Elbow PBT |
| SPE-6-5 | 3/8 Stem by 5/16 OD Elbow PBT |
| SPE-8 | 1/2 Stem by 1/2 OD Elbow PBT |
