Description

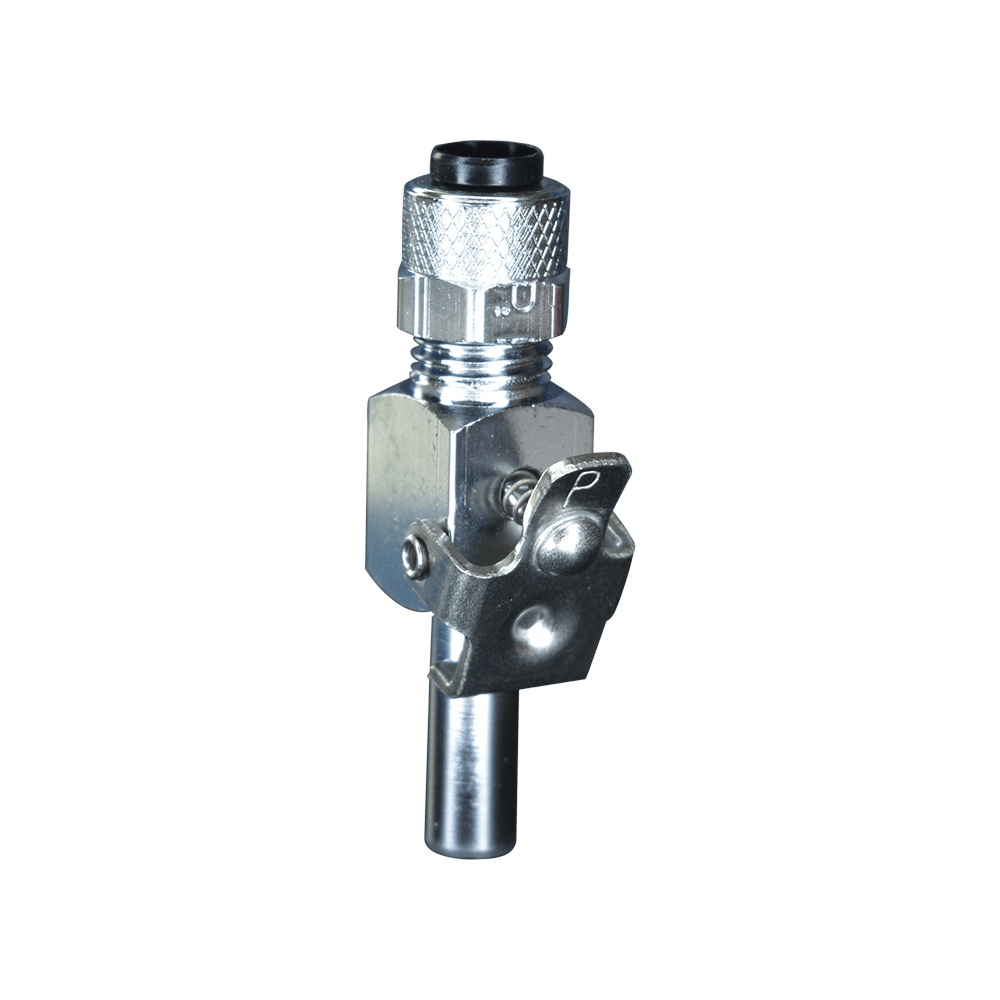

QCPN Series is a 316 Stainless Steel Non-Valved through-type Coupler with a Compression connection to a Plug-in Stem. The OD sizes are 1/4″ and 3/8″. The temperature range is 0° F to 150° F. In fact, the maximum working pressure is 150 psi. This coupler works well with Polyethylene, Nylon, Polypropylene, or Vinyl tubing. This coupler is also available in Chrome-Plated Brass. Also the nuts will rotate around the sleeve to prevent twisting the plastic tubing.
| SKU | DESCRIPTION |
|---|---|
| QCPN-4S-O-4-SS | SS 1/4" OD Tubing x 1/4" OD Tubing Open /Non-Valved |
| QCPN-4S-O-4-NPB | NP Brass 1/4" OD Tubing x 1/4" OD Open/Tubing Non-Valved |
| QCPN-6S-O-6-SS | SS 3/8" O.D Tubing x 3/8" OD Tubing Open/Non-Valved |
| QCPN-6S-O-6-NPB | NP Brass 3/8" OD Tubing x 3/8" OD Open/Tubing Non-Valved |
