Description

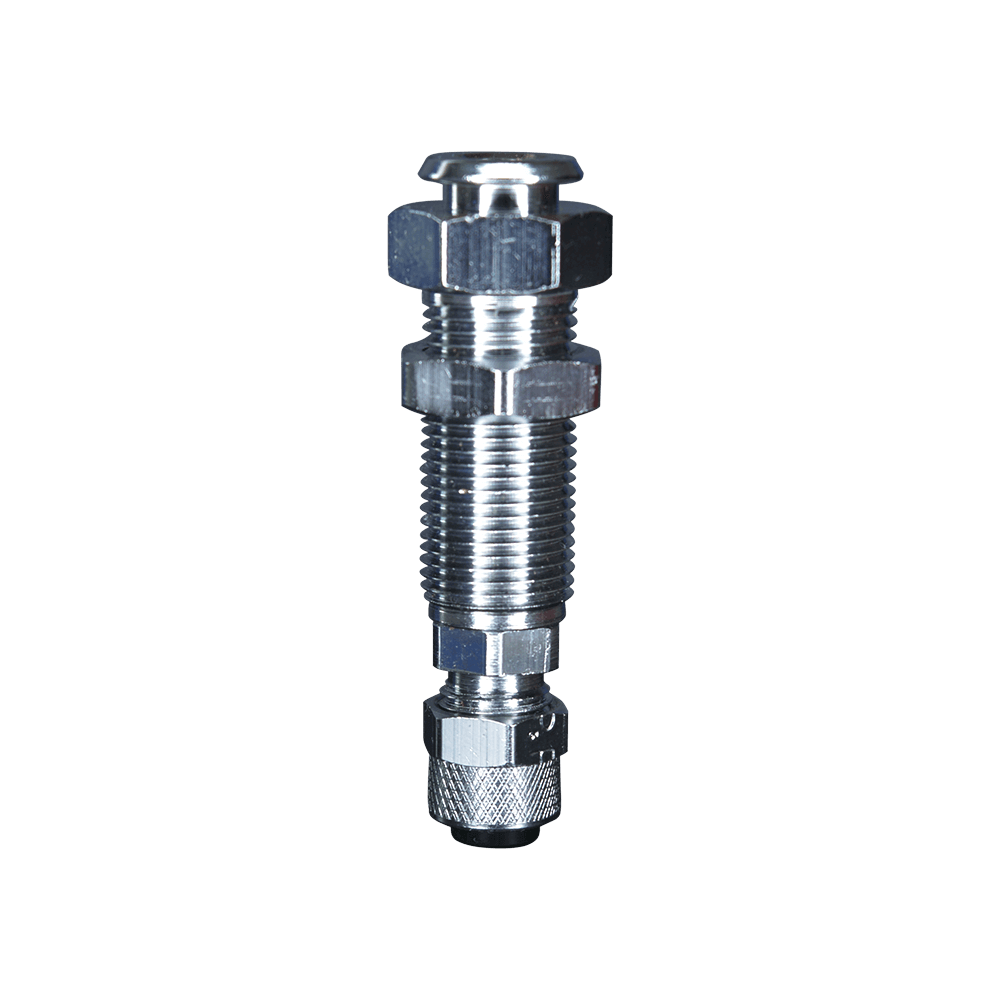

The QCSPM Series is a 316 Stainless Steel Bulkhead coupler with a Compression to Push-to-connect Stem. It is available with 1/4″ or 3/8″ connections. In addition, the temperature ranges from 0° F to 150° F. The maximum working pressure is 150 psi. Therefore, this coupler works well with polyethylene, Nylon, polypropylene, or vinyl tubing. Brass sleeves are available for use with soft metal tubing. The nuts will tighten around the sleeve to prevent twisting of the plastic tubing. In other words, it can be used with dental equipment, pneumatic systems, coolant, and water lines.




SKUDESCRIPTION
QC-4S-PM-4-SSSS 1/4" OD Tubing x 1/4" OD Tubing Non-Valved
QC-4S-PM-4-NPBNP Brass 1/4" O.D Tubing x 1/4" OD Tubing Non-Valved
QC-6S-PM-6-SSSS 3/8" OD Tubing x 3/8" OD Tubing
QC-6S-PM-6-NPBSS 3/8" OD Tubing x 3/8" OD Tubing Non-Valved
