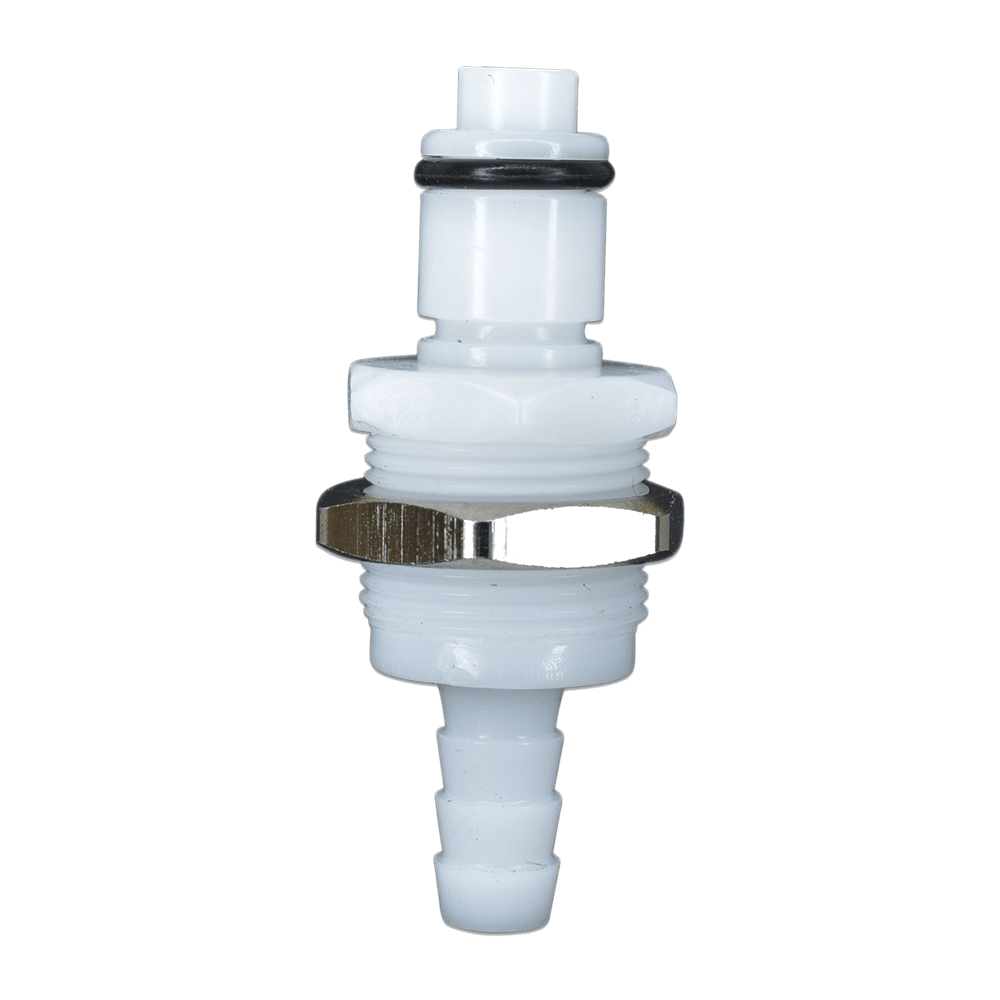

Insert Panel Mount Barb
20AC PB3 Series
Description
1/8 flow male insert, panel mount coupler available in 1/16, 1/8, 3/16 and 1/4 Barbs. product is made with and w/o shutoff.
Nickel plated Brass Panel nut, 5/8 hex with a 1/2-24 UNS threads. Panel mount thru hole requires .50 inches.
| Non-valved | Valved | Description |
|---|---|---|
| 20AC-PB3-01 | 20ACV-PB3-01 | 1/16 Hose Barb |
| 20AC-PB3-02 | 20ACV-PB3-02 | 1/8 Hose Barb |
| 20AC-PB3-03 | 20ACV-PB3-03 | 3/16 Hose Barb |
| 20AC-PB3-04 | 20ACV-PB3-04 | 1/4 Hose Barb |
