Socket Panel Mount Compression
20AC S8 Series
Description

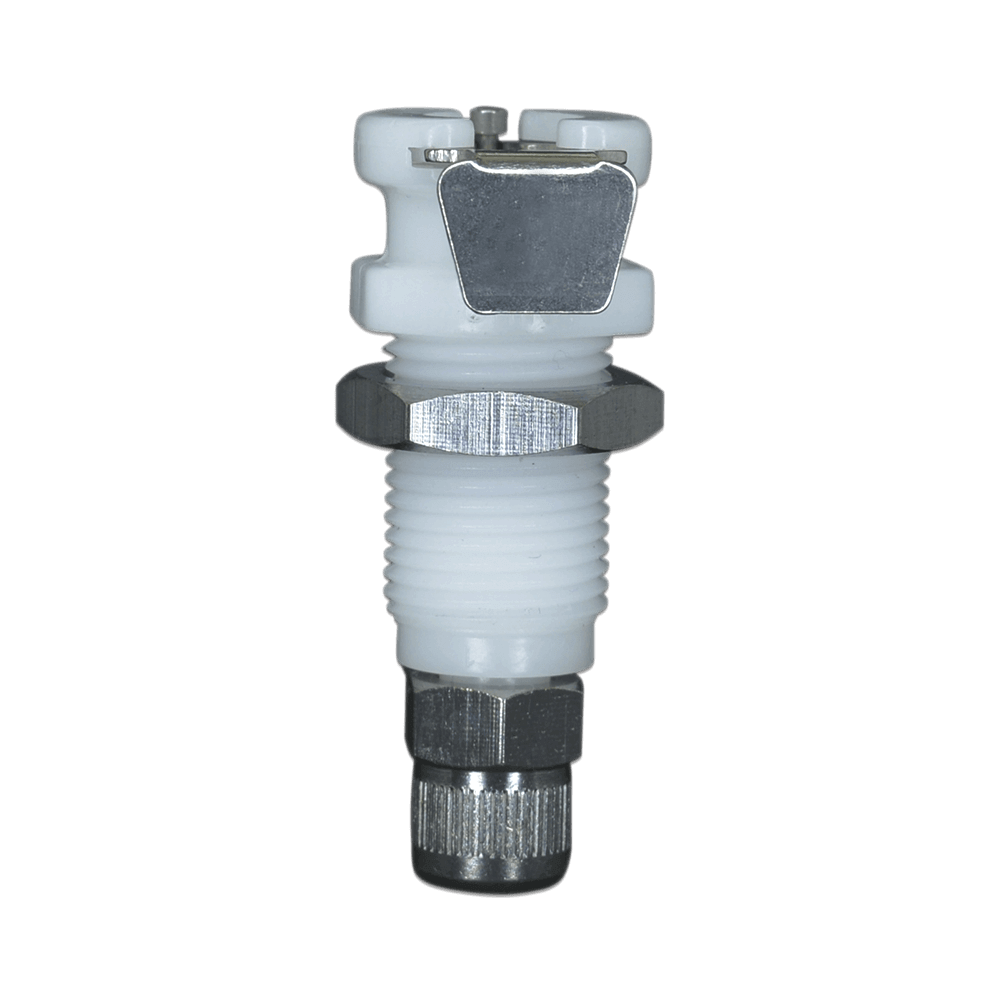

20 Series Socket Panel Mount is designed with a compression fitting suitable for 5/32 inch and 1/4-inch OD Polyurethane Tubing. This product is available with or without a shutoff feature. The compression nut is crafted from nickel-plated brass. The panel mount includes a stainless-steel latch and spring, providing robust performance The 5/8 hex nut for the panel nut is a nickel-plated brass 1/2-24 UNS thread. Thru hole for the panel is .50 inches. Available with a gasket seal, Buna or EPDM, add GS to the part number.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 20AC-S8-025 | 20ACV-SB8-025 | 5/32" OD, .10" ID | 4.0 MM OD, 2.5 MM ID | 1.70" | .62" | .80" |
| 20AC-S8-04 | 20ACV-SB8-04 | 1/4" OD, .17" ID | 6.4 MM OD, 4.3 MM ID | 1.72" | .62" | .80" |
| 20AC-S8-025GS | 20ACV-SB8-025GS | 5/32" OD, .10" ID | 4.0 MM OD, 2.5 MM ID | 1.70" | .62" | .80" |
| 20AC-S8-04GS | 20ACV-SB8-04GS | 1/4" OD, .17" ID | 6.4 MM OD, 4.3 MM ID | 1.72" | .62" | .80" |
