Description

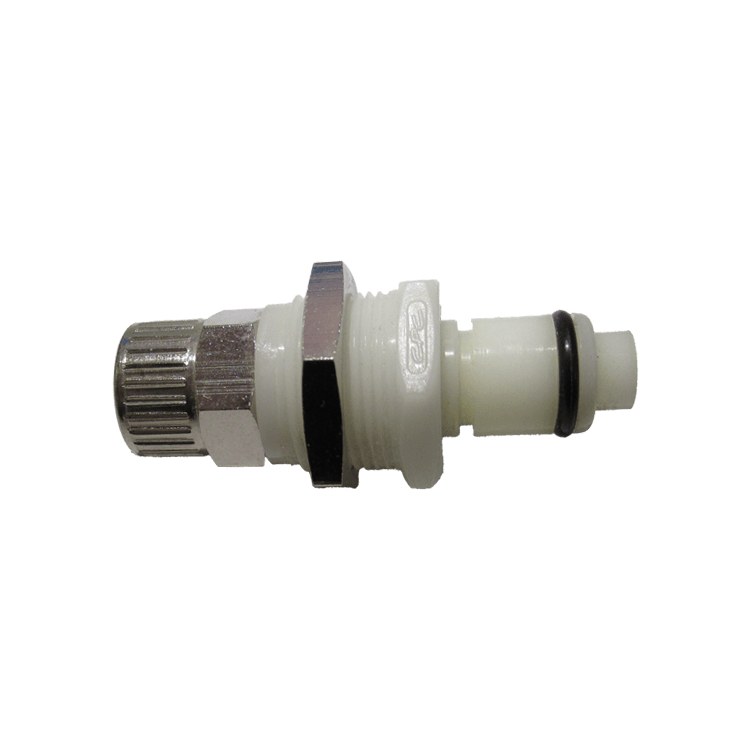

40 Series insert, Panel mount with Compression Fitting. Available with Compression fitting for 1/4 or 3/8 OD tubing.
Nickel-plated brass panel nut and compression fitting
FDA/NSF Buna O-ring.
| NON-VALVED | VALVED | TUBE ID/OD | LENGTH | WIDTH |
|---|---|---|---|---|
| 40AC-PB8-04 | 40ACV-PB8-04 | .170 ID/.250 OD | 1.77"NV/ 1.91"V | .63 |
| 40AC-PB8-06 | 40ACV-PB8-06 | .250 ID/.375 OD | 1.90"NV/ 2.04"V | .63 |
