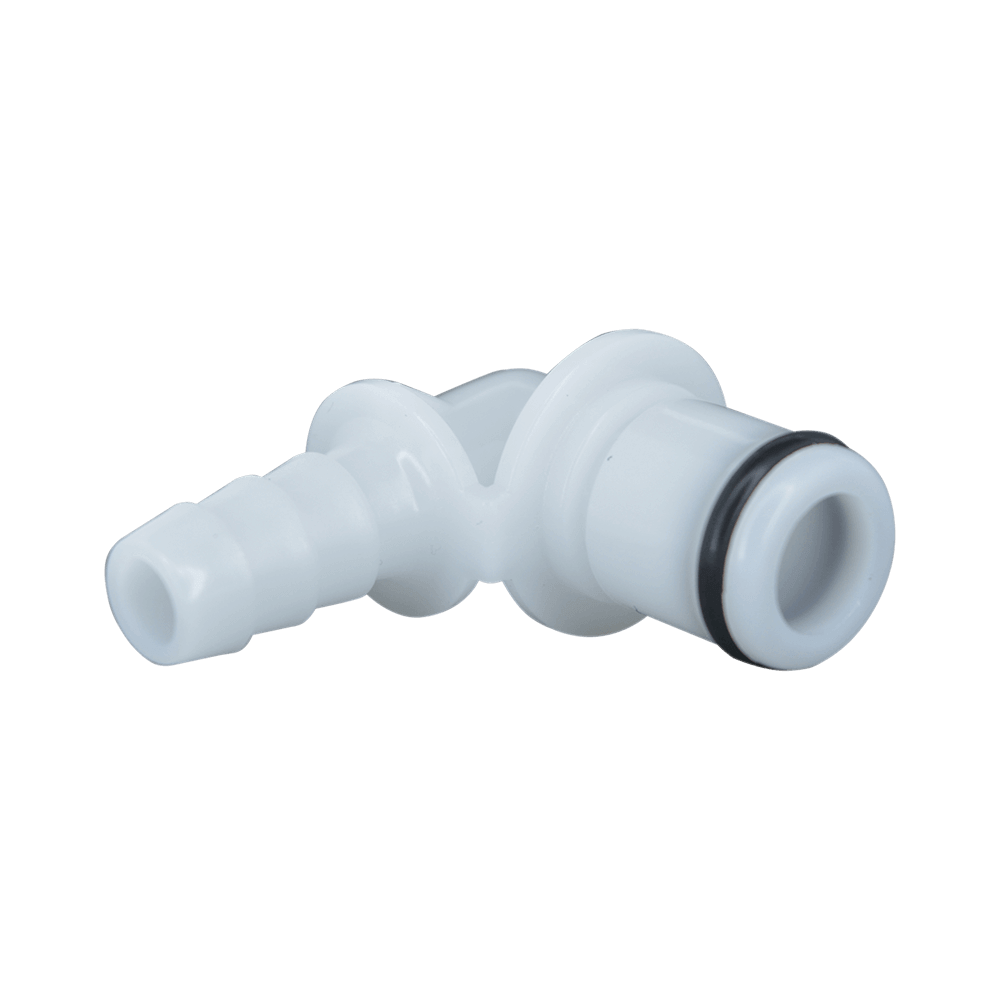

Acetal Elbow Hose Barb Plug
20AC PB4 Series
Description
The 20AC PB4 Series is a Male Quick Coupler with a 1/8 Flow and a 90° Elbow. This product is made from Acetal with a Buna O-ring. Also, the available barb sizes are 1/8 and 1/4 with or without shutoff.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | L(nv/v) | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 20AC-PB4-02 | 20ACV-PB4-02 | 1/8" ID | 3.2 MM ID | .86"/1.19" | .50" | .95" |
| 20AC-PB4-04 | 20ACV-PB4-04 | 1/4" ID | 6.4 MM ID | .98"/1.19" | .50" | 1.10" |
