Acetal Inline Hose Barb Plug
20AC PB2 Series
Description

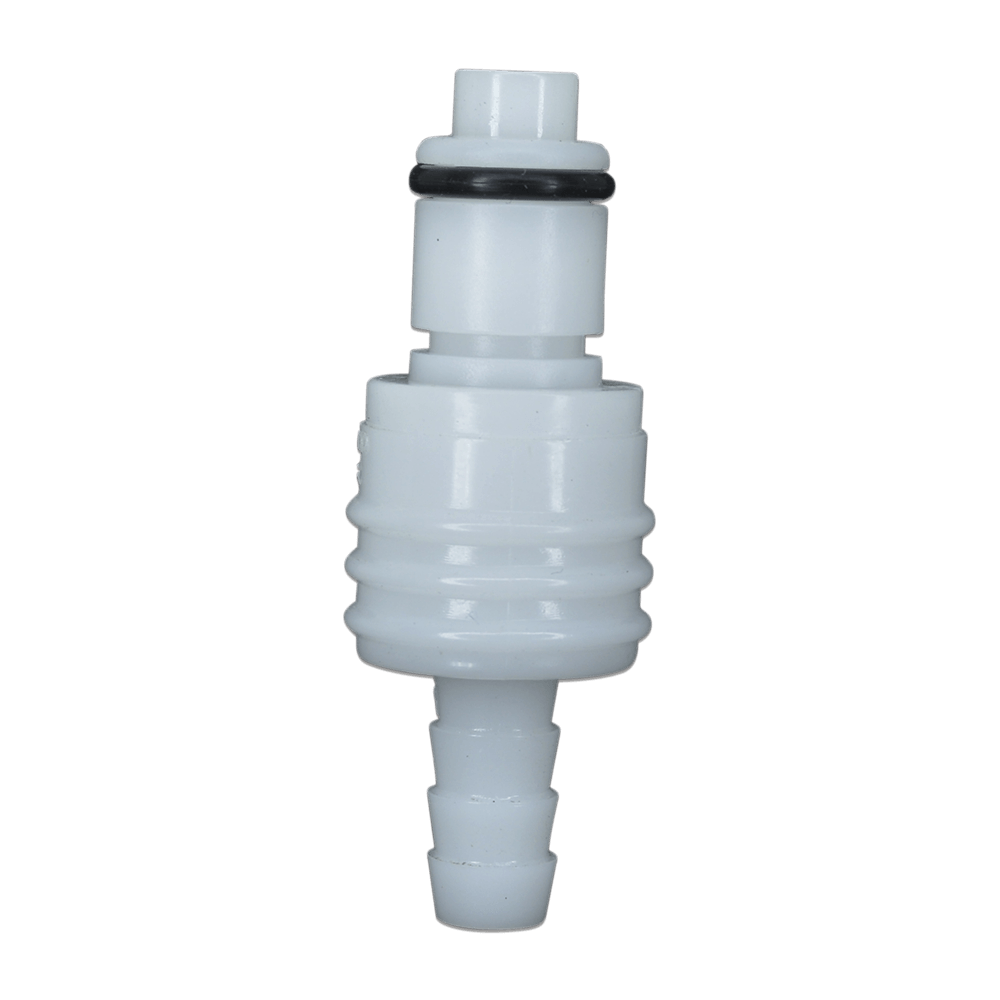

Acetal Quick Coupler. 1/8 Flow inline Barbed Male Plug in Valved or Non-Valved. The picture shown is a valved unit.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | L(nv/v) | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 20AC-PB2-01 | 20ACV-PB2-01 | 1/16" ID | 1.6 MM ID | .80"/1.48" | .55" | .55" |
| 20AC-PB2-02 | 20ACV-PB2-02 | 1/8" ID | 3.2 MM ID | .97"/1.65" | .55" | .55" |
| 20AC-PB2-03 | 20ACV-PB2-03 | 3/16" ID | 4.8 MM ID | 1.12"/.80" | .55" | .55" |
| 20AC-PB2-04 | 20ACV-PB2-04 | 1/4" ID | 6.4 MM ID | 1.12"/.80" | .55" | .55" |
