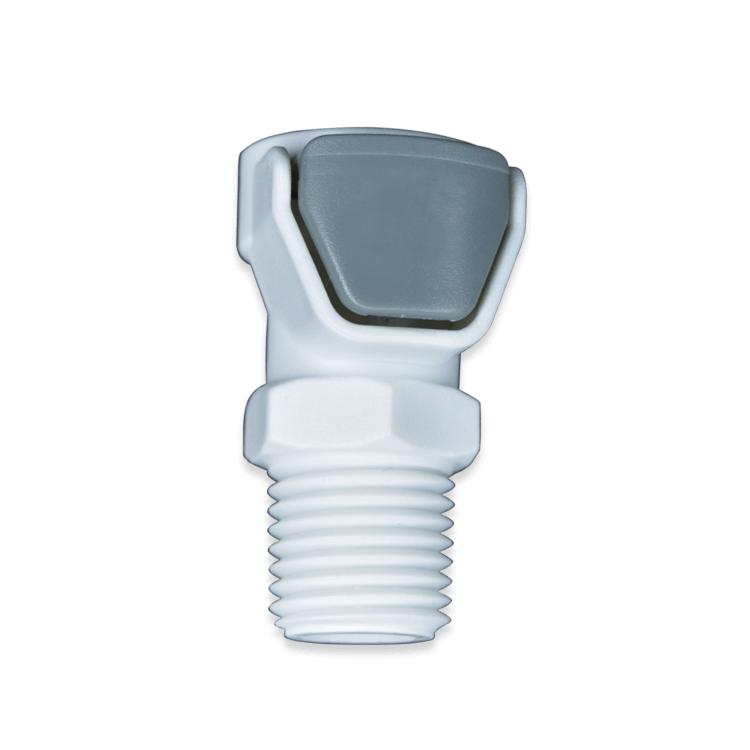

Male Thread Sockets with Plastic Release Latch
50AC S1 Series
Description
50AC S1 Series is a plastic-latch quick-coupler that has a 1/4″ nominal flow. They are made of acetal. These units are available in male pipe thread, Barb and ferrule-less polytube connectors (PFT), and push-in connectors. Coupler bodies and inserts are open flow as a standard, with optional shutoff units. O-rings are FDA/NSF Grade Buna Temperature range is -40° F to 180° F and the pressure rating is 120 psi. Available in Polypropylene.
| NON-VALVED | VALVED | THREAD SIZE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|
| 50AC-S1-04 | 50ACV-SB1-04 | 1/4 NPT | 1.40 | .75 | .94 |
| 50AC-S1-06 | 50ACV-SB1-06 | 3/8 NPT | 1.40 | .75 | .94 |
