Inline Hose Barb Plug (No Sleeve)
10AC PB2 Series No Sleeve
Description

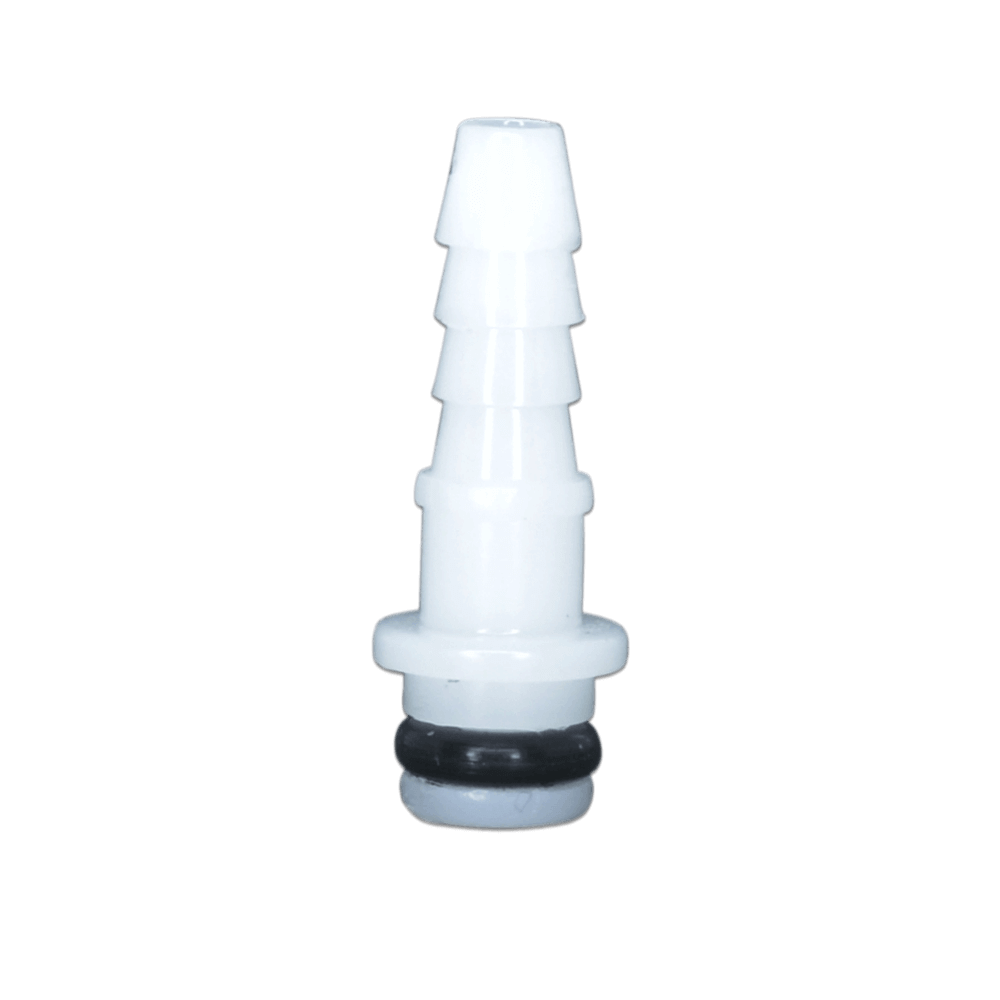

10AC PB2 Series is an Inline Hose Barb Plug, with a 1/16 Flow. The Barb sizes are 1/16 and 1/18 in Natural or Black Acetal. This product is made for use with vacuum lines. For use with the 10AC-S2 series Sockets.
| NON-VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|
| 10AC-PB2-01NS | 1/16" ID Acetal | 1.6" MM ID | .75" | .32" | .32" |
| 10AC-PB2-01NSBLK | 1/16" ID Black Acetal | 1.6" MM ID | .75" | .32" | .32" |
| 10AC-PB2-02NS | 1/8" ID Acetal | 3.2" MM ID | .90" | .32" | .32" |
| 10AC-PB2-02NSBLK | 1/8" ID Black Acetal | 3.2" MM ID | .90" | .32" | .32" |
