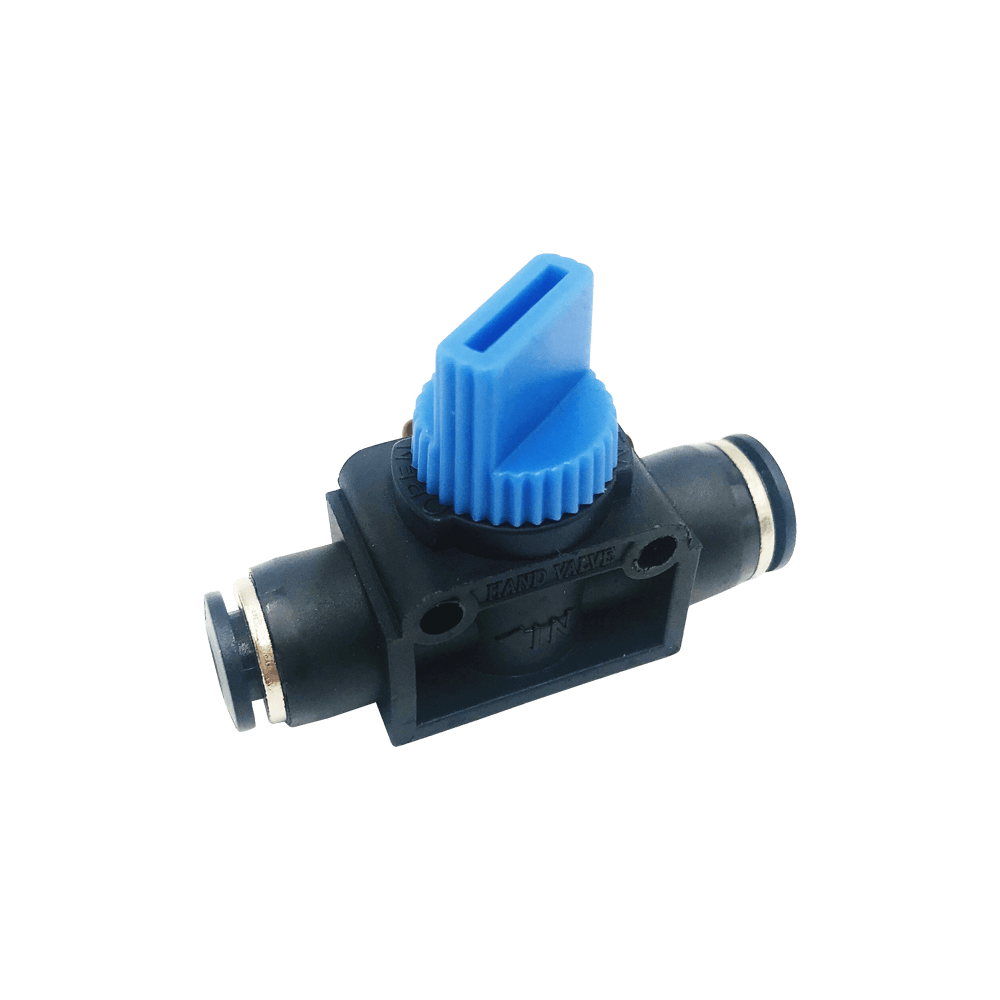

PBT Hand Valves
HV Series
Description
The HV Series Hand Valves are made with a PBT body, nickel-plated threads, and Buna-N O-rings. In addition, the valves can stop or reduce flow. The working pressure is 150 psi and the temperature range is 32˚ F to 140˚ F. They can be used for compressed air or inert gases.
| SKU | DESCRIPTION |
|---|---|
| HV-2M4P | 1/8 MNPT by 1/4 PBT |
| HV-2M5P | 1/8 MNPT by 5/16 PBT |
| HV-4M4P | 1/4 MNPT by 1/4 PBT |
| HV-4M5P | 1/4 MNPT by 5/16 PBT |
| HV-6M4P | 3/8 MNPT by 1/4 PBT |
| HV-6M5P | 3/8 MNPT by 5/16 PBT |
| HV-2M | 1/8 MNPT |
| HV-4M2M | 1/4 MNPT by 1/8 MNPT |
| HV-4M | 1/4 MNPT |
| HV-4M6M | 1/4 MNPT by 3/8 MNPT |
| HV-6M | 3/8 MNPT |
| HV-8M | 1/2 MNPT |
| HV-8M6M | 1/2 MNPT by 3/8 MNPT |
| HV-4P | 1/4 PBT |
| HV-5P | 5/16 PBT |
| HV-5P4P | 5/16 PBT by 1/4 PBT |
