Description

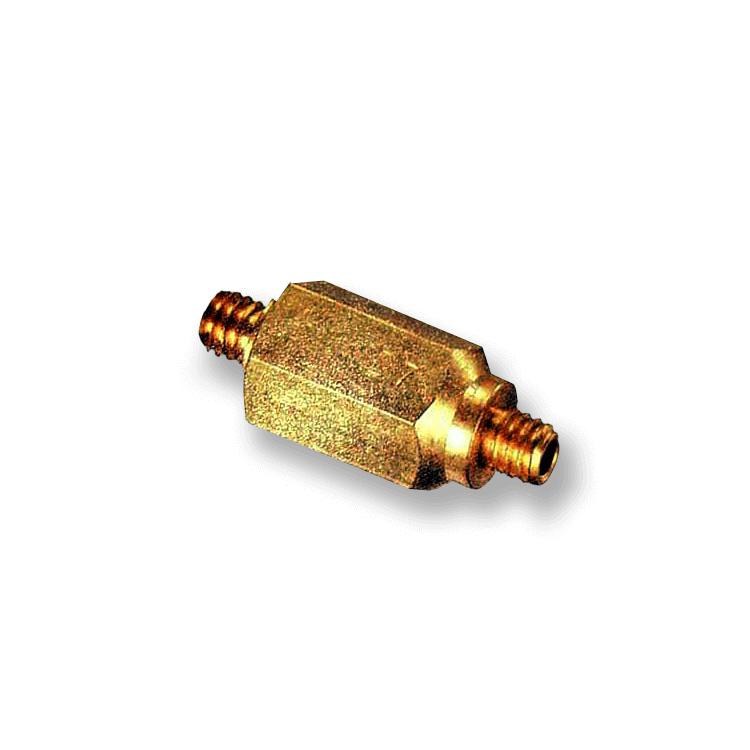

The CLCV Series Brass Check Valves have 10-32 inch ports, a Nitrile seal, and a Stainless Steel spring. It permits flow in only one direction and is used for air and hydraulics. The input psi is 300 maximum. The crack pressure is 1/2 psi and the temperature range is 32˚ F to 230˚ F. The 1/8-inch valve has a maximum input pressure of 1000 psi. Otherwise, all other attributes are the same as the 10-32 inch valve.
| SKU | Description |
|---|---|
| CLCV-10F10F | January 6, 1900 |
| CLCV-10F10M | 10-32 Female to Male Brass Poppet Check Valve |
| CLCV-10M10M | 10-32 Male to Male Brass Poppet Check Valve |
| CLCV-10M10F | 10-32 Male to Female Brass Poppet Check Valve |
| CLCV-18F | 1/8 inch Female to Female Brass Poppet Check Valve |
