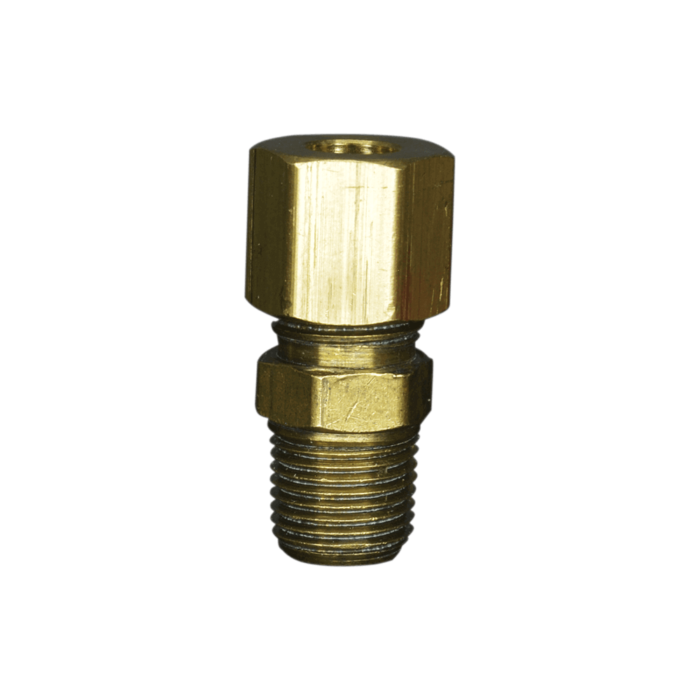

Brass Ball Check Valve Compression Fitting
CMCV Series
Categories: Ball Check Valves, Check Valves
Tags: Ball Check Valve, Brass, Compression Fittings, Compresssion, Metal
Description
The CMCV Series Brass Ball Check Valves are compression fittings. This series has Tube OD of 1/8 inch, 1/4 inch, and 3/8 inch. Male NPT thread sizes of 1/8 inch and 1/4 inch are available. In addition, the working pressure for the 1/8 inch tube OD is 400 psi, for the 1/4 inch it is 300 psi, and for the 3/8 inch, it is 200 psi. Furthermore, the temperature range is -65˚ F to 250˚F at maximum operating pressures.
SKU | Description |
---|---|
CMCV-14C2M | 1/4 inch by 1/8 inch NPT 3 psi Brass Compression Check Valve |
CMCV-18C2M | 1/8 inch Brass 3 psi by 1/8 inch NPT Brass Compression Check Valve |
CMCV-2M14C | 1/8 inch NPT by 1/4 inch Brass S 3 psi Brass Compression Check Valve |
CMCV-2M18C | 1/8 inch NPT by 1/8 inch Brass 3 psi Brass Compression Check Valve |
CMCV-38C4M | 3/8 inch Brass 3 psi by 1/4 inch NPT Brass Compression Check Valve |
CMCV-4M38C | 1/4 inch NPT by 3/8 inch Brass 3 psi Brass Compression Check Valve |
