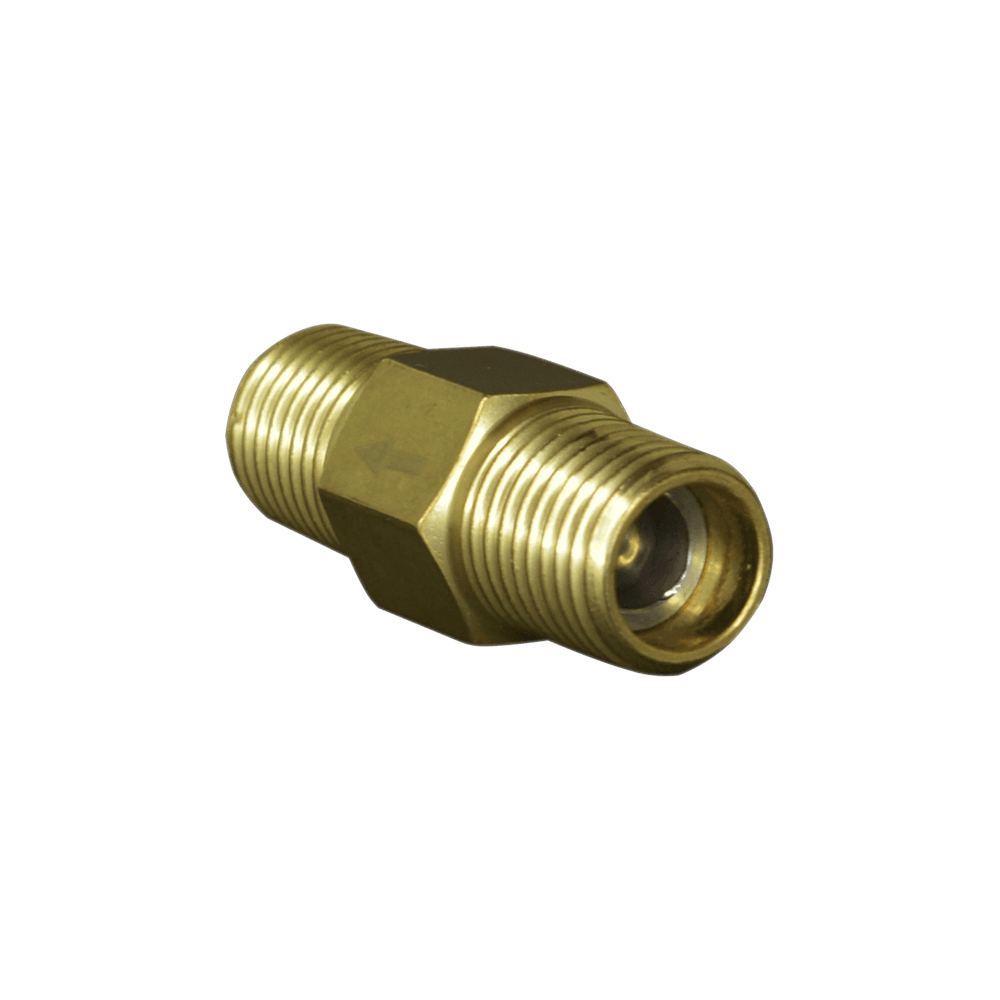

Anti-Siphon Ball Check Valve
EVCK Series- Ball Check Valve
Description
Our EVCK Series Anti-Siphon Ball Check Valves for gasoline applications These Brass valves are available 1/4 NPTF by 1/4, 5/16 or 3/8 Barb, 1/4 NPTF by 1/4 or 3/8,
45 % Male Flare, 1/4 NPTF by 1/4 NPTF and 1/4 NPTF by 1/4 NPTF Female. These 1/4 valves offer a 30 GPH flow at -1.5 PSI
The 3/8 NPTF threads offer a flow of 50 GPH at -1.5 PSI. The sizes are 3/8 Male NPTF by 3/8, 1/2 or 5/8 Hose Barb. 3/8 Male NPTF by 3/8 Male Flare 45%, 3/8 NPTF both ends, and a 3/8 Male NPTF by 3/8 NPTF Female threads.
1/2 Inch connections offer a 75 GPH Flow Rate at -1.5 PSI. Sizes are 1/2 Male NPTF by 3/8 or 1/2 Hose Barb or 1/2 Male NPTF both ends that is available only in brass.
Available in Brass or Aluminium (except Flare fittings) with 300 Stainless Steel ball seats, ball and springs.
| SKU | Description |
|---|---|
| EVCK-4M | 1/4 inch Male by 1/4 inch Male Ball Check Valve |
| EVCK-4M4B-B | 1/4 inch Male by 1/4 inch Barb Ball Check Valve |
| EVCK-4M4B-AL | 1/4 Inch Male by 1/4 inch Barb Ball Check Valve Aluminum |
| EVCK-4M5B | 1/4 inch Male by 5/16 inch Barb Ball Check Valve |
| EVCK-4M6B | 1/4 inch Male by 3/8 inch Barb Ball Check Valve |
| EVCK-4M4F | 1/4 inch Male by 1/4 inch Female Ball Check Valve |
| EVCK-6M | 3/8 inch Male by 3/8 inch Male Ball Check Valve |
| EVCK-6M6B | 3/8 inch Male by 3/8 inch Barb Ball Check Valve |
| EVCK-6M8B | 3/8 inch Male by 1/2 inch Barb Ball Check Valve |
| EVCK-6M10B | 3/8 inch Male by 5/8 inch Barb Ball Check Valve |
| EVCK-6M6F | 3/8 inch Male by 3/8 inch Female Ball Check Valve |
| EVCK-8M | 1/2 inch Male by 1/2 inch Male Ball Check Valve (brass only) |
| EVCK-8M6B-AL | 1/2 inch Male by 3/8 inch Barb Ball Check Valve (aluminum only) |
| EVCK-8M8B | 1/2 inch Male by 1/2 inch Barb Ball Check Valve (Brass Only) |
