Description

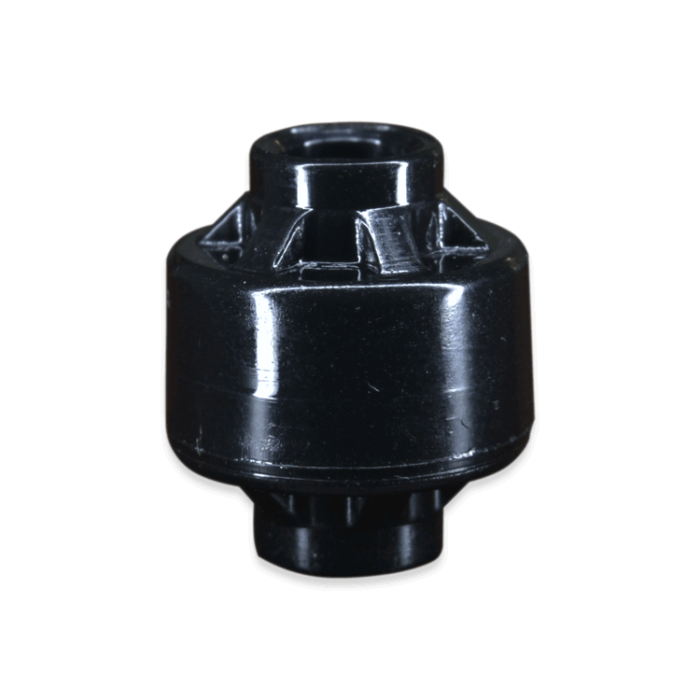

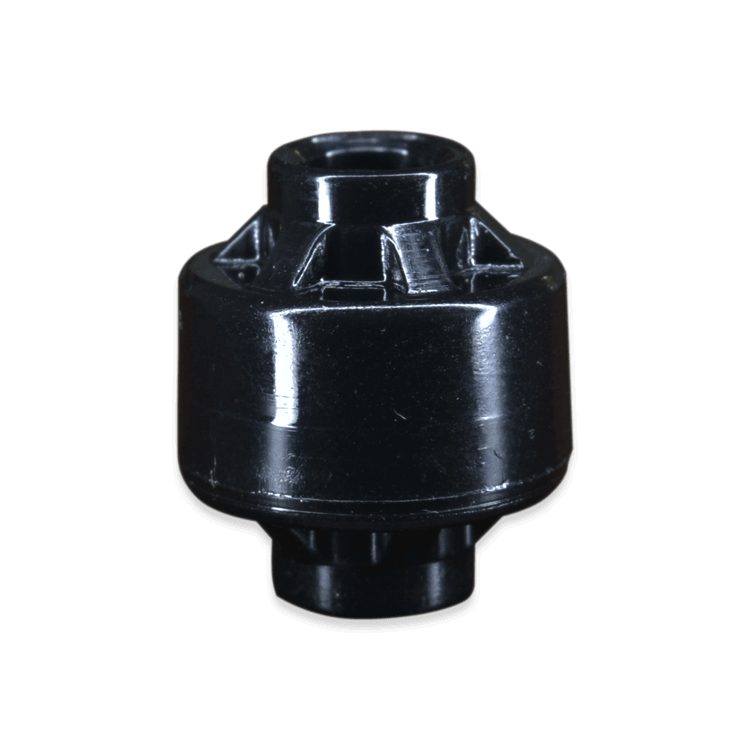

The VC-IG Series Plastic Check Valves have housing molded of Polysulfone or Polypropylene with either a POM or Silicone disc. The cracking pressure for these units is .8 H²O or .028 psi. The 10-32 inch units have a cracking pressure of 10 H²O or .36 psi. These check valves were made to be used in low-pressure applications. Reverse flow at 1 psi is available as follows: Polypropylene with Silicone: .20 SCIM, Polysulfone with POM 2.98 SCIM, Polysulfone with POM 1.00 SCIM R2, Polysulfone with Silicone .20 SCIM, and Polysulfone with Silicone .06 SCIM 10-32 inch Female ports only. Maximum pressure is 10 psi excluding the 10-32 inch port which is rated for 75 psi.
| SKU | Description |
|---|---|
| VC-IG-1032F-PSS | 1032 Female PS Silicon Check Valve |
| VC-IG-1B-PPS | 1/16 Barb PP Silicone Check Valve |
| VC-IG-1B-PSC R2 | 1/16 Barb PS Celcon® Check Valve |
| VC-IG-1B-PSS | 1/16 Barb PS Silicone Check Valve |
| VC-IG-1S-PPS | 1/16 Shaft PP Silicone Check Valve |
| VC-IG-1S-PSC | 1/16 Shaft PS Celcon® Check Valve |
| VC-IG-1S-PSC R2 | 1/16 Shaft PS Celcon® Check Valve |
| VC-IG-1S-PSS | 1/16 Shaft PS Silicone Check Valve |
| VC-IG-2B-PPS | 1/8 Barb PP Silicone Check Valve |
| VC-IG-2B-PSC R2 | 1/8 Barb PS Celcon® Check Valve |
| VC-IG-2B-PSS | 1/8 Barb PS Silicone Check Valve |
