Description

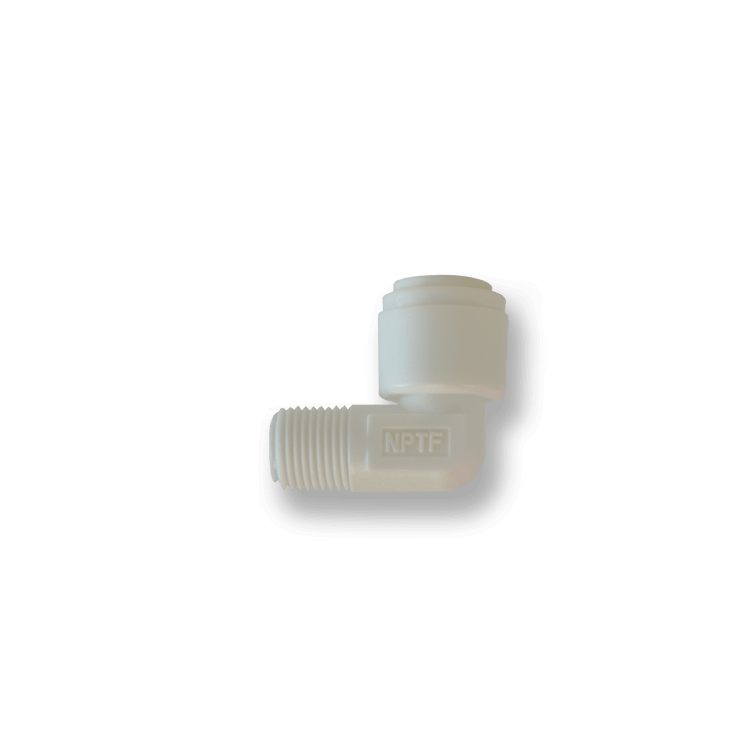

The DCE Series is a rigid male Check Valve elbow made of Acetal that is NSF 51® certified and meets NSF 61® requirements. The available male threads are 1/8 inch, 1/4 inch, and 3/8 inch. OD tubing sizes are 5/32 inch, 3/16 inch, 1/4 inch, 5/16 inch, 3/8 inch, and 1/2 inch. The working pressure at 77˚ F is 232 psi, and at 158˚ F it is 145 psi. The working temperature range is from 32˚ F to 158˚ F. It can be used for compressed air, inert gases, water, and other fluids.
| SKU | Description |
|---|---|
| DCE-2M-14 | 1/8 MNPT by 1/4 OD Push-in Elbow Spring-loaded Check Valve |
| DCE-4M-14 | 1/4 MNPT by 1/4 OD Push-to Connect Elbow Check Valve |
| DCE-6M-14 | 3/8 MNPT by 1/4 OD Push-to Connect Elbow Check Valve |
