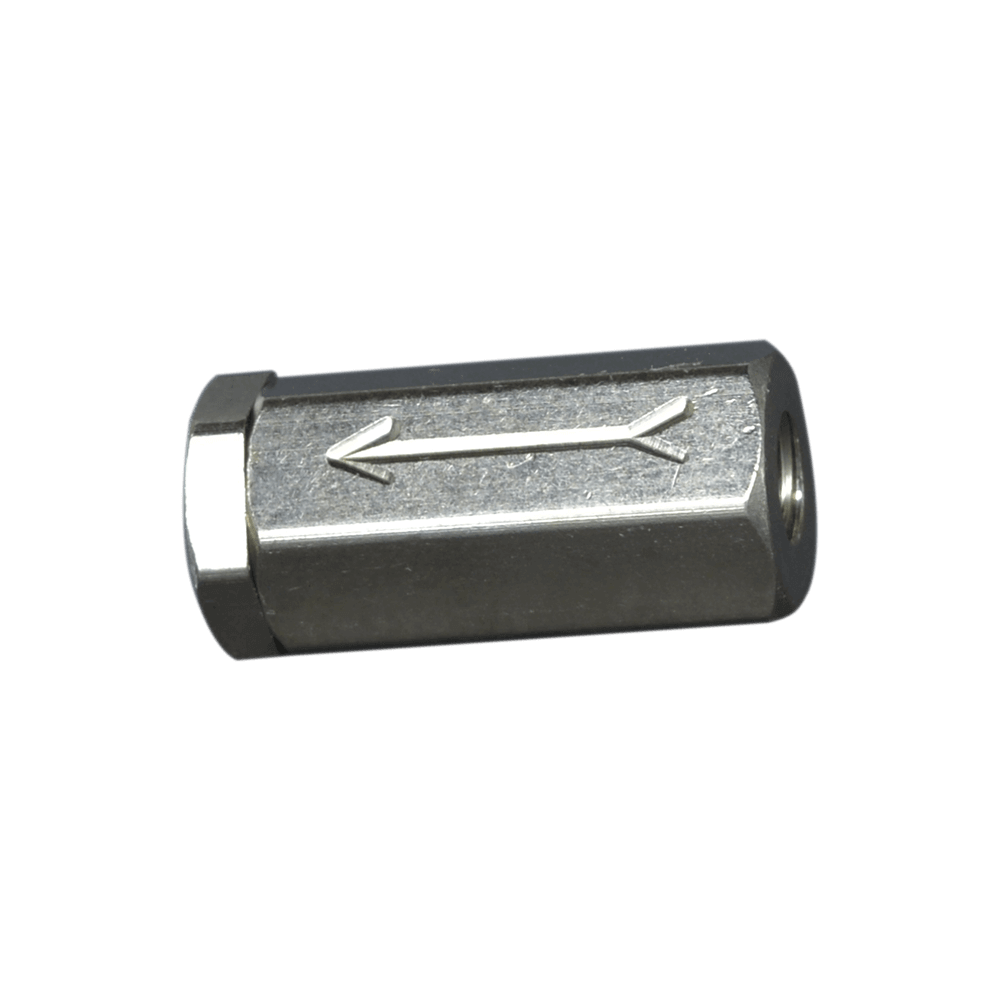

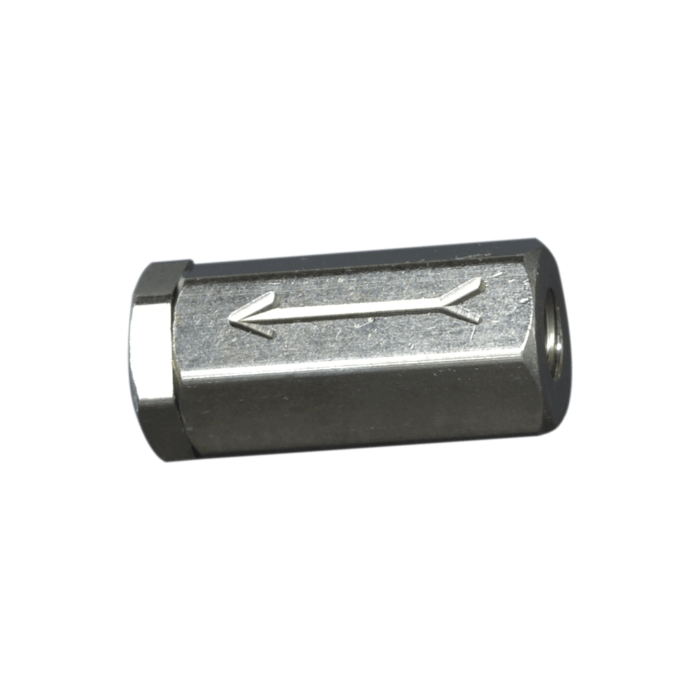

Nickle Plated Brass Poppet Check Valve
NCV Check Valve Series
Category: Poppet Check Valves
Tags: Metal, Metal Check Valve, Nickel-Plated, Poppet
Description
The NCV Series Nickel-Plated Brass Poppet Check Valve has options of Buna-N, EPDM or FKM seals. The operating pressure is 0 to 125 psi and the flow rate ranges from 2.5 to 9.5 scfm. Input and output port sizes are 10-32 inch UNF and 1/16 inch Barb.
SKU | Description |
---|---|
NCV-10F10F | 10-32 Female to Female Nickel-Plated Poppet Check Valves |
NCV-10F10M | 10-32 Female to Male Nickel-Plated Poppet Check Valves |
NCV-10F1B | 10-32 Female 1/16 inch Barb Nickel-Plated Poppet Check Valves |
NCV-10M10F | 10-32 Male to Female Nickel-Plated Poppet Check Valves |
NCV-10M1B | 10-32 Male 1/16 inch Barb Nickel-Plated Poppet Check Valves |
NCV-1B1B | 1/16 inch Barb to 1/16 inch Barb Nickel-Plated Poppet Check Valves |
