Description

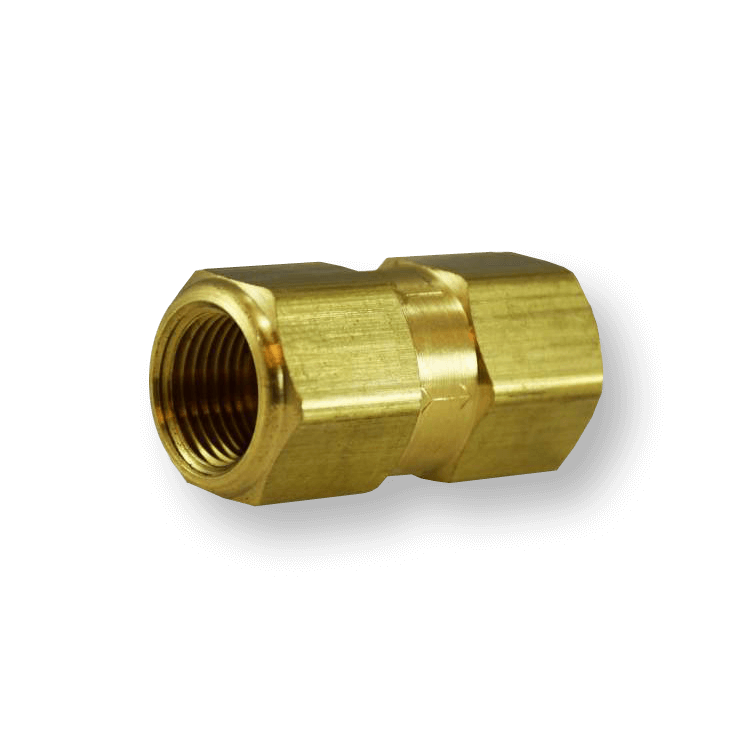

The PPCV Series Brass Poppet Check Valve has inlet sizes of 1/8, 1/4 inch, 3/8 inch, 1/2 inch, and 3/4 inch Female NPT threads and 3/8 inch and 1/2 inch Male NPT threads. Outlet sizes are 1/4 inch, 3/8 inch, 1/2 inch, and 3/4 inch, 1 Inch Female NPT threads. End body options are 1/4 inch and 3/8 inch Male Flare, and 1/4 inch Female Flare. Seal options are Buna-N, EPDM and Viton®. The cracking pressure on the 302 Stainless Steel spring is 1 psi (standard). Maximum operating pressure is 500 PSI for the 1/8 size and 1200 PSI for all the other sizes. The maximum operating temperature is 180˚ F. Two sizes of valves, the 3/8 FNPT and the 1-inch FNPT are available in 303 stainless.
| SKU | Description |
|---|---|
| PPCV-18M | 1/8 inch MNPT Brass Poppet Check Valve |
| PPCV-14MFL | 1/4 Male Flare to 1/4 Male Flare Brass Poppet Check Valve |
| PPCV-18M14MFL | 1/8 inch MNPT to 1/4 Male Flare Brass Poppet Check Valve |
| PPCV-14MFL18M | 1/4 Male Flare to 1/8 MNPT Brass Poppet Check Valve |
| PPCV-14MFL18M-NP | 1/4 Male Flare to 1/8 MNPT Nickel Plated Brass Poppet Check Valve |
| PPCV-14F | 1/4 inch Female Brass Poppet Check Valve |
| PPCV-14F-1-V | 1/4 inch Female Brass Poppet Check Valve <1 psi FKM Seals |
| PPCV-14F14MFL | 1/4 FNPT to 1/4 Male Flare Brass Poppet Check Valve |
| PPCV-38MFL | 3/8 Male Flare Brass Poppet Check Valve |
| PPCV-38MF | 3/8 MNPT to 3/8 FNPT Brass Poppet Check Valve |
| PPCV-38F | 3/8 FNPT to 3/8 FNPT Brass Poppet Check Valve |
| PPCV-12M38F | |
| PPCV-12F | 1/2 inch Female Brass Poppet Check Valve |
| PPCV-12MF | 1/2 inch Male 1/2 inch Female Brass Poppet Check Valve |
| PPCV-34F | 3/4 inch Female Brass Poppet Check Valve |
| PPCV-34MF | 3/4 inch Male 3/4 inch Female Brass Poppet Check Valve |
