Description

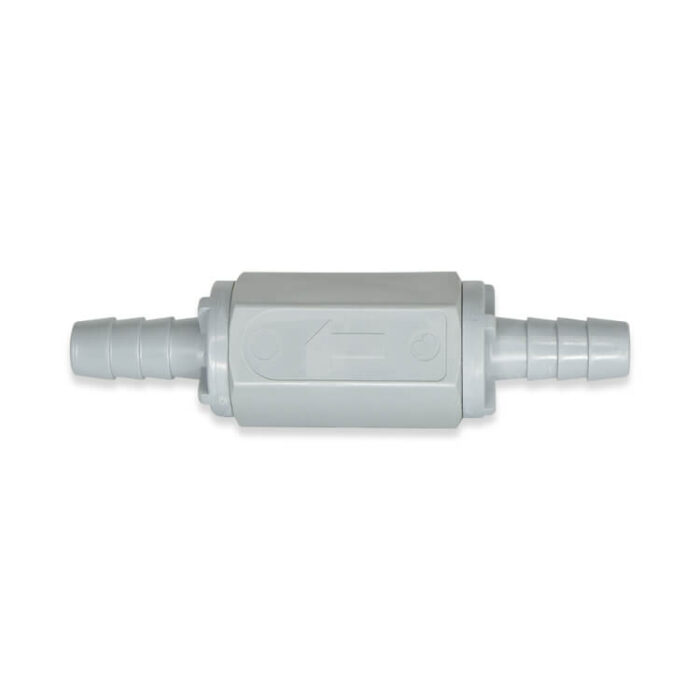

The SPC Series Plastic Check Valves are PVC and have 302 Stainless Steel springs, 316 Stainless Steel balls, and EPDM seals. Optional materials are Polypropylene and Nylon. 1 psi spring is standard with optional 1/3, 3, 5, 7, 10, or 12-pound springs. Also PVDF bodies in 1/4 inch female NPT only. Hastelloy spring, PTFE ball, and FKM O-rings for aggressive environments are available.
| SKU | Description |
|---|---|
| SPC-2B2B-PB-12 | 1/8 inch Barb Valve Polypropylene Buna 12 psi |
| SPC-2B-PP-E-10 | 1/8 inch Barb Polypropylene EPDM 10 psi |
| SPC-2B-V-12 | 1/8 inch Barb Viton® with 12 Spring |
| SPC-2C2C | 1/8 inch Compression by 1/8 inch Compression |
| SPC-2C2M-H-V | 1/8 inch Compression by 1/8 inch MNPT Hastelloy® FKM |
| SPC-2F2F | 1/8 inch Female by 1/8 inch Female |
| SPC-2F2F-HV | 1/8 inch Female NPT with Hastelloy® FKM Seals |
| SPC-2M2M | 1/8 inch Male by 1/8 inch Male |
| SPC-2M4F-E | 1/8 inch NPT to 1/4 inch Female EPDM Seals |
| SPC-4B2M-HV-12 | 1/4 inch Barb to 1/8 inch MNPT Hastelloy® FKM 12 psi |
| SPC-4B2M-HV-3 | 1/4 inch Barb to 1/8 inch MNPT Hastelloy® FKM 3psi |
| SPC-4B4B | 1/4 inch Barb by 1/4 inch Barb |
| SPC-4B4B-HV | 1/4 inch Barb Hastelloy® FKM .5 psi |
| SPC-4B4B-V-12 | 1/4 inch Barb FKM with 12 spring |
| SPC-4B4M-BKPP-HV-1/3 | 1/4 inch Barb 1/4 inch Male Black Polypropylene FKM Hastelloy® 1/3 psi |
| SPC-4B4M-VH | 1/4 inch Barb by 1/4 inch MNPT FKM/Hastelloy® |
| SPC-4B-V-12 | 1/4 inch Barb Viton® with 12 psi Spring |
| SPC-4B-V-H-1 | 1/4 inch Barb PVC FKM PTFE/Hastelloy® 1 psi |
| SPC-4C2M-H-V | 1/4 inch Compression by 1/8 inch MNPT Hastelloy® FKM |
| SPC-4C4C | 1/4 inch Compression by 1/4 inch Compression |
| SPC-4C4M-K-H-V | 1/4 inch Compression 1/4 inch Male PVDF Hastelloy® FKM |
| SPC-4F4F | 1/4 inch Female by 1/4 inch Female |
| SPC-4F4F-H-V | 1/4 inch F by 1/4 inch Female Hastelloy® FKM |
| SPC-4F4F-K-H-V | 1/4 inch Female PVDF Hastelloy® FKM |
| SPC-4F4FPP-H-V-3 | 1/4 inch Female Polypropylene Hastelloy® FKM 3 psi |
| SPC-4F4M-H-V-90PP | 1/4 inch Female by 1/4 inch NPT Polypropylene Hastelloy®/ FKM 90 Micron |
| SPC-4F4M-K-H-V | 1/4 inch Female by 1/4 inch M PVDF Hastelloy® FKM |
| SPC-4M4B-HV | 1/4 inch Male 1/4 inch Barb FKM Hastelloy® |
| SPC-4M4F-H-V | 1/4 inch Male by 1/4 inch Female Hastelloy® FKM 1 psi |
| SPC-4M4F-K-H-V | 1/4 inch Male by 1/4 inch Female PVDF Hastelloy® FKM |
| SPC-4M4M | 1/4 inch Male by 1/4 inch Male |
| SPC-4M4M-H-V | 1/4 inch Male by 1/4 inch Male Hastelloy® FKM 1 psi |
| SPC-4M4P | 1/4 inch Male 1/4 inch Push-in |
| SPC-4M6B | 1/4 inch Male 3/8 inch Barb |
| SPC-4P2M-H-V | 1/4 inch Push-in by 1/8 inch inch Male Hastelloy® |
| SPC-4P4P | 1/4 inch Push-in by 1/4 inch Push-in |
| SPC-4P4P-HV | 1/4 inch Push-in Hastelloy® FKM |
| SPC-4P4P-SS-HV | 1/4 inch Push-in Stainless Steel Ball Hastelloy® FKM |
| SPC-4P6B-H-V-7 | 1/4 inch Push-in 3/8 inch Barb Hastelloy® FKM 7 |
| SPC-4PI2M-H-V | 1/4 inch Push-in by 1/8 inch Male Hastelloy®/ FKM |
| SPC-4S4P | 1/4 inch Stem by 1/4 inch Push-in |
| SPC-6B6B | 3/8 inch Barb by 3/8 inch Barb |
| SPC-6B-F-1/3 | 3/8 inch Barb Fluoroelastomer 1/3 psi |
| SPC-6P4F-H-V | 3/8 inch Push-in by 1/4 inch Female Hastelloy®/ Viton® |
| SPC-6P4M-H-V | 3/8 inch Push-in by 1/4 inch Male Hastelloy®/ Viton® |
| SPC-6P-6B-H-V | 3/8 inch Push-in 3/8 inch Barb Hastelloy® FKM 7 psi |
| SPC-6P-6B-H-V-R | 3/8 inch Push-in 3/8 inch Barb Hastelloy® FKM 7 psi |
| SPC-6P6M-H-V RV1 | 3/8 inch Push-in by 3/8 inch Male Hastelloy®/ Viton® |
| SPC-6S6P | 3/8 inch Stem by 3/8 inch Push-in |
| SPC-8B8B | 1/8 inch Male by 1/8 inch Male |
