Description

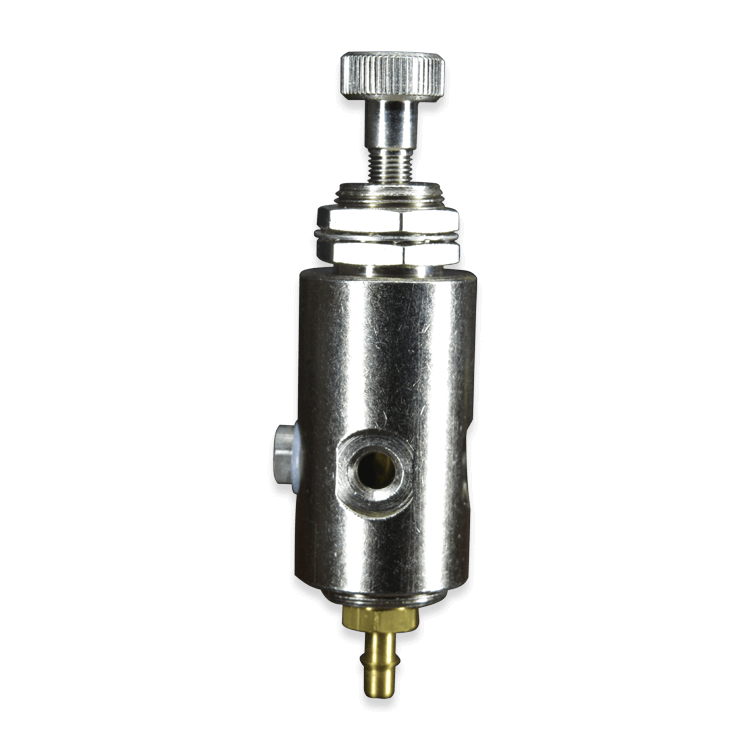

The 2-way non-exhausting Air Regulator is made of Electroless Nickel Plated Brass with a small knurled knob and is panel mountable. The input port can be 10-32 male or female threads; 1/16”, 3/32”, and 1/8” Barb; 1/8” Female NPT or 1/4-20 Female threads. Also, the outlet port can be 10-32 male or female threads or 1/16”, 3/32”, or 1/8” Barb. The panel mount threads are 15/32-32. The maximum operating pressure is 5 to 80 psi and the maximum operating temperature is 180˚ F. 3-way exhausting is also available.
