Description

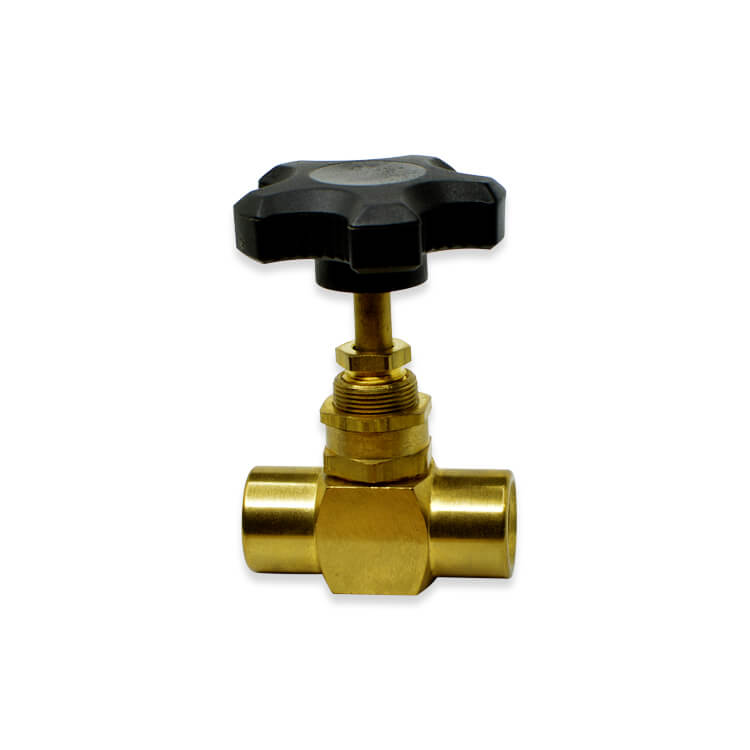

The compact design of this Brass Needle Valve allows for multiple configurations; straight or 90˚ elbow. It has a 500 psi rating and its maximum operating temperature is 180˚ F. The through hole diameter is .156. The stem seal is PTFE and the needle is available in Brass or Stainless Steel. The knob options are black-filled Polyester, yellow-filled polyester, or no knob. To enable panel mounting, a brass hex nut is supplied. The inlet sizes are 1/4″ female NPT and 1/4″ male and female NPT; the outlet size is 1/4″ female NPT.
| SKU | Descripton |
|---|---|
| NVS-4F | 1/4 inch FNPT Inline Needle Valve |
| NVSA-4F | 1/4 inch FNPT Right Angle Needle Valve |
| NVSA-4F4M | 1/4 inch Male Inlet 1/4 Female Outlet Needle Valve |
