Description

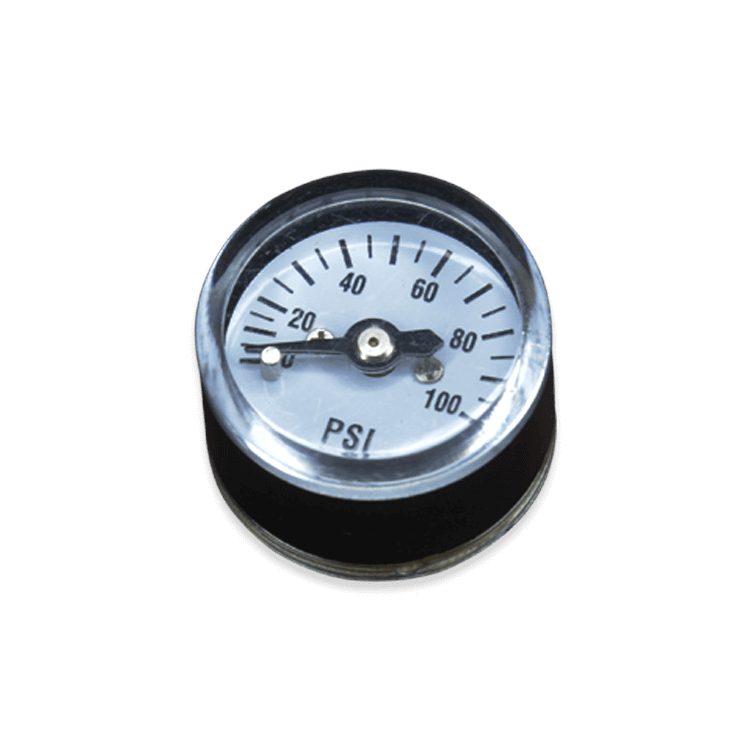

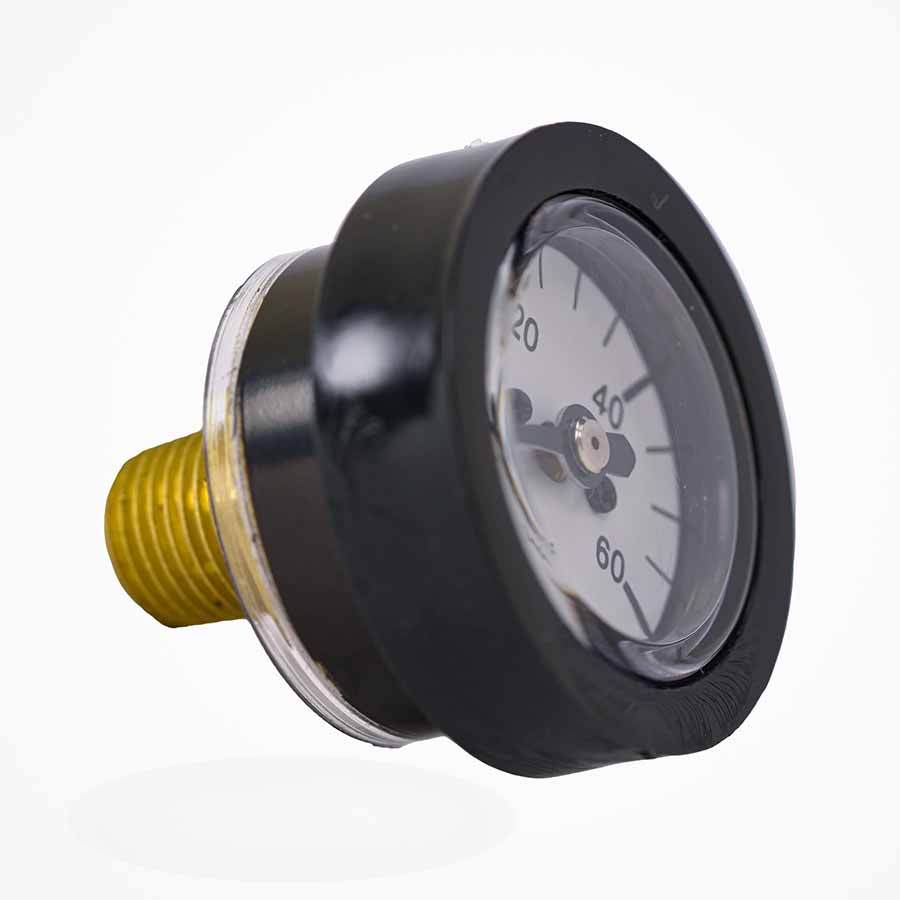

G1 Series Pressure Gauge has an ABS case with a Brass movement and a dial size of 1”. The Gauge is available in 30, 60, 100, and 160 psi. There is a 1/8” MNPT center back mount that can also accommodate a 10-32 male UNF fitting inside that 1/8” fitting. Also, the operating temperature for this gauge is 0˚ F to 160˚ F. The maximum supply is 50% over the gauge pressure range. Furthermore, his gauge is recommended for use with steam, air, oil, and water.
| SKU | DESCRIPTION |
|---|---|
| G1-CBM-30 | 1 inch GAUGE CBM 0-30 |
| G1-CBM-60 | 1 inch GAUGE CBM 0-60 |
| G1-CBM-100 | 1 inch GAUGE CBM 0-100 |
| G1-CBM-160 | 1 inch GAUGE CBM 0-160 |
