Description

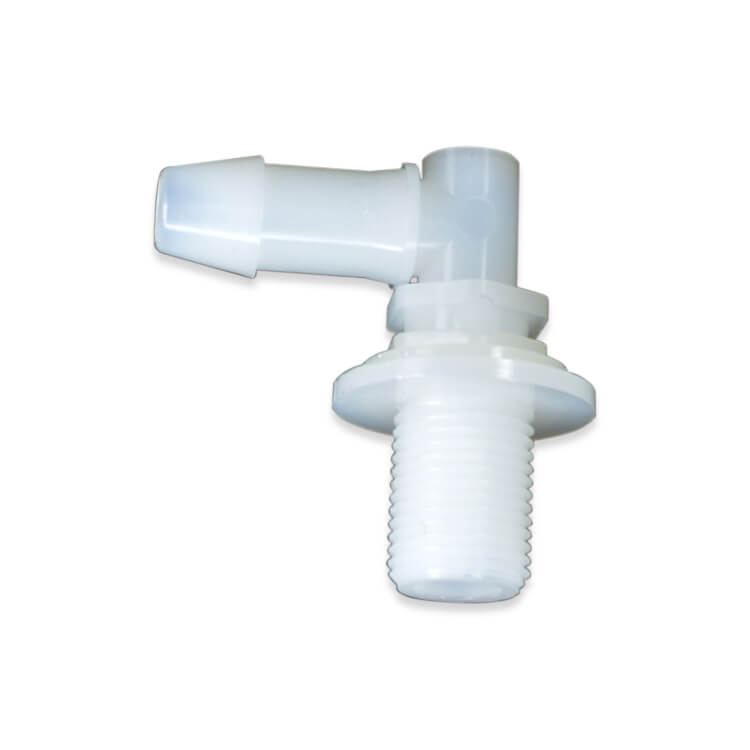

PMFL Series is a one-sided Bulkhead Elbow that is tank-mountable with a flange. It is available in Nylon, Black Nylon, Polypropylene, HDPE, and PVDF. UNF thread size is 5/16-24. The NPS sizes are 1/8” and 1/4″. Barb sizes are: 1/16”, 3/32”, 1/8”, 5/32”, 3/16”, 1/4”. (order as NN, BN, PP, HDPE, PVDF)
| SKU | DESCRIPTION |
|---|---|
| PMFL2M-1 | 1/8 NPS-L 1/16 Tank Flange Elbow |
| PMFL2M-2 | 1/8 NPS-L 1/8 Tank Flange Elbow |
| PMFL2M-332 | 1/8 NPS-L 3/32 Tank Flange Elbow |
| PMFL2M-3 | 1/8 NPS-L 3/16 Tank Flange Elbow |
| PMFL2M-4 | 1/8 NPS-L 1/4 Tank Flange Elbow |
| PMFL4M-1 | 1/4 NPS-L 1/16 Tank Flange Elbow |
| PMFL4M-2 | 1/4 NPS-L 1/8 Tank Flange Elbow |
| PMFL4M-332 | 1/4 NPS-L 3/32 Tank Flange Elbow |
| PMFL4M-3 | 1/4 NPS-L 3/16 Tank Flange Elbow |
| PMFL4M-4 | 1/4 NPS-L 1/4 Tank Flange Elbow |
| PMFL4M-532 | 1/4 NPS-L 5/32 Tank Flange Elbow |
| PMFL516-1 | 5/16-24L 1/16 Tank Flange Elbow |
| PMFL516-2 | 5/16-24L 1/8 Tank Flange Elbow |
