Panel Mount Bulkhead with Flange

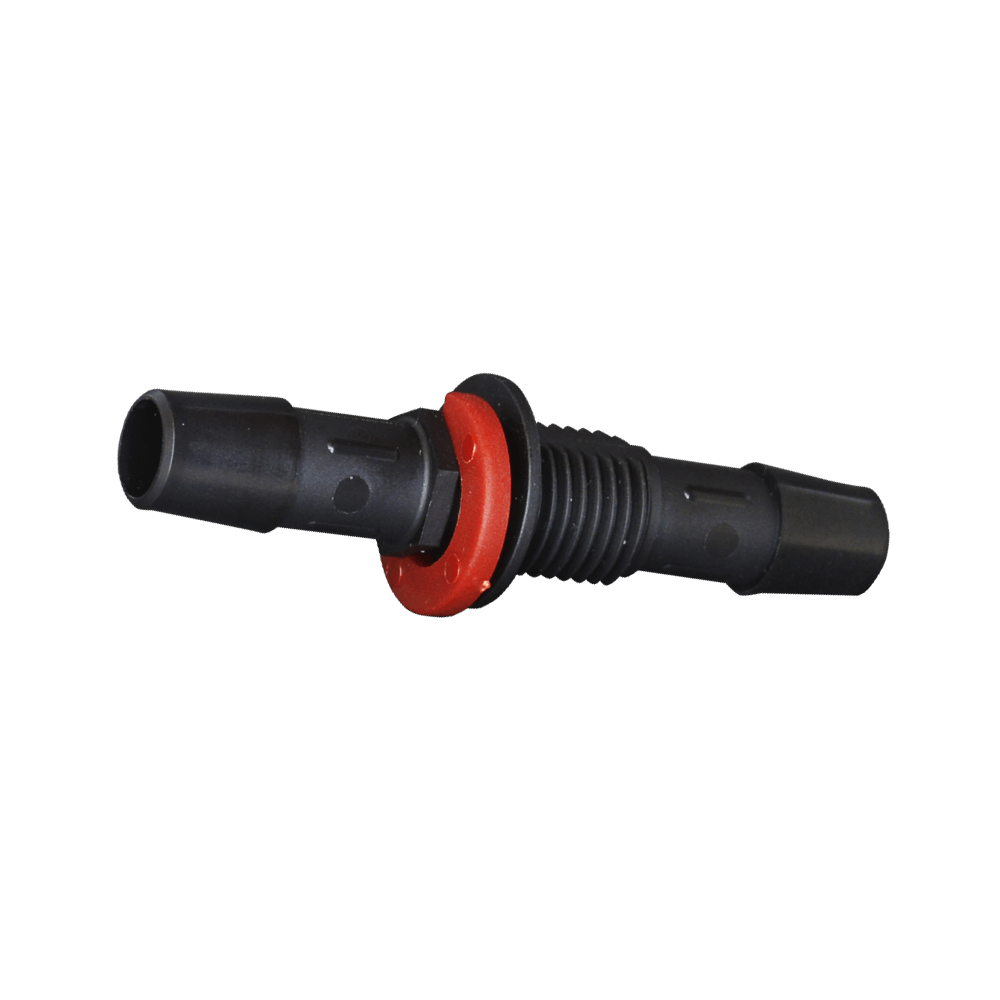

MBF Series- Panel Mount Bulkhead
Description
The MBF Series are bulkheads with panel mountings of 5/16-24 UNF threads, 1/8” and 1/4″ NPS threads, and a mounting flange. The first barb size is outside the panel, and the second is on the inside. In addition, the MBF Series is available in Black Nylon, Natural Nylon, Polypropylene, and PVDF. Barb sizes are 1/16”, 3/32”, 1/8”, 5/32”, 3/16” and 1/4″. (order as BN, NN, PP, PVDF)
| SKU | Description |
|---|---|
| MBF2-1B3B | 1/8 NPS-1/16 by 3/16 Bulkhead |
| MBF2-1B4B | 1/8 NPS-1/16 by 1/4 Bulkhead |
| MBF2-2B3B | 1/8 NPS-1/8 by 3/16 Bulkhead |
| MBF2-2B4B | 1/8 NPS-1/8 by 1/4 Bulkhead |
| MBF2-3323B | 1/8 NPS-3/32 by 3/16 Bulkhead |
| MBF2-3B | 1/8 NPS-3/16 by 3/16 Bulkhead |
| MBF2-3B4B | 1/8 NPS-3/16 by 1/4 Bulkhead |
| MBF2-4B | 1/8 NPS-1/4 by 1/4 Bulkhead |
| MBF2-532B3B | 1/8 NPS-5/32 by 3/16 Bulkhead |
| MBF2-532B4B | 1/8 NPS-5/32 by 1/4 Bulkhead |
| MBF4-1B3B | 1/4 NPS-1/16 by 3/16 Bulkhead |
| MBF4-1B4B | 1/4 NPS-1/16 by 1/4 Bulkhead |
| MBF4-2B3B | 1/4 NPS-1/8 by 3/16 Bulkhead |
| MBF4-2B4B | 1/4 NPS-1/8 by 1/4 Bulkhead |
| MBF4-332B3B | 1/4 NPS-3/32 by 3/16 Bulkhead |
| MBF4-332B4B | 1/4 NPS-3/32 by 1/4 Bulkhead |
| MBF4-3B4B | 1/4 NPS-3/16 by 1/4 Bulkhead |
| MBF4-3B | 1/4 NPS-3/16 by 3/16 Bulkhead |
| MBF4-4B4B | 1/4 NPS-1/4 by 1/4 Bulkhead |
| MBF4-4B516B | 1/4 NPS-1/4 by 5/16 Bulkhead |
| MBF4-4B6B | 1/4 NPS-1/4 by 3/8 Bulkhead |
| MBF4-516B6B | 1/4 NPS-5/16 by 3/8 Bulkhead |
| MBF4-532B3B | 1/4 NPS-5/32 by 3/16 Bulkhead |
| MBF4-532B4B | 1/4 NPS-5/32 by 1/4 Bulkhead |
| MBF4-5B5B | 1/4 NPS-5/16 by 5/16 Bulkhead |
| MBF4-6B6B | 1/4 NPS-3/8 by 3/8 Bulkhead |
| MBF516-1B332B | 5/16-24 UNF 1/16 by 3/32 Bulkhead |
| MBF516-1B3B | 5/16-24 UNF 1/16 by 3/16 Bulkhead |
| MBF516-2B3B | 5/16-24 UNF 1/8 by 3/16 Bulkhead |
| MBF516-2B532B | 5/16-24 UNF 1/8 by 3/32 Bulkhead |
| MBF516-332B3B | 5/16-24 UNF 3/32 by 3/16 Bulkhead |
| MBF516-332B532B | 5/16-24 UNF 3/32 by 5/32 Bulkhead |
| MBF516-3B | 5/16-24 UNF 3/16 by 3/16 Bulkhead |
| MBF516-532 | 5/16-24 UNF 5/32 by 5/32 Bulkhead |
