Description

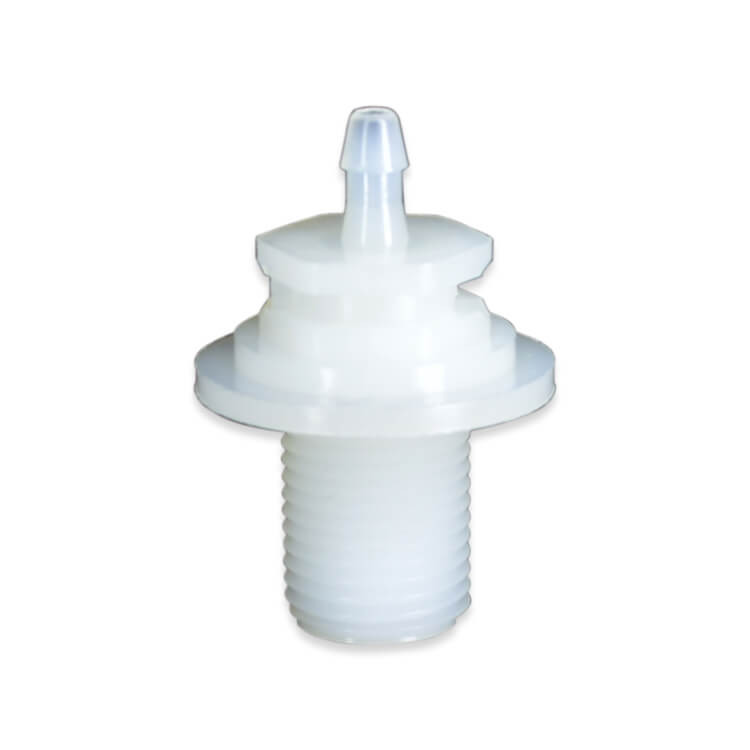

The PMF Series is a one-sided Bulkhead that is tank-mountable with a flange. It is available in Nylon, Black Nylon, Polypropylene, HDPE, and PVDF. UNF thread sizes are 5/16-24, 10-32 and 1/4-28. In addition, the NPS sizes are 1/8” and 1/4″. Barb sizes are 1/16”, 1/8”, 5/32”, 3/16”, and 1/4″. (order as NN, BN, PP, HDPE, PVDF) O-Rings available.
| SKU | DESCRIPTION |
|---|---|
| PMF1428-2B | 1/4-28 1/8 Barb Bulkhead Tank Flange |
| PMF2M-1 | 1/8 NPS-1/16 Bulkhead Tank Flange |
| PMF2M-2 | 1/8 NPS-1/8 Bulkhead Tank Flange |
| PMF2M-332 | 1/8 NPS-3/32 Bulkhead Tank Flange |
| PMF2M-3 | 1/8 NPS-3/16 Bulkhead Tank Flange |
| PMF2M-4 | 1/8 NPS-1/4 Bulkhead Tank Flange |
| PMF4M-1 | 1/4 NPS-1/16 Bulkhead Tank Flange |
| PMF4M-2 | 1/4 NPS-1/8 Bulkhead Tank Flange |
| PMF4M-332 | 1/4 NPS-3/32 Bulkhead Tank Flange |
| PMF4M-3 | 1/4 NPS-3/16 Bulkhead Tank Flange |
| PMF4M-4 | 1/4 NPS-1/4 Bulkhead Tank Flange |
| PMF4M-532 | 1/4 NPS-5/32 Bulkhead Tank Flange |
| PMF4M-5 | 1/4 NPS-5/16 Bulkhead Tank Flange |
| PMF4M-6 | 1/4 NPS-3/8 Bulkhead Tank Flange |
| PMF4M-8 | 1/4 NPS-1/2 Bulkhead Tank Flange |
| PMF516-1 | 5/16-24 by 1/16 Bulkhead Tank Flange |
| PMF516-2 | 5/16-24 by 1/8 Barb Bulkhead Tank Flange |
| PMF516-332 | 5/16-24 by 3/32 Bulkhead Tank Flange |
| PMF516-3 | 5/16-24 by 3/16 Bulkhead Tank Flange |
| PMF516-4 | 5/16-24 by 1/4 Bulkhead Tank Flange |
| PMF516-532 | 5/16-24 by 5/32 Bulkhead Tank Flange |
