Description

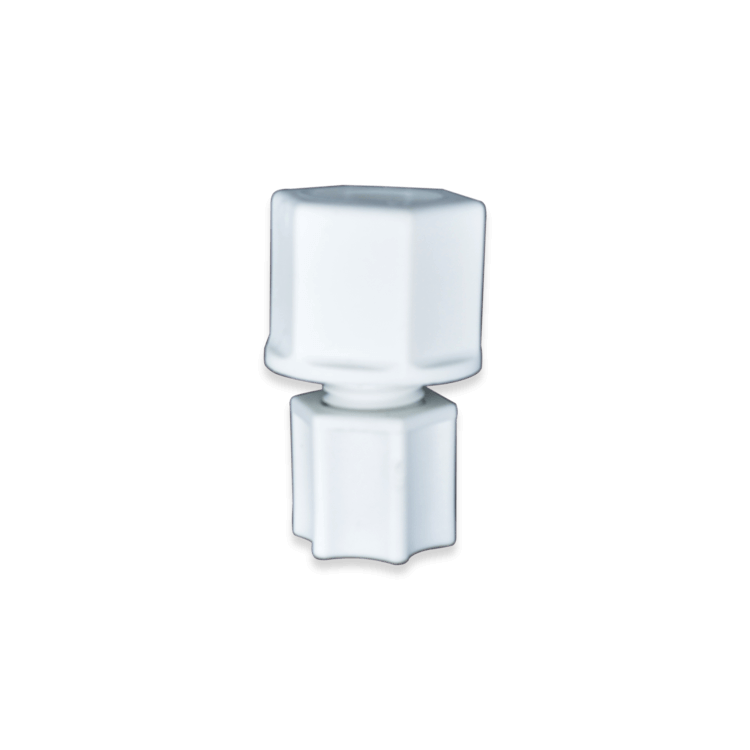

The CF Series Compression Female Pipe Threads, 1/8 inch to 1/2 inch, with compression fittings ranging from 1/4 inch to 5/8 inch tube connection without kinking attached tubing. Available in NSF approved Glass-Filled White Polypropylene, FDA and NSF approved Acetal (POM) for use with hot water applications, FDA and NSF approved Nylon and UV resistant FDA and NSF-rated PVDF. Provided with Poly gripper (except for 1/8 inch units) for us up to 220 psi.
| SKU | Description |
|---|---|
| CF-1212-AC-PG | 1/2 inch OD by 1/2 inch Female Connector Acetal Compression with Poly Gripper |
| CF-1212-NN-PG | 1/2 inch OD by 1/2 inch Female Connector Natural Nylon Compression with Poly Gripper |
| CF-1212-PG | 1/2 inch OD by 1/2 inch Female Connector Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-1212-PVDF-PG | 1/2 inch OD by 1/2 inch Female Connector PVDF Compression with Poly Gripper |
| CF-1238-AC-PG | 3/8 inch OD by 1/2 inch Female Connector Acetal Compression with Poly Gripper |
| CF-1238-GFPP-PG | 3/8 inch OD by 1/2 inch Female Connector Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-1238-K-PG | 3/8 inch OD by 1/2 inch Female Connector PVDF Compression with Poly Gripper |
| CF-1238-NN-PG | 3/8 inch OD by 1/2 inch Female Connector Natural Nylon Compression with Poly Gripper |
| CF-1258-AC-PG | 5/8 inch OD by 1/2 inch Female Connector Acetal Compression with Poly Gripper |
| CF-1258-GFPP-PG | 5/8 inch OD by 1/2 inch Female Connector Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-1258-PG | 5/8 inch OD by 1/2 inch Female Connector Natural Nylon Compression with Poly Gripper |
| CF-1258-PVDF-PG | 5/8 inch OD by 1/2 inch Female Connector PVDF Compression with Poly Gripper |
| CF-1414 | 1/4 inch OD by 1/4 inch Female Connector Polypropylene Compression |
| CF-1414-AC-PG | 1/4 inch OD by 1/4 inch Female Connector Acetal Compression with Poly Gripper |
| CF-1414-F257 | 1/4 inch OD by 1/4 inch Female Polypropylene Compression with thru hole |
| CF-1414-GFPP-PG | 1/4 inch OD by 1/4 inch Female Connector Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-1414-K | 1/4 inch OD by 1/4 inch Female Connector PVDF Compression |
| CF-1414-K-PG | 1/4 inch OD by 1/4 inch Female Connector PVDF Compression with Poly Gripper |
| CF-1414-NN-PG | 1/4 inch OD by 1/4 inch Female Connector Natural Nylon Compression with Poly Gripper |
| CF-1418-AC-PG | 1/4 inch OD by 1/8 inch Female Connector Acetal Compression with Poly Gripper |
| CF-1418-GFPP-PG | 1/4 inch OD by 1/8 inch Female Connector Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-1418-PG | 1/4 inch OD by 1/8 inch Female Connector Natural Nylon Compression with Poly Gripper |
| CF-1418-PVDF-PG | 1/4 inch OD by 1/8 inch Female Connector PVDF Compression with Poly Gripper |
| CF-1438-AC-PG | 3/8 inch OD by 1/4 inch Female Connector Acetal Compression with Poly Gripper |
| CF-1438-GFPP-PG | 3/8 inch OD by 1/4 inch Female Connector Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-1438-K | 3/8 inch OD by 1/4 inch Female Connector PVDF Compression |
| CF-1438-K-PG | 3/8 inch OD by 1/4 inch Female Connector PVDF Compression with Poly Gripper |
| CF-1438-NN-PG | 3/8 inch OD by 1/4 inch Female Connector Natural Nylon Compression with Poly Gripper |
| CF-14516-AC-PG | 5/16 OD by 1/4 inch Female Connector Acetal Compression with Poly Gripper |
| CF-14516-GFPP-PG | 5/16 OD by 1/4 inch Female Connector Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-14516-NN-PG | 5/16 OD by 1/4 inch Female Connector Natural Nylon Compression with Poly Gripper |
| CF-14516-PVDF-PG | 5/16 OD by 1/4 inch Female Connector PVDF Compression with Poly Gripper |
| CF-1814-AC-PG | 1/8 inch Female NPT by 1/4 inch OD Acetal Compression with Poly Gripper |
| CF-1814-GFPP-PG | 1/8 inch Female NPT by 1/4 inch OD Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-1814-K-PG | 1/8 inch Female NPT by 1/4 inch OD PVDF Compression with Poly Gripper |
| CF-1814-NN-PG | 1/8 inch Female NPT by 1/4 inch OD Natural Nylon Compression with Poly Gripper |
| CF-3812-AC-PG | 1/2 inch OD by 3/8 inch Female Acetal Compression with Poly Gripper |
| CF-3812-GFPP-PG | 1/2 inch OD by 3/8 inch Female Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-3812-K-PG | 1/2 inch OD by 3/8 inch Female PVDF Compression with Poly Gripper |
| CF-3812-NN-PG | 1/2 inch OD by 3/8 inch Female Natural Nylon Compression with Poly Gripper |
| CF-3838 | 3/8 inch OD by 3/8 inch Female Connector Compression |
| CF-3838-AC-PG | 3/8 inch OD by 3/8 inch Female Connector Acetal Compression with Poly Gripper |
| CF-3838-GFPP-PG | 3/8 inch OD by 3/8 inch Female Connector Glass-Filled Polypropylene Compression with Poly Gripper |
| CF-3838-K-PG | 3/8 inch OD by 3/8 inch Female Connector PVDF Compression with Poly Gripper |
| CF-3838-NN-PG | 3/8 inch OD by 3/8 inch Female Connector Natural Nylon Compression with Poly Gripper |
