Description

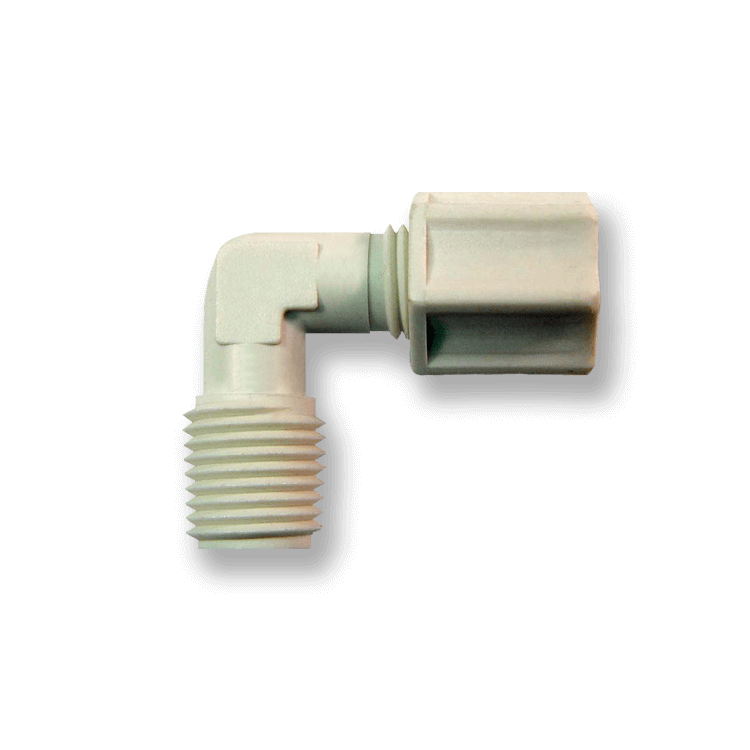

The CME Series are Male NPT Compression Fittings to an OD Elbow configuration. Use for Manifolds, Valves, Regulators, or mechanical instruments. They are molded of either Glass-Filled White polypropylene, NSF-approved FDA-approved Acetal for use with hot water applications, NSF-approved FDA-approved Nylon, or NSF-approved FDA-approved UV-resistant PVDF. Provided with a poly gripper for use up to 220 psi. 1/8-inch units do not have a poly gripper.
| SKU | Description |
|---|---|
| CME-1212-AC-PG | 1/2 inch MNPT by 1/2 inch OD Acetal Elbow with Poly Gripper |
| CME-1212-NN-PG | 1/2 inch MNPT by 1/2 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-1212-PG | 1/2 inch MNPT by 1/2 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-1212-PVDF-PG | 1/2 inch MNPT by 1/2 inch OD PVDF Elbow with Poly Gripper |
| CME-1258- AC PG | 1/2 inch MNPT by 5/8 inch OD Acetal Elbow with Poly Gripper |
| CME-1258-NN-PG | 1/2 inch MNPT by 5/8 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-1258-PG | 1/2 inch MNPT by 5/8 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-1258-PVDF PG | 1/2 inch MNPT by 5/8 inch OD PVDF Elbow with Poly Gripper |
| CME-1412-AC-PG | 1/4 inch MNPT by 1/2 inch OD Acetal Elbow with Poly Gripper |
| CME-1412-GFPP-PG | 1/4 inch MNPT by 1/2 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-1412-K-PG | 1/4 inch MNPT by 1/2 inch OD PVDF Elbow with Poly Gripper |
| CME-1412-NN-PG | 1/4 inch MNPT by 1/2 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-1414-AC-PG | 1/4 inch MNPT by 1/4 inch OD Acetal Elbow with Poly Gripper |
| CME-1414-GFPP-PG | 1/4 inch MNPT by 1/4 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-1414-K-PG | 1/4 inch MNPT by 1/4 inch OD PVDF Elbow with Poly Gripper |
| CME-1414-NN-PG | 1/4 inch MNPT by 1/4 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-1438-AC-PG | 1/4 inch MNPT by 3/8 inch OD Acetal Elbow with Poly Gripper |
| CME-1438-K | 1/4 inch MNPT by 3/8 inch OD PVDF Elbow |
| CME-1438-K-PG | 1/4 inch MNPT by 3/8 inch OD PVDF Elbow with Poly Gripper |
| CME-1438-NN-PG | 1/4 inch MNPT by 3/8 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-1438-PG | 1/4 inch MNPT by 3/8 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-14516AC--PG | 1/4 inch MNPT by 5/16 inch OD Acetal Elbow with Poly Gripper |
| CME-14516-K-PG | 1/4 inch MNPT by 5/16 inch OD PVDF Elbow with Poly Gripper |
| CME-14516-NN-PG | 1/4 inch MNPT by 5/16 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-14516-PG | 1/4 inch MNPT by 5/16 inch OD Glass Filled Polypropylene Elbow with Poly Gripper |
| CME-1814 | 1/8 inch MNPT by 1/4 inch OD Glass-Filled Polypropylene Elbow |
| CME-1814-AC-PG | 1/8 inch MNPT by 1/4 inch OD Acetal Elbow with Poly Gripper |
| CME-1814-K | 1/8 inch MNPT by 1/4 inch OD PVDF Elbow |
| CME-1814-NN-PG | 1/8 inch MNPT by 1/4 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-1814-PVDF-PG | 1/8 inch MNPT by 1/4 inch OD PVDF Elbow with Poly Gripper |
| CME-1818 | 1/8 inch MNPT by 1/8 inch OD Glass-Filled Polypropylene Elbow |
| CME-1818-AC | 1/8 inch MNPT by 1/8 inch OD Acetal Elbow |
| CME-1818-K | 1/8 inch MNPT by 1/8 inch OD PVDF Elbow |
| CME-1818-NN | 1/8 inch MNPT by 1/8 inch OD Natural Nylon Elbow |
| CME-3812-AC-PG | 3/8 inch MNPT by 1/2 inch OD Acetal Elbow with Poly Gripper |
| CME-3812-K-PG | 3/8 inch MNPT by 1/2 inch OD PVDF Elbow with Poly Gripper |
| CME-3812-NN-PG | 3/8 inch MNPT by 1/2 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-3812-PG | 3/8 inch MNPT by 1/2 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-3814-AC-PG | 3/8 inch MNPT by 1/4 inch OD Acetal Elbow with Poly Gripper |
| CME-3814-K-PG | 3/8 inch MNPT by 1/4 inch OD PVDF Elbow with Poly Gripper |
| CME-3814-NN-PG | 3/8 inch MNPT by 1/4 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-3814-PG | 3/8 inch MNPT by 1/4 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-3838-AC-PG | 3/8 inch MNPT by 3/8 inch OD Acetal Elbow with Poly Gripper |
| CME-3838-K-PG | 3/8 inch MNPT by 3/8 inch OD PVDF Elbow with Poly Gripper |
| CME-3838-NN-PG | 3/8 inch MNPT by 3/8 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-3838-PG | 3/8 inch MNPT by 3/8 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-38516-AC-PG | 3/8 inch MNPT by 5/16 inch OD Acetal Elbow with Poly Gripper |
| CME-38516-K-PG | 3/8 inch MNPT by 5/16 inch OD PVDF Elbow with Poly Gripper |
| CME-38516-NN-PG | 3/8 inch MNPT by 5/16 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-38516-PG | 3/8 inch MNPT by 5/16 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-3858-AC-PG | 3/8 inch MNPT by 5/8 inch OD Acetal Elbow with Poly Gripper |
| CME-3858-GFPP-PG | 3/8 inch MNPT by 5/8 inch OD Glass-Filled Polypropylene Elbow with Poly Gripper |
| CME-3858-NN-PG | 3/8 inch MNPT by 5/8 inch OD Natural Nylon Elbow with Poly Gripper |
| CME-3858-PVDF-PG | 3/8 inch MNPT by 5/8 inch OD PVDF Elbow with Poly Gripper |
