Description

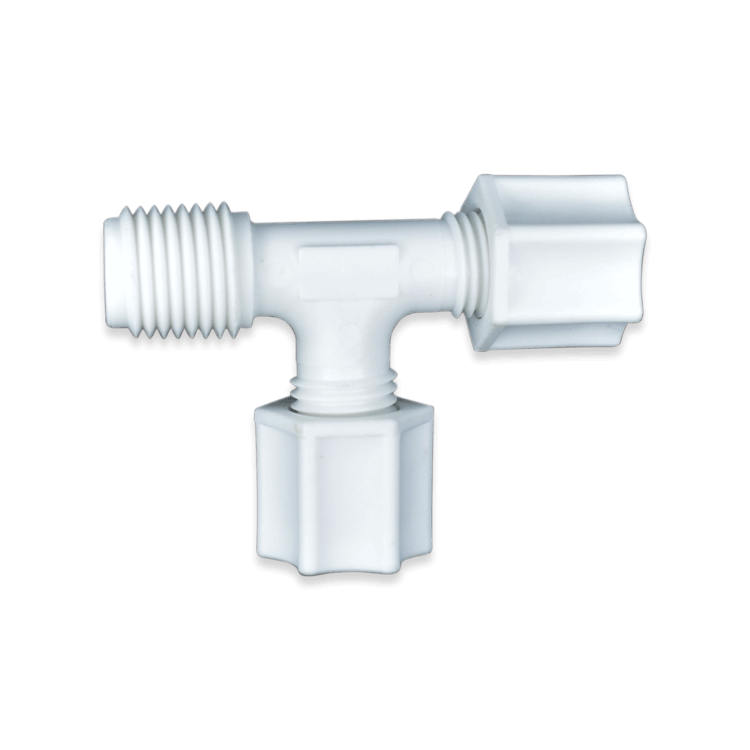

The CMR Series Male Thread runs with a compression connection on the branch. Male pipe threads are 1/8 inch to 3/4 inch. Compression Branch allows tubing connections of 14 inches to 7/8 inches without kinking attached tubing. Available in NSF approved Glass-Filled White Polypropylene, FDA and NSF approved Acetal (POM) for use with hot water applications, FDA and NSF approved Nylon and UV resistant FDA and NSF-rated PVDF. Provided with Poly gripper (except for 1/8 inch units) for us up to 220 psi.
| SKU | Description |
|---|---|
| CMR-1212-AC-PG | 1/2 inch Male NPT 1/2 inch OD Run Acetal with Poly Gripper |
| CMR-1212-GFPP-PG | 1/2 inch Male NPT 1/2 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-1212-NPP-PG | 1/2 inch Male NPT 1/2 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-1212-PG | 1/2 inch Male NPT 1/2 inch OD Run with Poly Gripper |
| CMR-1234-AC-PG | 1/2 inch Male NPT 3/4 inch OD Run Acetal with Poly Gripper |
| CMR-1234-GFPP-PG | 1/2 inch Male NPT 3/4 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-1234-NPP-PG | 1/2 inch Male NPT 3/4 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-1234-PG | 1/2 inch Male NPT 3/4 inch OD Run with Poly Gripper |
| CMR-1258-AC-PG | 1/2 inch Male NPT 5/8 inch OD Run Acetal with Poly Gripper |
| CMR-1258-GFPP-PG | 1/2 inch Male NPT 5/8 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-1258-NPP-PG | 1/2 inch Male NPT 5/8 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-1258-PG | 1/2 inch Male NPT 5/8 inch OD Run with Poly Gripper |
| CMR-1414-AC-PG | 1/4 inch Male NPT 1/4 inch OD Run Acetal with Poly Gripper |
| CMR-1414-K-PG | 1/4 inch Male NPT 1/4 inch OD Run PVDF with Poly Gripper |
| CMR-1414-NPP-PG | 1/4 inch Male NPT 1/4 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-1414-PG | 1/4 inch Male NPT 1/4 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-1438-AC-PG | 1/4 inch Male NPT 3/8 inch OD Run Acetal with Poly Gripper |
| CMR-1438-K-PG | 1/4 inch Male NPT 3/8 inch OD Run PVDF with Poly Gripper |
| CMR-1438-NPP-PG | 1/4 inch Male NPT 3/8 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-1438-PG | 1/4 inch Male NPT 3/8 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-14516-AC-PG | 1/4 inch Male NPT 5/16 inch OD Run Acetal with Poly Gripper |
| CMR-14516-NPP-PG | 1/4 inch Male NPT 5/16 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-14516-PG | 1/4 inch Male NPT 5/16 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-14516-PVDF-PG | 1/4 inch Male NPT 5/16 inch OD Run PVDF with Poly Gripper |
| CMR-1814-AC-PG | 1/8 inch Male NPT 1/4 inch OD Run Acetal with Poly Gripper |
| CMR-1814-NPP-PG | 1/8 inch Male NPT 1/4 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-1814-PG | 1/8 inch Male NPT 1/4 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-1814-PVDF-PG | 1/8 inch Male NPT 1/4 inch OD Run PVDF with Poly Gripper |
| CMR-3434-AC-PG | 3/4 inch Male NPT 3/4 inch OD Run Acetal with Poly Gripper |
| CMR-3434-NPP-PG | 3/4 inch Male NPT 3/4 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-3434-PG | 3/4 inch Male NPT 3/4 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-3434-PVDF-PG | 3/4 inch Male NPT 3/4 inch OD Run PVDF with Poly Gripper |
| CMR-3478-AC-PG | 3/4 inch Male NPT 7/8 inch OD Run Acetal with Poly Gripper |
| CMR-3478-NPP-PG | 3/4 inch Male NPT 7/8 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-3478-PG | 3/4 inch Male NPT 7/8 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-3478-PVDF-PG | 3/4 inch Male NPT 7/8 inch OD Run PVDF with Poly Gripper |
| CMR-3812-AC-PG | 3/8 inch Male NPT 1/2 inch OD Run Acetal with Poly Gripper |
| CMR-3812-GFPP-PG | 3/8 inch Male NPT 1/2 inch OD Run Glass Filled Polypropylene with Poly Gripper |
| CMR-3812-PG | 3/8 inch Male NPT 1/2 inch OD Run Natural Polypropylene with Poly Gripper |
| CMR-3812-PVDF-PG | 3/8 inch Male NPT 1/2 inch OD Run PVDF with Poly Gripper |
| CMR-3838-AC-PG | 3/8 inch Male NPT 3/8 inch OD Run Acetal with Poly Gripper |
| CMR-3838-GFPP-PG | 3/8 inch Male NPT 3/8 inch OD Run Glass Filled Polypropylene NP |
| CMR-3838-K-PG | 3/8 inch Male NPT 3/8 inch OD Run PVDF with Poly Gripper |
| CMR-3838-NPP-PG | 3/8 inch Male NPT 3/8 inch OD Run Natural Polypropylene with Poly Gripper |
