Description

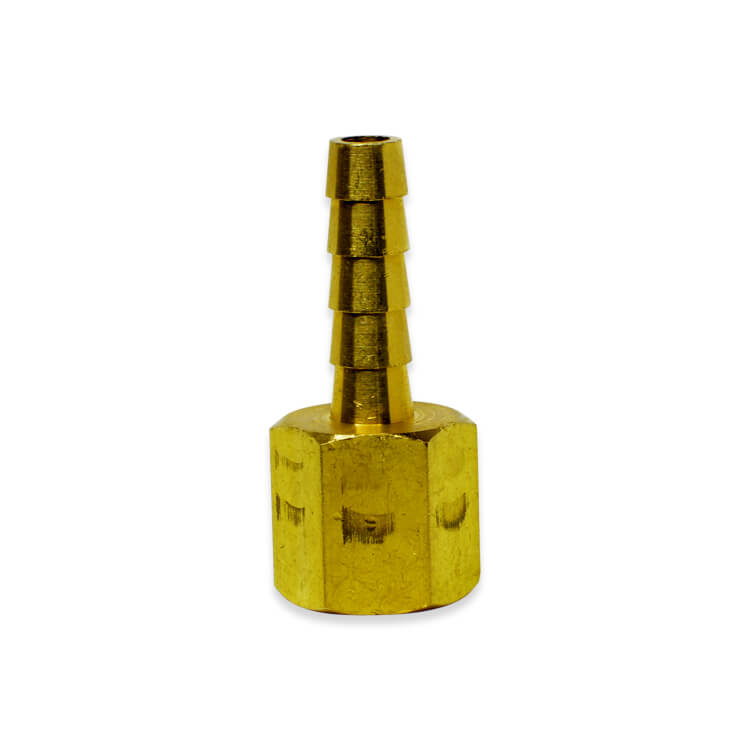

The BHFA Series is a Brass multi-barbed rigid female barstock adapter. It has Female NPT threads on the opposite side of the barbed end. Available FNPT thread sizes are 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, and 3/4 inch. Available barb sizes range from 1/8 inch to 1 inch. Flow can be equal or reduced. The temperature range is -40˚ F to 160˚ F and the working pressure is 150 psi.
| SKU | Description |
|---|---|
| BHFA-2F2B | 1/8 inch FNPT by 1/8 inch Brass Multi-Barbed Adapter |
| BHFA-2F3B | 1/8 inch FNPT by 3/16 inch Brass Multi-Barbed Adapter |
| BHFA-2F4B | 1/8 inch FNPT by 1/4 inch Brass Multi-Barbed Adapter |
| BHFA-2F5B | 1/8 inch FNPT by 5/16 inch Brass Multi-Barbed Adapter |
| BHFA-2F6B | 1/8 inch FNPT by 3/8 inch Brass Multi-Barbed Adapter |
| BHFA-4F2B | 1/4 inch FNPT by 1/8 inch Brass Multi-Barbed Adapter |
| BHFA-4F3B | 1/4 inch FNPT by 3/16 inch Brass Multi-Barbed Adapter |
| BHFA-4F4B | 1/4 inch FNPT by 1/4 inch Brass Multi-Barbed Adapter |
| BHFA-4F5B | 1/4 inch FNPT by 5/16 inch Brass Multi-Barbed Adapter |
| BHFA-4F6B | 1/4 inch FNPT by 3/8 inch Brass Multi-Barbed Adapter |
| BHFA-4F8B | 1/4 inch FNPT by 1/2 inch Brass Multi-Barbed Adapter |
| BHFA-6F4B | 3/8 inch FNPT by 1/4 inch Brass Multi-Barbed Adapter |
| BHFA-6F5B | 3/8 inch FNPT by 5/16 inch Brass Multi-Barbed Adapter |
| BHFA-6F6B | 3/8 inch FNPT by 3/8 inch Brass Multi-Barbed Adapter |
| BHFA-6F8B | 3/8 inch FNPT by 1/2 inch Brass Multi-Barbed Adapter |
| BHFA-8F6B | 1/2 inch FNPT by 3/8 inch Brass Multi-Barbed Adapter |
| BHFA-8F8B | 1/2 inch FNPT by 1/2 inch Brass Multi-Barbed Adapter |
