Description

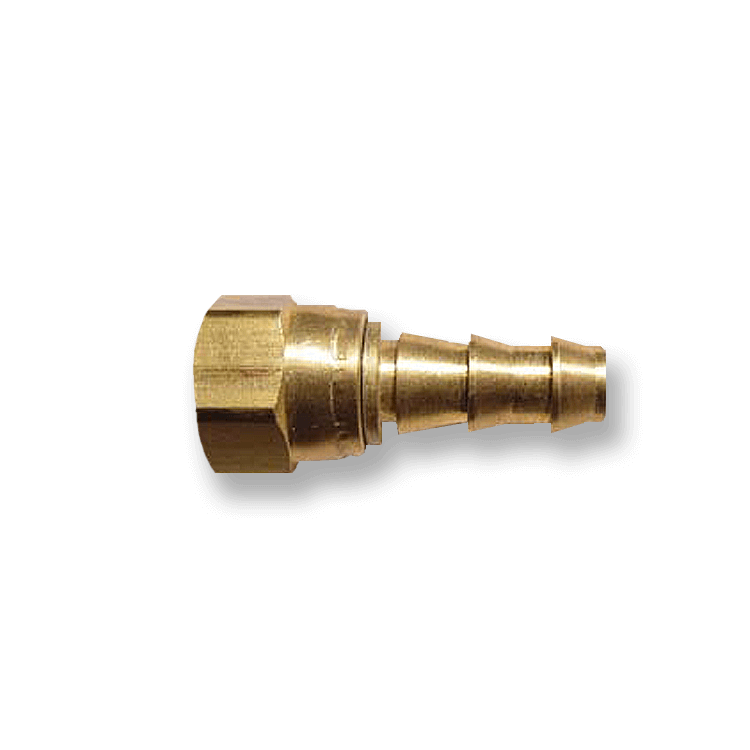

The SFWS Series is a female Brass multi-barb Swivel adapter with a gasket. It has female NPT threads to a hose barb attachment. The swivel has a full 360° rotation. The temperature range for this swivel is -40° F to 160° F at 150 psi.

***This swivel is not recommended for water because of the fiber gasket. Air only.***




SKUDescription
SFWS-2F4B 1/8 FNPT by 1/4 Barb Brass Swivel
SFWS-4F4B 1/4 FNPT by 1/4 Barb Brass Swivel
SFWS-4F5B 1/4 FNPT by 5/16 Barb Brass Swivel
SFWS-4F6B 1/4 FNPT by 3/8 Barb Brass Swivel
SFWS-6F4B 3/8 FNPT by 1/4 Barb Brass Swivel
SFWS-6F6B 3/8 FNPT by 3/8 Barb Brass Swivel
SFWS-6F8B 3/8 FNPT by 1/2 Barb Brass Swivel
SFWS-8F6B 1/2 FNPT by 3/8 Barb Brass Swivel
SFWS-8F8B 1/2 FNPT by 1/2 Barb Brass Swivel
SFWS-12F8B3/4 FNPT by 1/2 Barb Brass Swivel
SFWS-12F10B3/4 FNPT by 5/8 Barb Brass Swivel
