Description

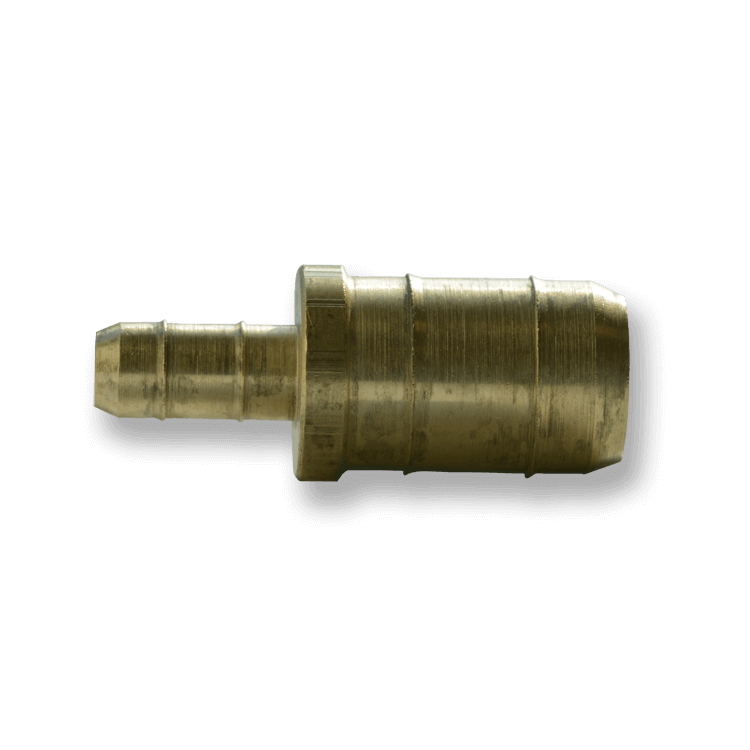

The DC Series Brass bite-style multi-barb male connector comes in barb sizes of 5/32 inch, 1/4 inch, 3/8 inch, and 1/2 inch for ID tube sizes of .096 inch, .170 inch, .250 inch, and .375 inch. Also available in a reducer connector. The barb sizes for the reducer connector are 1/4 inch by 5/32 inch, 1/4 inch by 3/8 inch, 1/4 inch by 1/2 inch, and 3/8 inch by 1/2 inch for ID tube sizes of .096 inch, .170 inch, .250 inch, and .375 inch. Working temperatures are from -65° F to 90° F. The maximum working pressure is 150 psi. Made for Polyethylene tubing.




SKUDescription
DC-3323/32 inch Bite-Style Multi-Barbed Brass Connector
DC-2501/4 inch Bite-Style Multi-Barbed Brass Connector
DC-3753/8 inch Bite-Style Multi-Barbed Brass Connector
DC-170.170 inch Bite-Style Multi-Barbed Brass Connector
DC-375250.375 inch by .250 inch Bite-Style Multi-Barbed Brass Connector
DC-375170.375 inch by .170 inch Bite-Style Multi-Barbed Brass Connector
DC-250170.250 inch by .170 inch Bite-Style Multi-Barbed Brass Connector
DC-170332.170 inch by 3/32 inch Bite-Style Multi-Barbed Brass Connector
