Description

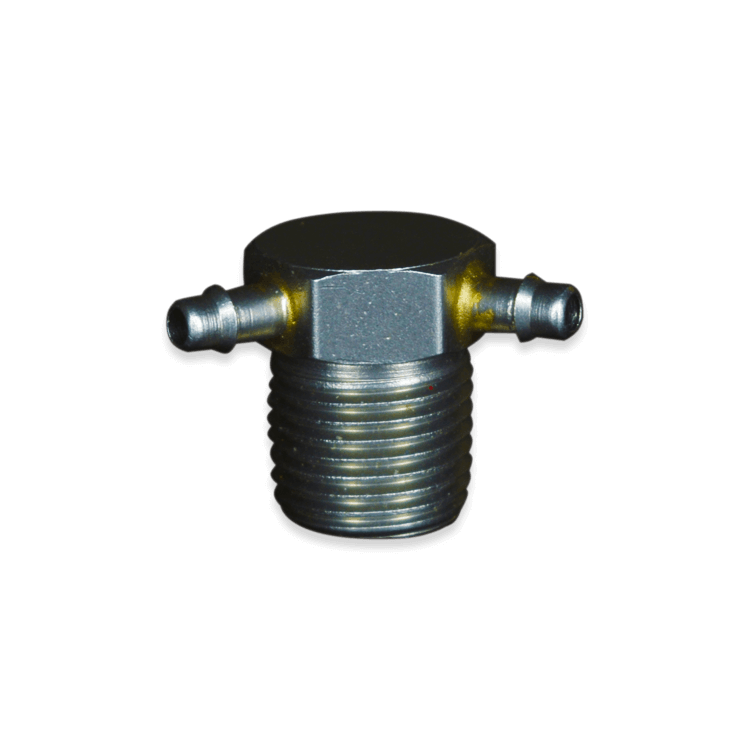

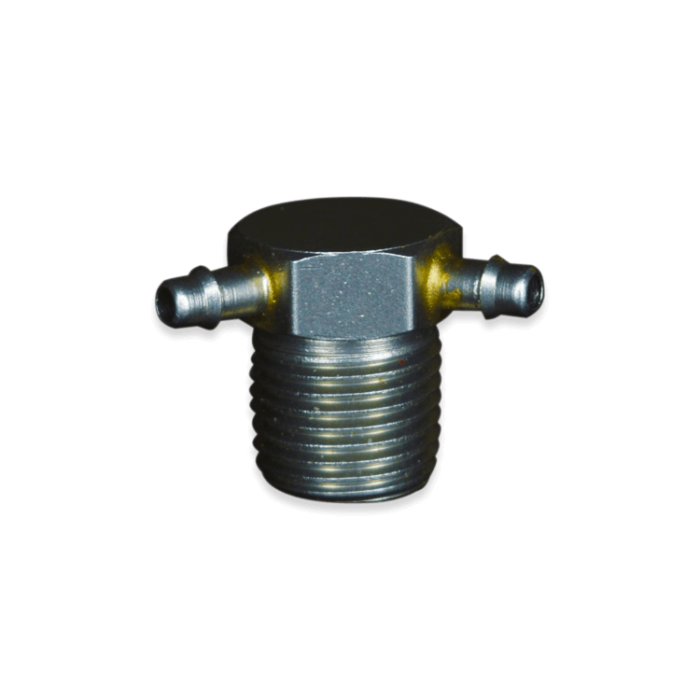

The MEV Series are brass MNPT thread with bite-style barbs at 60 degree to the flats. These elbows come in 3 different sizes of the angle between elbows – 60°, 90° and 120°. This series comes in MNPT thread sizes ranging from 1/8 inch to 3/8 inch and barb sizes ranging from 1/16 inch to 1/2 inch. Also available in Nickel-Plated Brass and 303 Stainless Steel.
| SKU | Description |
|---|---|
| MEV60-2M1B | 1/8 inch MNPT by 1/16 inch Barb 60° Brass Elbow |
| MEV60-2M2B | 1/8 inch MNPT by 1/8 inch Barb 60° Brass Elbow |
| MEV60-2M332B | 1/8 inch MNPT by 3/32 inch Barb 60° Brass Elbow |
| MEV60-2M3B | 1/8 inch MNPT by 3/16 inch Barb 60° Brass Elbow |
| MEV60-2M4B | 1/8 inch MNPT by 1/4 inch Barb 60° Brass Elbow |
| MEV60-2M532B | 1/8 inch MNPT by 5/32 inch Barb 60° Brass Elbow |
| MEV60-2M564B | 1/8 inch MNPT by 5/64 inch Barb 60° Brass Elbow |
| MEV60-2M5B | 1/8 inch MNPT by 5/16 inch Barb 60° Brass Elbow |
| MEV60-2M6B | 1/8 inch MNPT by 3/8 inch Barb 60° Brass Elbow |
| MEV60-2M732B | 1/8 inch MNPT by 7/32 inch Barb 60° Brass Elbow |
| MEV60-2M8B | 1/8 inch MNPT by 1/2 inch Barb 60° Brass Elbow |
| MEV60-4M170B | 1/4 inch MNPT by .170 inch Barb 60° Brass Elbow |
| MEV60-4M1B | 1/4 inch MNPT by 1/16 inch Barb 60° Brass Elbow |
| MEV60-4M2B | 1/4 inch MNPT by 1/8 inch Barb 60° Brass Elbow |
| MEV60-4M332B | 1/4 inch MNPT by 3/32 inch Barb 60° Brass Elbow |
| MEV60-4M3B | 1/4 inch MNPT by 3/16 inch Barb 60° Brass Elbow |
| MEV60-4M4B | 1/4 inch MNPT by1/4 inch Barb 60° Brass Elbow |
| MEV60-4M532B | 1/4 inch MNPT by 5/32 inch Barb 60° Brass Elbow |
| MEV60-4M564B | 1/4 inch MNPT by 5/64 inch Barb 60° Brass Elbow |
| MEV60-4M5B | 1/4 inch MNPT by 5/16 inch Barb 60° Brass Elbow |
| MEV60-4M6B | 1/4 inch MNPT by 3/8 inch Barb 60° Brass Elbow |
| MEV60-4M732B | 1/4 inch MNPT by 7/32 inch Barb 60° Brass Elbow |
| MEV60-4M8B | 1/4 inch MNPT by 1/2 inch Barb 60° Brass Elbow |
| MEV60-6M170B | 3/8 inch MNPT by .170 Barb 60° Brass Elbow |
| MEV60-6M1B | 3/8 inch MNPT by 1/16 inch Barb 60° Brass Elbow |
| MEV60-6M2B | 3/8 inch MNPT by 1/8 inch Barb 60° Brass Elbow |
| MEV60-6M332B | 3/8 inch MNPT by 3/32 inch Barb 60° Brass Elbow |
| MEV60-6M3B | 3/8 inch MNPT by 3/16 inch Barb 60° Brass Elbow |
| MEV60-6M4B | 3/8 inch MNPT by 1/4 inch Barb 60° Brass Elbow |
| MEV60-6M532B | 3/8 inch MNPT by 5/32 inch Barb 60° Brass Elbow |
| MEV60-6M564B | 3/8 inch MNPT by 5/64 inch Barb 60° Brass Elbow |
| MEV60-6M5B | 3/8 inch MNPT by 5/16 inch Barb 60° Brass Elbow |
| MEV60-6M6B | 3/8 inch MNPT by 3/8 inch Barb 60° Brass Elbow |
| MEV60-6M732B | 3/8 inch MNPT by 7/32 inch Barb 60° Brass Elbow |
| MEV60-6M8B | 3/8 inch MNPT by 1/2 inch Barb 60° Brass Elbow |
| MEV90-2M170B | 1/8 inch MNPT by .170 Barb 90° Brass Elbow |
| MEV90-2M1B | 1/8 inch MNPT by 1/16 inch Barb 90° Brass Elbow |
| MEV90-2M2B | 1/8 inch MNPT by 1/8 inch Barb 90° Brass Elbow |
| MEV90-2M332B | 1/8 inch MNPT by 3/32 inch Barb 90° Brass Elbow |
| MEV90-2M3B | 1/8 inch MNPT by 3/16 inch Barb 90° Brass Elbow |
| MEV90-2M4B | 1/8 inch MNPT by 1/4 inch Barb 90° Brass Elbow |
| MEV90-2M532B | 1/8 inch MNPT by 5/32 inch Barb 90° Brass Elbow |
| MEV90-2M564B | 1/8 inch MNPT by 5/16 inch Barb 90° Brass Elbow |
| MEV90-2M5B | 1/8 inch MNPT by 5/64 inch Barb 90° Brass Elbow |
| MEV90-2M6B | 1/8 inch MNPT by 3/8 inch Barb 90° Brass Elbow |
| MEV90-2M732B | 1/8 inch MNPT by 7/32 inch Barb 90° Brass Elbow |
| MEV90-2M8B | 1/8 inch MNPT by 1/2 inch Barb 90° Brass Elbow |
| MEV90-4M170B | 1/4 inch MNPT by .170 inch Barb 90° Brass Elbow |
| MEV90-4M1B | 1/4 inch MNPT by 1/16 inch Barb 90° Brass Elbow |
| MEV90-4M2B | 1/4 inch MNPT by 1/8 inch Barb 90° Brass Elbow |
| MEV90-4M332B | 1/4 inch MNPT by 3/32 inch Barb 90° Brass Elbow |
| MEV90-4M3B | 1/4 inch MNPT by 3/16 inch Barb 90° Brass Elbow |
| MEV90-4M4B | 1/4 inch MNPT by 1/4 inch Barb 90° Brass Elbow |
| MEV90-4M532B | 1/4 inch MNPT by 5/32 inch Barb 90° Brass Elbow |
| MEV90-4M564B | 1/4 inch MNPT by 5/64 inch Barb 90° Brass Elbow |
| MEV90-4M5B | 1/4 inch MNPT by 5/16 inch Barb 90° Brass Elbow |
| MEV90-4M6B | 1/4 inch MNPT by 3/8 inch Barb 90° Brass Elbow |
| MEV90-4M732B | 1/4 inch MNPT by 7/32 inch Barb 90° Brass Elbow |
| MEV90-4M8B | 1/4 inch MNPT by 1/2 inch Barb 90° Brass Elbow |
| MEV90-6M170B | 3/8 inch MNPT by .170 Barb 90° Brass Elbow |
| MEV90-6M1B | 3/8 inch MNPT by 1/16 inch Barb 90° Brass Elbow |
| MEV90-6M2B | 3/8 inch MNPT by 1/8 inch Barb 90° Brass Elbow |
| MEV90-6M332B | 3/8 inch MNPT by 3/32 inch Barb 90° Brass Elbow |
| MEV90-6M3B | 3/8 inch MNPT by 3/16 inch Barb 90° Brass Elbow |
| MEV90-6M4B | 3/8 inch MNPT by 1/4 inch Barb 90° Brass Elbow |
| MEV90-6M532B | 3/8 inch MNPT by 5/32 inch Barb 90° Brass Elbow |
| MEV90-6M564B | 3/8 inch MNPT by 5/64 inch Barb 90° Brass Elbow |
| MEV90-6M5B | 3/8 inch MNPT by 5/16 inch Barb 90° Brass Elbow |
| MEV90-6M6B | 3/8 inch MNPT by 3/8 inch Barb 90° Brass Elbow |
| MEV90-6M732B | 3/8 inch MNPT by 7/32 inch Barb 90° Brass Elbow |
| MEV90-6M8B | 3/8 inch MNPT by 1/2 inch Barb 90° Brass Elbow |
| MEV120-2M170B | 1/8 inch MNPT by .170 inch Barb 120° Brass Elbow |
| MEV120-2M1B | 1/8 inch MNPT by 1/16 inch Barb 120° Brass Elbow |
| MEV120-2M2B | 1/8 inch MNPT by 1/8 inch Barb 120° Brass Elbow |
| MEV120-2M332B | 1/8 inch MNPT by 3/32 inch Barb 120° Brass Elbow |
| MEV120-2M3B | 1/8 inch MNPT by 3/16 inch Barb 120° Brass Elbow |
| MEV120-2M4B | 1/8 inch MNPT by 1/4 inch Barb 120° Brass Elbow |
| MEV120-2M532B | 1/8 inch MNPT by 5/32 inch Barb 120° Brass Elbow |
| MEV120-2M564B | 1/8 inch MNPT by 5/64 inch Barb 120° Brass Elbow |
| MEV120-2M5B | 1/8 inch MNPT by 5/16 inch Barb 120° Brass Elbow |
| MEV120-2M6B | 1/8 inch MNPT by 3/8 inch Barb 120° Brass Elbow |
| MEV120-2M732B | 1/8 inch MNPT by 7/32 inch Barb 120° Brass Elbow |
| MEV120-2M8B | 1/8 inch MNPT by 1/2 inch Barb 120° Brass Elbow |
| MEV120-4M170B | 1/4 inch MNPT by .170 inch Barb 120° Brass Elbow |
| MEV120-4M1B | 1/4 inch MNPT by 1/16 inch Barb 120° Brass Elbow |
| MEV120-4M2B | 1/4 inch MNPT by 1/8 inch Barb 120° Brass Elbow |
| MEV120-4M332B | 1/4 inch MNPT by 3/32 inch Barb 120° Brass Elbow |
| MEV120-4M3B | 1/4 inch MNPT by 3/16 inch Barb 120° Brass Elbow |
| MEV120-4M4B | 1/4 inch MNPT by 1/4 inch Barb 120° Brass Elbow |
| MEV120-4M532B | 1/4 inch MNPT by 5/32 inch Barb 120° Brass Elbow |
| MEV120-4M564B | 1/4 inch MNPT by 5/64 inch Barb 120° Brass Elbow |
| MEV120-4M5B | 1/4 inch MNPT by 5/16 inch Barb 120° Brass Elbow |
| MEV120-4M6B | 1/4 inch MNPT by 3/8 inch Barb 120° Brass Elbow |
| MEV120-4M732B | 1/4 inch MNPT by 7/32 inch Barb 120° Brass Elbow |
| MEV120-4M8B | 1/4 inch MNPT by 1/2 inch Barb 120° Brass Elbow |
| MEV120-6M170B | 3/8 inch MNPT by .170 inch Barb 120° Brass Elbow |
| MEV120-6M1B | 3/8 inch MNPT by 1/16 inch Barb 120° Brass Elbow |
| MEV120-6M2B | 3/8 inch MNPT by 1/8 inch Barb 120° Brass Elbow |
| MEV120-6M332B | 3/8 inch MNPT by 3/32 inch Barb 120° Brass Elbow |
| MEV120-6M3B | 3/8 inch MNPT by 3/16 inch Barb 120° Brass Elbow |
| MEV120-6M4B | 3/8 inch MNPT by 1/4 inch Barb 120° Brass Elbow |
| MEV120-6M532B | 3/8 inch MNPT by 5/32 inch Barb 120° Brass Elbow |
| MEV120-6M564B | 3/8 inch MNPT by 5/64 inch Barb 120° Brass Elbow |
| MEV120-6M5B | 3/8 inch MNPT by 5/16 inch Barb 120° Brass Elbow |
| MEV120-6M6B | 3/8 inch MNPT by 3/8 inch Barb 120° Brass Elbow |
| MEV120-6M732B | 3/8 inch MNPT by 7/32 inch Barb 120° Brass Elbow |
| MEV120-6M8B | 3/8 inch MNPT by 1/2 inch Barb 120° Brass Elbow |
